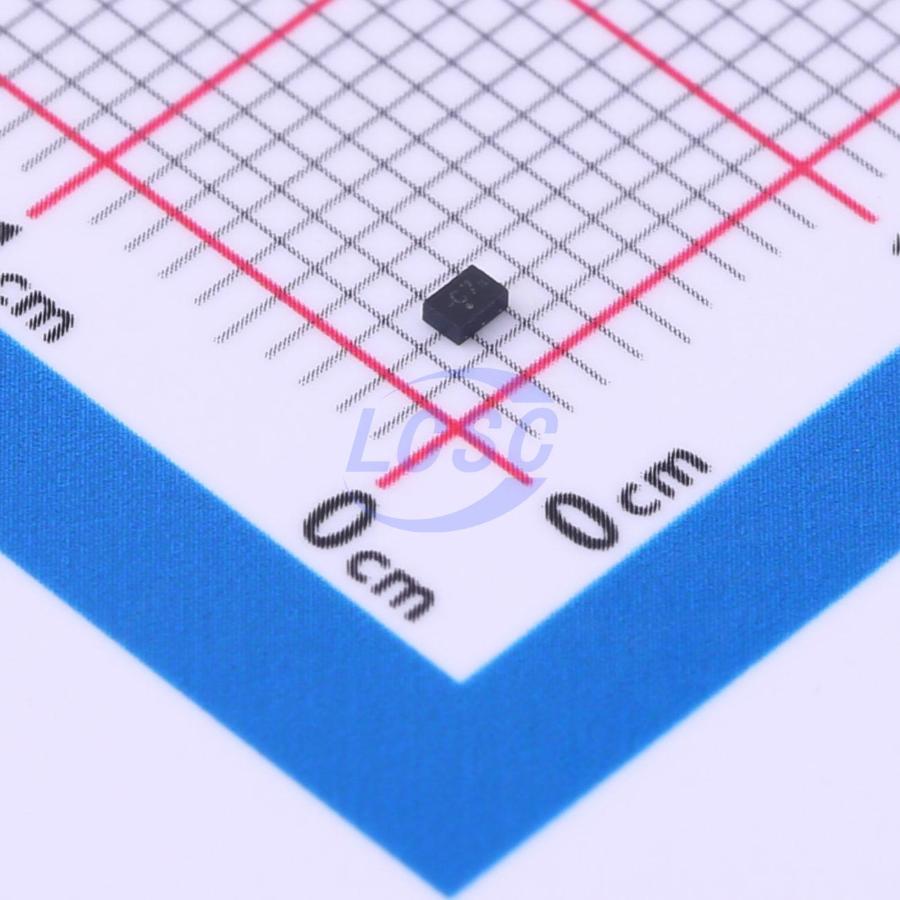

SN74LVC2G17DRYR

This dual Schmitt-Trigger buffer is designed for 1.65 - V to 5.5 - V CC operation. The SN74LVC2G17 device contains two buffers and performs the Boolean function Y = A. The device functions as two independent buffers, but because of Schmitt action, it may have different input threshold levels for positive - going (VT+) and negative - going (VT-) signals. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial - power - down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• AV Receivers
• Audio Docks: Portable
• Blu - ray Players and Home Theater
• MP3 Players/Recorders
• Personal Digital Assistants (PDAs)
• Power: Telecom/Server AC/DC Supply
• Single Controller
• Analog and Digital Solid State Drives (SSDs)
• Client and Enterprise TVs: LCD/Digital and High - Definition (HDTVs)
• Tablets
• Enterprise Video Analytics
• Server
• Wireless Headsets, Keyboards, and Mice

Key features

• Schmitt - Trigger inputs provide hysteresis
• Available in the Texas Instruments NanoFree™ Package
• Supports 5 - V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 5.4 ns at 3.3 V
• Low Power Consumption, 10 - μA Max ICC
• ±24 - mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
• Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃
• Ioff Supports Live Insertion, Partial - Power - Down Mode Operation and Back - Drive Protection
• Latch - Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 2000 - V Human - Body Model 1000 - V Charged - Device Model
