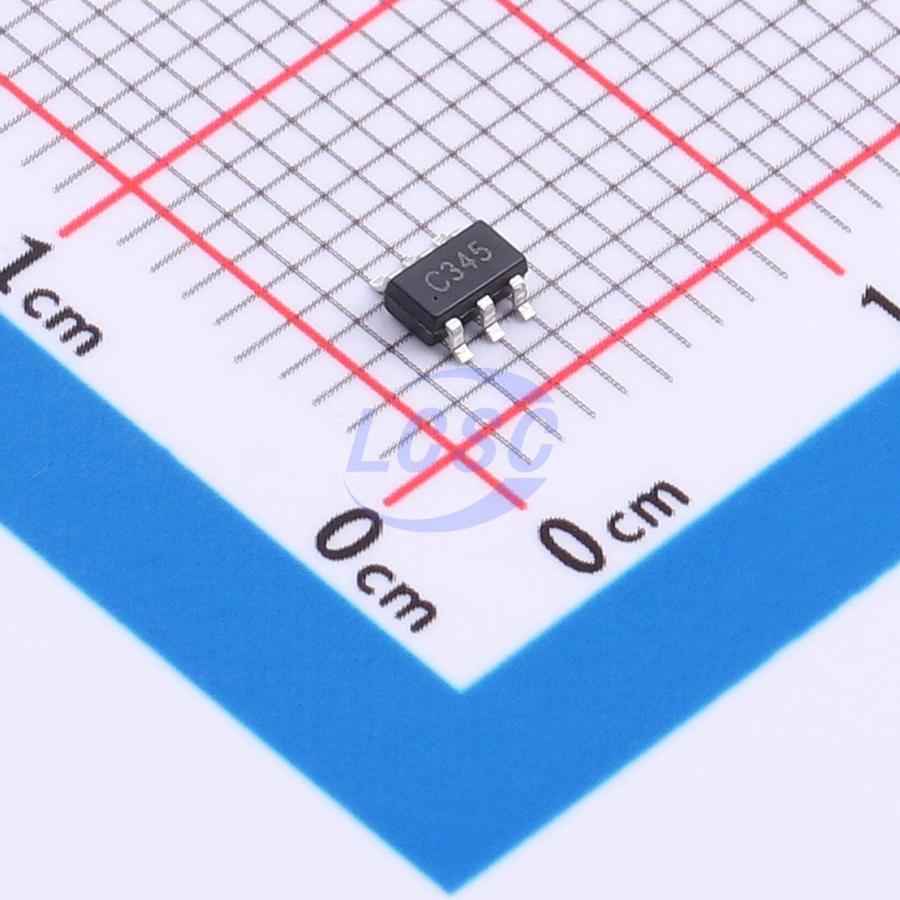

SN74LVC2G34DBVR-TP
1.65V~5.5V 1 2 4.1ns@3.3V SOT-23-6 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-6ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC2G34DBVR-TP
- Store part #
- C49374610
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,910 in stock
#C49374610
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.02 | ₹60.20 |
| 100+ | ₹4.75 | ₹475.00 |
| 300+ | ₹4.13 | ₹1,239.00 |
| 3,000+ | ₹3.65 | ₹10,950.00 |
| 6,000+ | ₹3.28 | ₹19,680.00 |
| 9,000+ | ₹3.08 | ₹27,720.00 |
10 × ₹6.02
₹60.20
excl. GST
₹71.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC2G34DBVR-TP
₹60.20 for 10 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 4.1ns@3.3V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Overview
SN74LVC2G34DBVR-TP is a dual buffer with the function Y = A. The device features a built-in power-off protection circuit to prevent damage during power-down conditions.
Applications
- AV Receivers
- Audio Docking Stations
- Blu-ray Players & Home Theater
- Embedded PCs
- Personal Digital Assistants
- Power Supplies
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Input voltage tolerance up to 5.5V
- I<sub>OFF</sub> supports partial power-down mode
- Low power consumption
- Maximum propagation delay of 4.1 ns at 3.3V
- ESD protection exceeds JESD 22: HBM 2000V, MM 200V, CDM 1000V
