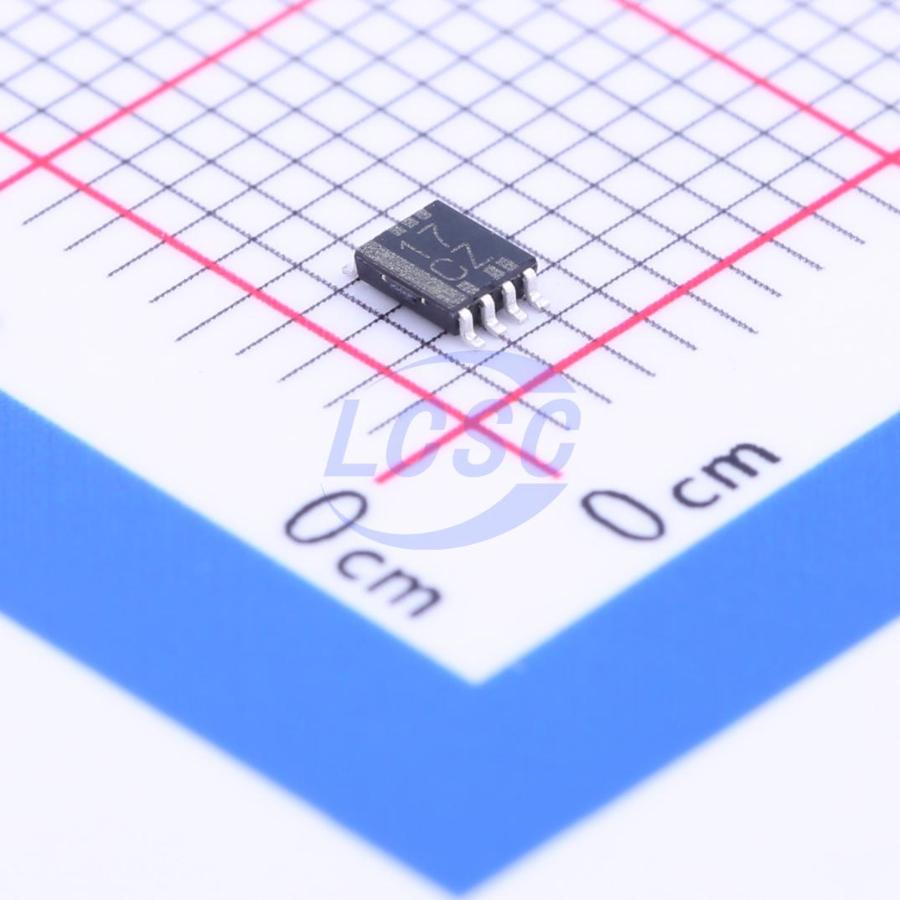

SN74LVC3G17DCUR

Schmitt trigger 1.65V~5.5V 3 5.4ns@3.3V,50pF VSSOP-8-0.5mm Buffers, Drivers, Receivers, Transceivers RoHS

VSSOP-8-0.5mmROHS3 CompliantActive

Triple Schmitt-Trigger Buffer

Manufacturer: TI
Manufacturer part #: SN74LVC3G17DCUR
Store part #: C68245
Package / case: VSSOP-8-0.5mm
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,349 in stock

#C68245

Stock & price checked 38 h ago

Quantity	Unit price	Pack price
1+	₹58.45	₹58.45
10+	₹45.19	₹451.90
30+	₹39.54	₹1,186.20
100+	₹32.37	₹3,237.00
500+	₹29.33	₹14,665.00
1,000+	₹27.39	₹27,390.00

Quantity (min 1)

1 × ₹58.45

₹58.45

excl. GST

₹68.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC3G17DCUR

₹58.45 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Type: Push-pull
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Function: Power-off isolation;Hot-swap support
Current - Output High(IOH): 32mA
Series: 74LVC
Current - Output Low(IOL): 32mA
Channel Type: Unidirectional
Number of Elements: 3
Propagation Delay: 5.4ns@3.3V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.034 g

Overview

This triple Schmitt-trigger buffer is designed for 1.65-V to 5.5 V CC operation. The SN74LVC3G17 device contains three buffers and performs the Boolean function Y = A. The device functions as three independent buffers but, because of Schmitt action, it may have different input threshold levels for positive-going (V T+) and negative-going (V T-) signals. This device is fully specified for partial-power-down applications using I off. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Applications

AV Receivers Audio Docks: Portable
Blu-ray Players and Home Theater MP3 Players/Recorders
Personal Digital Assistants (PDAs) Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
Solid State Drives (SSDs): Client and Enterprise
TVs: LCD/Digital and High-Definition (HDTVs) Tablets: Enterprise
Video Analytics: Server
Wireless Headsets, Keyboards, and Mice

Key features

Available in the Texas Instruments NanoFree Package
Supports 5 - V CC Operation
Inputs Accept Voltages to 5.5 V
Maximum t pd of 5.4 ns at 3.3 V
Low Power Consumption, 10 - μA Maximum ICC
±24 - mA Output Drive at 3.3 V
Typical V OL P (Output Ground Bounce) < 0.8 V at V CC = 3.3 V, T A = 25℃
Typical V OH V (Output V OH Undershoot) > 2 V at V CC = 3.3 V, T A = 25℃
I off Supports Live Insertion, Partial-Power-Down Mode and Back Drive Protection
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000-V Human Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
