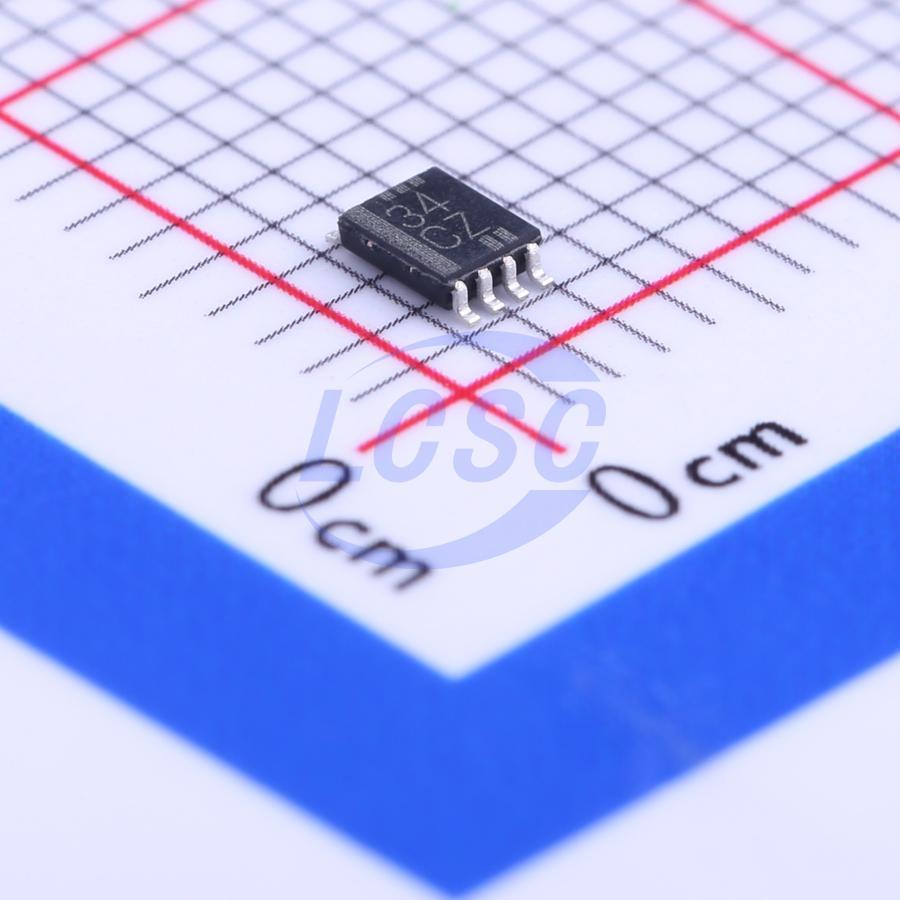

SN74LVC3G34DCUR

The SN74LVC3G34 device is a triple buffer gate designed for 1.65-V to 5.5–V CC operation. The SN74LVC3G34 device performs the Boolean function Y = A in positive logic. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using I off. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• AV Receivers
• Audio Docks: Portable
• Blu-ray Players and Home Theaters
• DVD Recorders and Players
• Embedded PCs
• MP3 Players and Recorders (Portable Audio)
• Personal Digital Assistant (PDA)
• Power: Telecom/Server
• AC/DC Supply: Single
• Controller: Analog and Digital
• Solid-State Drive (SSD): Client and Enterprise
• TV: LCD/Digital and High-Definition (HDTV)
• Tablets: Enterprise
• Video Analytics: Servers
• Wireless Headsets, Keyboards, and Mice

Key features

• Available in the NanoFree Package
• Supports 5.5-V V CC Operation
• Inputs Accept Voltages to 5.5 V
• Max t pd of 4.1 ns at 3.3 V
• Low Power Consumption, 10-μA Maximum ICC
• ±24-mA Output Drive at 3.3 V
• Typical V OLP (Output Ground Bounce) < 0.8 V at V CC = 3.3 V, T A = 25℃
• Typical V OHV (Output V OH Undershoot) > 2 V at V CC = 3.3 V, T A = 25℃
• I off Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
• Can Be Used as a Down Translator to Translate Inputs From a Maximum of 5.5 V Down to the V CC Level
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 2000-V Human Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
