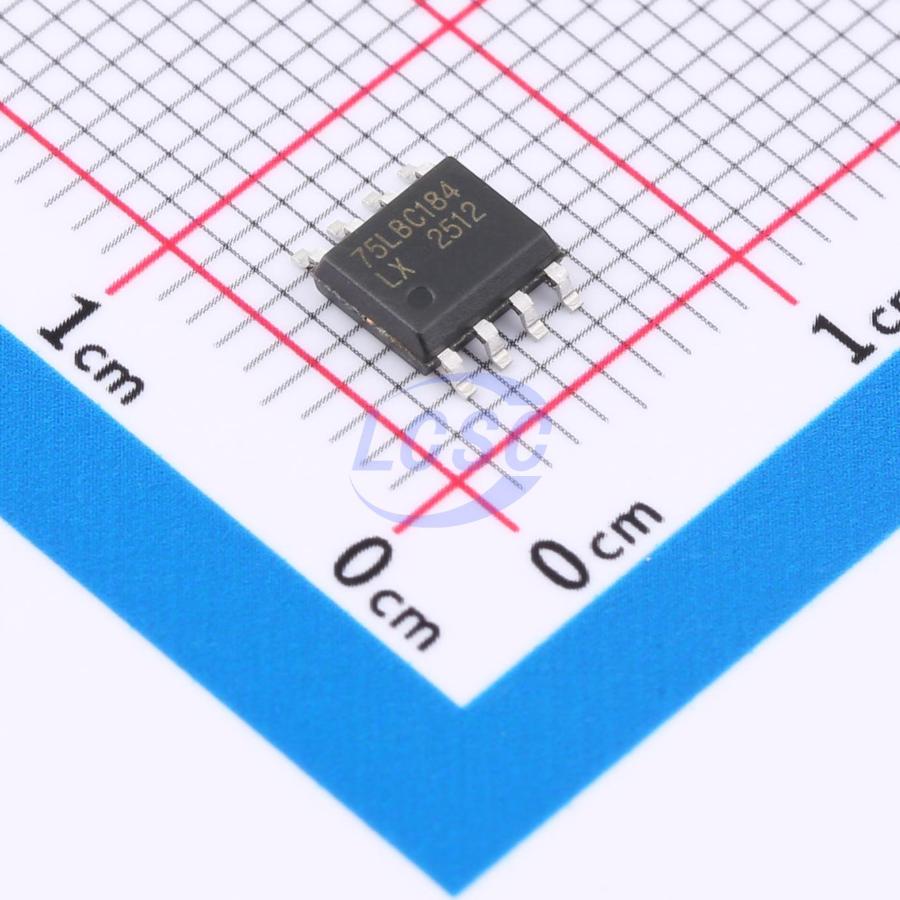

SN75LBC184DR(LX)
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8RoHSActive
Low-power 500K RS-485 bus transceiver with fail-safe function
- Manufacturer
- lingxingic
- Manufacturer part #
- SN75LBC184DR(LX)
- Store part #
- C48533475
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,560 in stock
#C48533475
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.08 | ₹85.40 |
| 50+ | ₹14.91 | ₹745.50 |
| 150+ | ₹13.98 | ₹2,097.00 |
| 500+ | ₹12.83 | ₹6,415.00 |
| 2,500+ | ₹12.32 | ₹30,800.00 |
| 4,000+ | ₹12.01 | ₹48,040.00 |
5 × ₹17.08
₹85.40
excl. GST
₹100.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN75LBC184DR(LX)
₹85.40 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 500Kbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Hot-swap protection;Overcurrent Protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 750uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.153 g
Overview
The SN75LBC184 is a 5V, half-duplex RS-485 bus transceiver integrating one driver and one receiver. It features ±15kV HBM protection on bus pins, hot-swap capability, and a fail-safe receiver, along with overvoltage and overcurrent protection. Operating temperature range: -40 ~ +85°C. Available in DIP8 or SOP8 packages.
Key features
- Supply voltage range: 3V ~ 5.5V
- Data rate: 500Kbps
- Up to 256 nodes per bus (1/8 unit load)
- Bus pins with ±15kV HBM protection
- Hot-swap capable; driver and receiver outputs remain high-impedance during power-up/power-down
- Full fail-safe receiver (open circuit, short circuit, and termination fault)
- Driver with overvoltage and overcurrent protection
- Operating temperature range: -40 ~ +85℃
- Package: DIP8/SOP8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN65LBC184DR(LX)#C48533477lingxingic · SOP-8 | lingxingic | SOP-8 | 1,435 | ₹34.37 · 1,435 in stock | View |
 | SN75176BDR(LX)#C22466313lingxingic · SOP-8 | lingxingic | SOP-8 | 3,890 | ₹24.07 · 3,890 in stock | View |
 | MAX3485ESA(LX)#C42403068lingxingic · SOP-8 | lingxingic | SOP-8 | 355 | ₹28.58 · 355 in stock | View |
