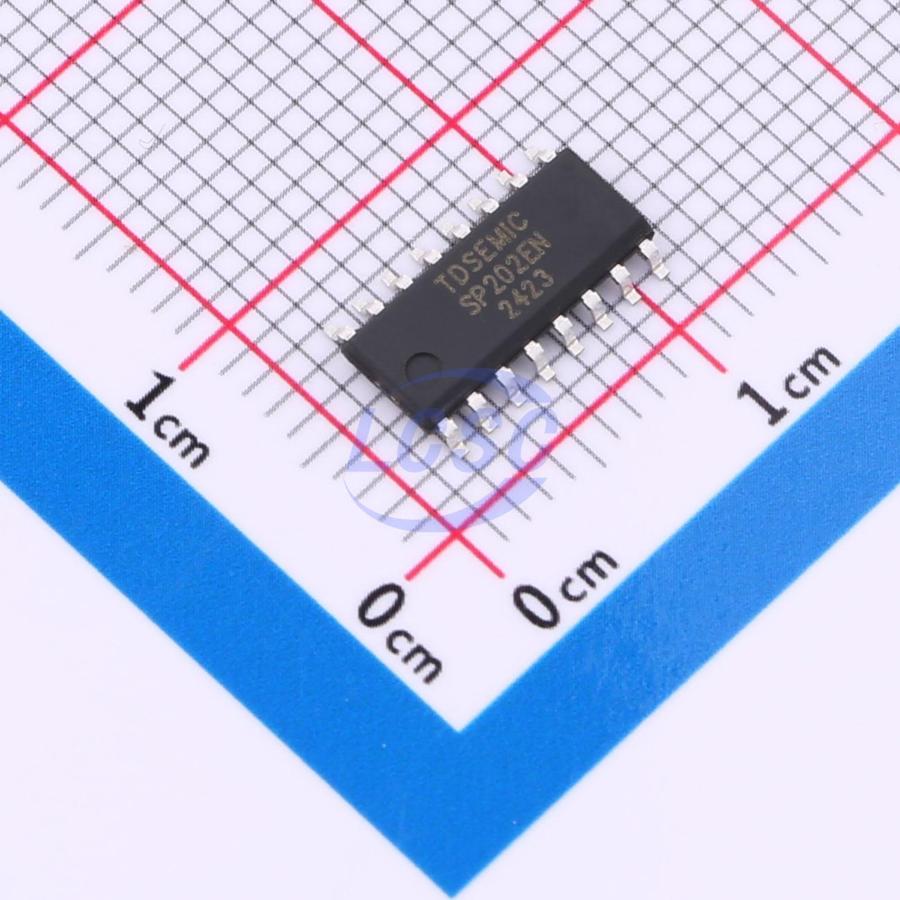

SP202EN-TD
4.5V~5.5V Transceiver 140Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
Dual channel RS-232 Drivers/Receivers
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SP202EN-TD
- Store part #
- C42422070
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C42422070
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.57 | ₹252.85 |
| 50+ | ₹39.70 | ₹1,985.00 |
| 150+ | ₹35.05 | ₹5,257.50 |
| 500+ | ₹29.24 | ₹14,620.00 |
| 2,500+ | ₹26.66 | ₹66,650.00 |
| 5,000+ | ₹25.11 | ₹1,25,550.00 |
5 × ₹50.57
₹252.85
excl. GST
₹298.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP202EN-TD
₹252.85 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 140Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Automatic level shifting;Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 14mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.234 g
Overview
SP202EN is a dual driver/receiver compliant with the RS-232 standard, operating from a single supply voltage. The bipolar output voltage of the transmitters is generated by an integrated voltage multiplier using four external 1.0μF capacitors. Designed for high-performance computing systems and high-speed electronic equipment, it enables highly reliable data exchange between remote nodes. Input voltage levels are compatible with standard CMOS and TTL levels.
Applications
- Portable computers
- Battery-powered RS-232 systems
- Interface conversion
- Low-power modems
- Terminals
Key features
- Output voltage levels compatible with CMOS and TTL IC input levels
- Compliant with all EIA/TIA-232E and V.28/V.24 specifications
- Supply voltage range from 5.5V
- Low input current: 1.0μA at 25℃
- Output current 30mA
- SOP-16 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX232CDR-TD#C42422004TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 904 | ₹52.38 · 904 in stock | View |
 | MAX232DR-TD#C42422006TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 570 | ₹47.32 · 570 in stock | View |
 | MAX232EESE-TD#C42422008TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 5,230 | ₹53.78 · 5,230 in stock | View |
 | MAX232ESE-TD#C42422009TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 3,015 | ₹28.64 · 3,015 in stock | View |
 | MAX232IDR-TD#C42422010TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 2,220 | ₹33.13 · 2,220 in stock | View |
