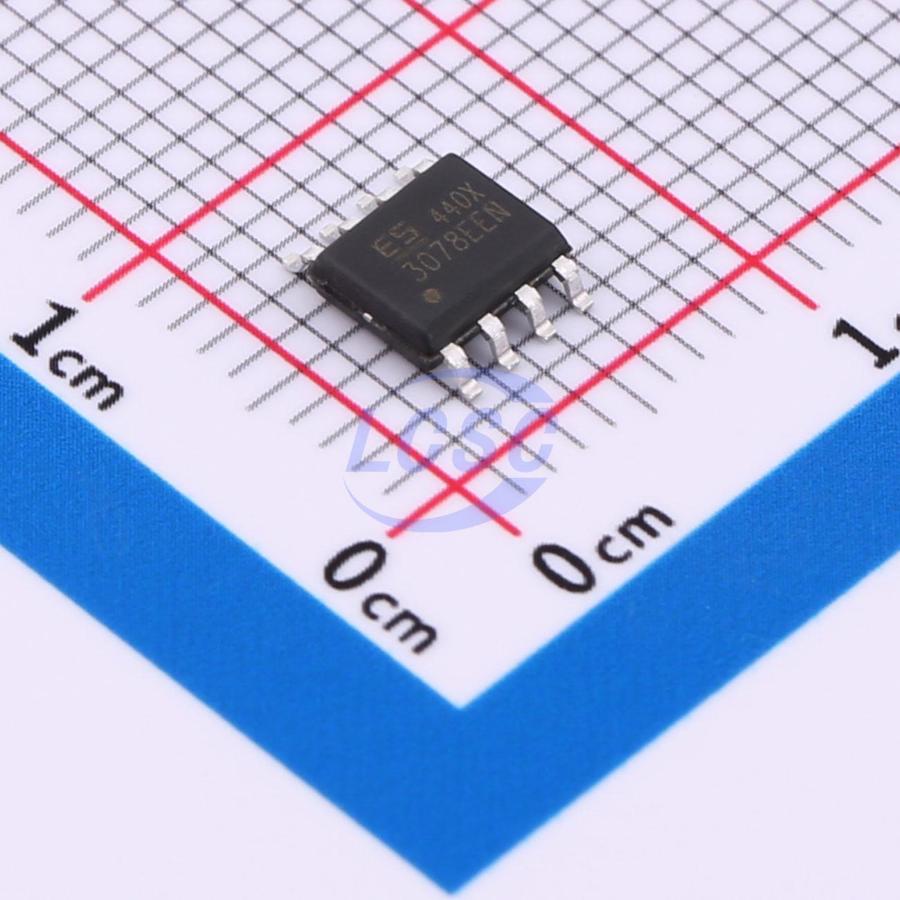

SP3078EEN-L/TR(ES)
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
RS-485/RS422 Transceiver
- Manufacturer
- ElecSuper
- Manufacturer part #
- SP3078EEN-L/TR(ES)
- Store part #
- C41438296
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,580 in stock
#C41438296
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.96 | ₹254.80 |
| 50+ | ₹40.13 | ₹2,006.50 |
| 150+ | ₹35.35 | ₹5,302.50 |
| 500+ | ₹29.50 | ₹14,750.00 |
| 2,500+ | ₹26.90 | ₹67,250.00 |
| 5,000+ | ₹25.38 | ₹1,26,900.00 |
5 × ₹50.96
₹254.80
excl. GST
₹300.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP3078EEN-L/TR(ES)
₹254.80 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 14Mbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 240uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.29 g
Overview
SP3078EEN-L/TR is a half-duplex, low-power RS-485 transceiver with a wide supply voltage range of 3.0V~5.5V, bus port ESD protection up to 15kV HBM, bus voltage tolerance of ±15V, and full compliance with TIA/EIA-485 standard requirements. It incorporates one driver and one receiver, both of which can be independently enabled or disabled. When both are disabled, the driver and receiver outputs enter a high-impedance state. With 1/8 unit load, up to 256 SP3078EEN-L/TR transceivers can be connected in parallel on the same communication bus. Error-free data transmission at up to 14Mbps is supported. Operating at 3.3V, the device features fail-safe, current limiting protection, and overvoltage protection.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3485ESA#C41365338ElecSuper · SOP-8 | ElecSuper | SOP-8 | 575 | ₹40.95 · 575 in stock | View |
 | SP3485EEN#C41365339ElecSuper · SOP-8 | ElecSuper | SOP-8 | 8,745 | ₹28.05 · 8,745 in stock | View |
 | SP3485EN-L/TR#C41365340ElecSuper · SOP-8 | ElecSuper | SOP-8 | 33,355 | ₹28.30 · 33,355 in stock | View |
 | SSP3485(ES)#C41438284ElecSuper · SOP-8 | ElecSuper | SOP-8 | 1,435 | ₹38.49 · 1,435 in stock | View |
 | MAX3485ESA+T(ES)#C41438286ElecSuper · SOP-8 | ElecSuper | SOP-8 | 765 | ₹38.01 · 765 in stock | View |
