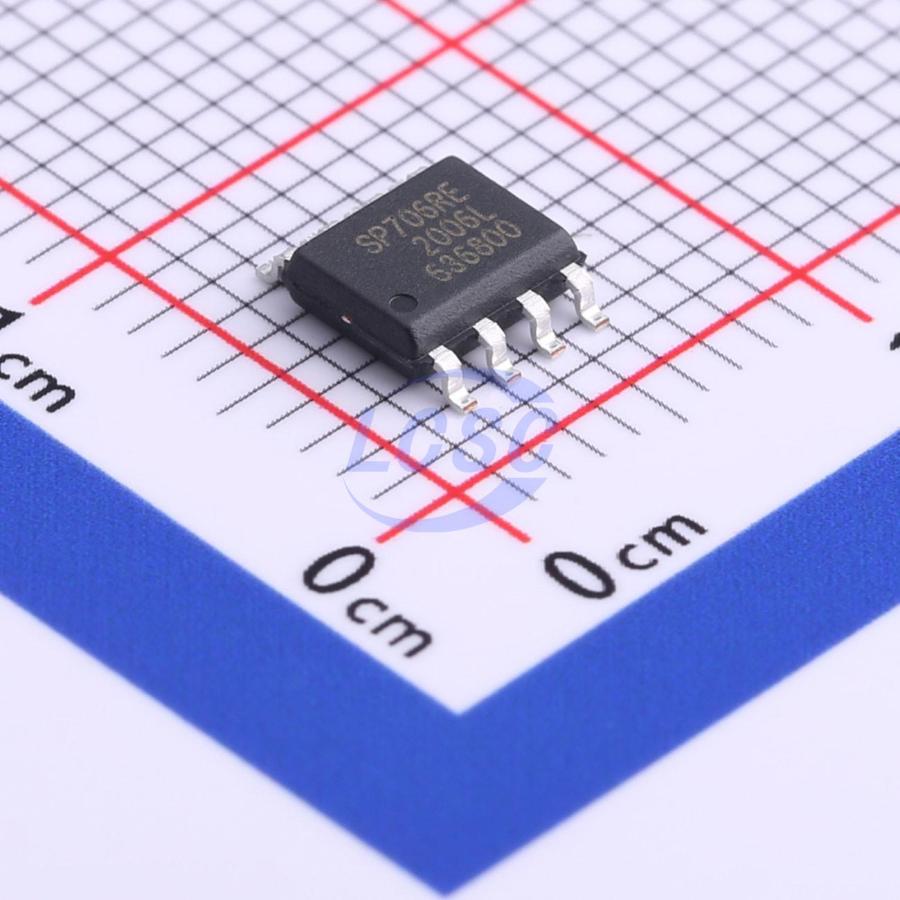

SP706REN-L/TR
200ms Active Low 1V~5.5V 1 SOIC-8 Supervisors RoHS
Low Power Microprocessor Supervisory Circuits
- Manufacturer
- MaxLinear
- Manufacturer part #
- SP706REN-L/TR
- Store part #
- C21535
- Package / case
- SOIC-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,525 in stock
#C21535
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.63 | ₹69.63 |
| 10+ | ₹55.06 | ₹550.60 |
| 30+ | ₹48.75 | ₹1,462.50 |
| 100+ | ₹40.91 | ₹4,091.00 |
| 500+ | ₹34.82 | ₹17,410.00 |
| 1,000+ | ₹32.65 | ₹32,650.00 |
1 × ₹69.63
₹69.63
excl. GST
₹82.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP706REN-L/TR
₹69.63 for 1 + GST
Specifications
- Reset Timeout
- 200ms
- output type
- Open-drain
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 25uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.335 g
Overview
The SP706R / SP706S / SP706T and SP708S / SP708T series is a family of microprocessor (µP) supervisory circuits that integrate a myriad of components involved in discrete solutions which monitor power-supplies and batteries in µP and digital systems. The SP706R / SP706S / SP706T and SP708S / SP708T series will significantly improve system reliability and operational efficiency when compared to solutions using discrete components. The features of the SP706R / SP706S / SP706T and SP708S / SP708T series include a watchdog timer, a µP reset, a power fail comparator, and a manualreset input. The SP706R / SP706S / SP706T and SP708S / SP708T series is ideal for 3.0V or 3.3V applications in automotive systems, computers, controllers and intelligent instruments. The SP706R / SP706S / SP706T and SP708S / SP708T series is an ideal solution for systems in which critical monitoring of the power supply to the µP and related digital components is demanded.
Applications
- Processors & DSPs based systems
- Industrial & medical instruments
Key features
- Precision low voltage monitor
- SP706R: +2.63V
- SP706S / SP708S: +2.93V
- SP706T / SP708T: +3.08V
- 200ms RESET pulse width
- SP706R / SP706S / SP706T: active low
- SP708S / SP708T: active high and active low
- Independent watchdog timer
- 1.6s timeout (SP706R / SP706S / SP706T)
- Enable / disable function
- 40µA maximum supply current
- Debounced TTL / CMOS manual reset input
- RESET asserted down to VCC = 1V
- VCC glitch immunity
- Voltage monitor for power failure or low battery warning
- 8-Pin NSOIC and MSOP packages
- Pin compatible with industry standards 706R/S/T and 708S/T
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STM706TAM6F#C2066462ST · SOIC-8 | ST | SOIC-8 | 2,444 | ₹114.06 · 2,444 in stock | View |
 | TPAX706RS8#C48886820TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 856 | ₹67.72 · 856 in stock | View |
 | CBM706RAS8#C476236Corebai Microelectronics · SOP-8 | Corebai Microelectronics | SOP-8 | 3,695 | ₹42.71 · 3,695 in stock | View |
 | CBM708RAS8#C476248Corebai Microelectronics · SOIC-8 | Corebai Microelectronics | SOIC-8 | 2,465 | ₹44.29 · 2,465 in stock | View |
 | RS706-2.63YK#C5372601RUNIC · SOIC-8 | RUNIC | SOIC-8 | 1,195 | ₹36.41 · 1,195 in stock | View |
