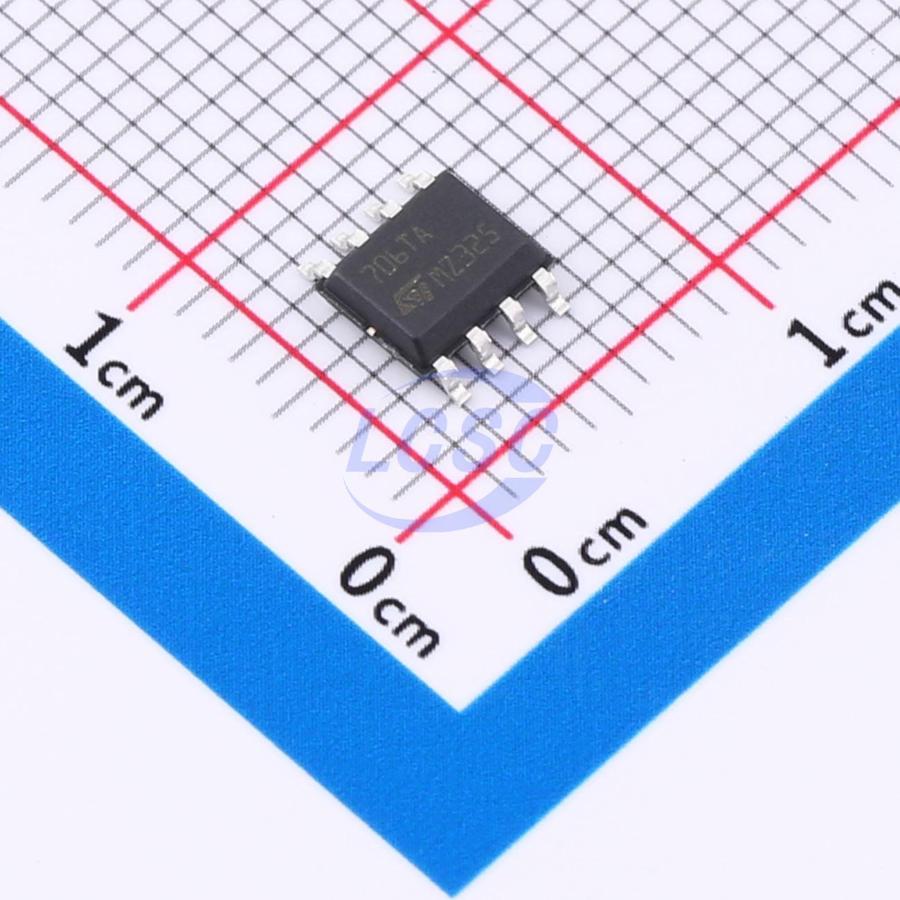

STM706TAM6F
200ms Active Low 1V~5.5V 1 SOIC-8 Supervisors RoHS
3 V supervisor
- Manufacturer
- ST
- Manufacturer part #
- STM706TAM6F
- Store part #
- C2066462
- Package / case
- SOIC-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,444 in stock
#C2066462
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.83 | ₹94.83 |
| 10+ | ₹76.34 | ₹763.40 |
| 30+ | ₹67.00 | ₹2,010.00 |
| 100+ | ₹57.84 | ₹5,784.00 |
| 500+ | ₹52.27 | ₹26,135.00 |
| 1,000+ | ₹49.40 | ₹49,400.00 |
1 × ₹94.83
₹94.83
excl. GST
₹111.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STM706TAM6F
₹94.83 for 1 + GST
Specifications
- output type
- Open-drain
- Operating Temperature
- -40℃~+85℃@(TA)
- Reset Timeout
- 200ms
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 40uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.39 g
Overview
The STM70x supervisors are self-contained devices which provide microprocessor supervisory functions. A precision voltage reference and comparator monitors the VCC input for an out-of-tolerance condition. When an invalid VCC condition occurs, the reset output (RST) is forced low (or high in the case of RST). These devices also offer a watchdog timer (except for STM708T/S/R) as well as a power-fail comparator to provide the system with an early warning of impending power failure. The STM706P device is identical to the STM706R device, except its reset output is active high. These devices are available in a standard 8-pin SOIC package or a space-saving 8-pin TSSOP package.
Applications
- Computers
- Controllers
- Intelligent instruments
Key features
- Precision VCC monitor T: 3.00 V ≤ VRST ≤ 3.15 V – S: 2.88 V ≤ VRST ≤ 3.00 V – R: STM706P: 2.59 V ≤ VRST ≤ 2.70 V RST and RST outputs
- 200 ms (typ.) trec
- Watchdog timer - 1.6 s (typ.)
- Manual reset input (MR)
- Power-fail comparator (PFI/PFO)
- Low supply current - 40 μA (typ.)
- Guaranteed RST (RST) assertion down to VCC = 1.0 V
- Operating temperature: -40 °C to 85 °C (industrial grade)
- RoHS compliance – Lead-free components are compliant with the RoHS directive
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP706REN-L/TR#C21535MaxLinear · SOIC-8 | MaxLinear | SOIC-8 | 14,525 | ₹57.89 · 14,525 in stock | View |
 | TPAX706RS8#C48886820TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 856 | ₹56.31 · 856 in stock | View |
 | CBM706RAS8#C476236Corebai Microelectronics · SOP-8 | Corebai Microelectronics | SOP-8 | 3,695 | ₹35.51 · 3,695 in stock | View |
 | CBM708RAS8#C476248Corebai Microelectronics · SOIC-8 | Corebai Microelectronics | SOIC-8 | 2,465 | ₹36.83 · 2,465 in stock | View |
 | RS706-2.63YK#C5372601RUNIC · SOIC-8 | RUNIC | SOIC-8 | 1,195 | ₹30.27 · 1,195 in stock | View |
