SiproinDatasheet (PDF)

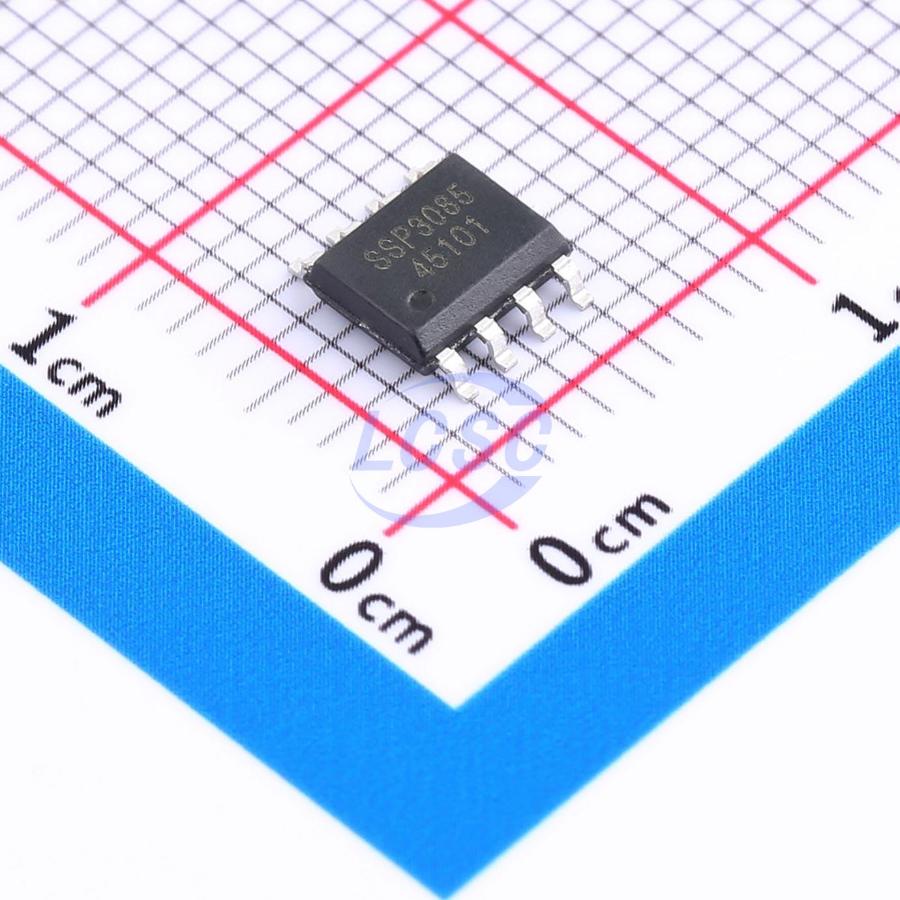

SSP3085
5V Transceiver 500Kbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
+15kV ESD Protected、500kbps Data Rate RS-485
- Manufacturer
- Siproin
- Manufacturer part #
- SSP3085
- Store part #
- C410986
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C410986
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.01 | ₹130.05 |
| 50+ | ₹20.76 | ₹1,038.00 |
| 150+ | ₹18.51 | ₹2,776.50 |
| 500+ | ₹15.69 | ₹7,845.00 |
| 2,500+ | ₹14.31 | ₹35,775.00 |
| 4,000+ | ₹13.56 | ₹54,240.00 |
5 × ₹26.01
₹130.05
excl. GST
₹153.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SSP3085
₹130.05 for 5 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 500Kbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 480uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.242 g
Overview
The SSP3085 is a half-duplex high speed transceiver for RS-485 and RS422 communication. IC contains one driver and one receiver. The SSP3085 has a fail-safe circuit, ensure logical high level of receiver output when receiver input is open or short. It can achieve error-free data transmission of up to 500kbps. Each driver output and receiver input is protected against ±15kV electrostatic discharge (HBM) (ESD) shocks. The SSP3085 receiver has 1/8 unit load input impedance, allows up to 256 devices can be attached to the bus.
Applications
- RS-485/RS-422 transceiver
- Industrial process control
- Electric meter
- Industrial motor drive
- Automatic HVAC system
Key features
- I/O pin ESD protection: +15kV HBM. Other pins have level 3 ESD protection: >+8kV HBM
- Fractional unit load allows up to 256 devices on the bus
- +5V operating voltage
- Data transmission up to 500kbps
- Tri-state output
- SOP8 and DIP8 package
