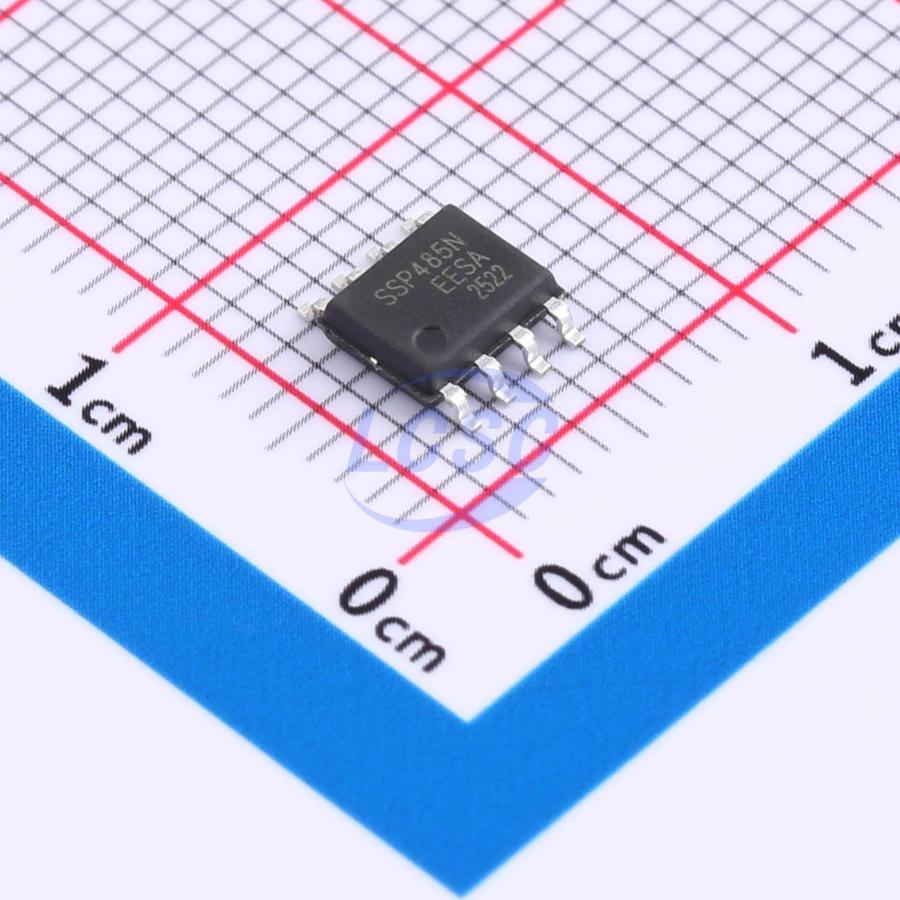

SSP485N

The SSP485N is a half- duplex high speed transceiver for RS- 485 communication. IC contains one driver and one receiver, It has adaptive function. The SSP485N has a fail- safe circuit, ensure logical high level of receiver output when receiver input is open or short. The SSP485N receiver has 1/8 unit load input impedance, allows up to 256 devices can be attached to the bus. The SSP485N is a half- duplex high speed transceiver for RS- 485 communication. IC contains one driver and one receiver. It has adaptive function, AB terminal reverse connection can also communicate normally. The SSP485N receiver has 1/8 unit load input impedance, allows up to 256 devices can be attached to the bus.

Applications

• Intelligent instrument
• Industrial process control
• Building automation network
• Motor control

Key features

• I/O pin ESD protection: +15kV HBM IEC 61000-4-2
• Other pins have level 3 ESD protection: >+8kV HBM
• Fractional unit load allows up to 256 devices on the bus
• Adaptive connection function: reverse connection communication of communication ports A and B is realized, polarity recognition time is 78ms
• Operating voltage: +5V(Typical.)
• Low current shutdown mode operating current: 1nA
• Current limiting and thermal turn-off function can be used for driver overload protection
• SOP8 package
