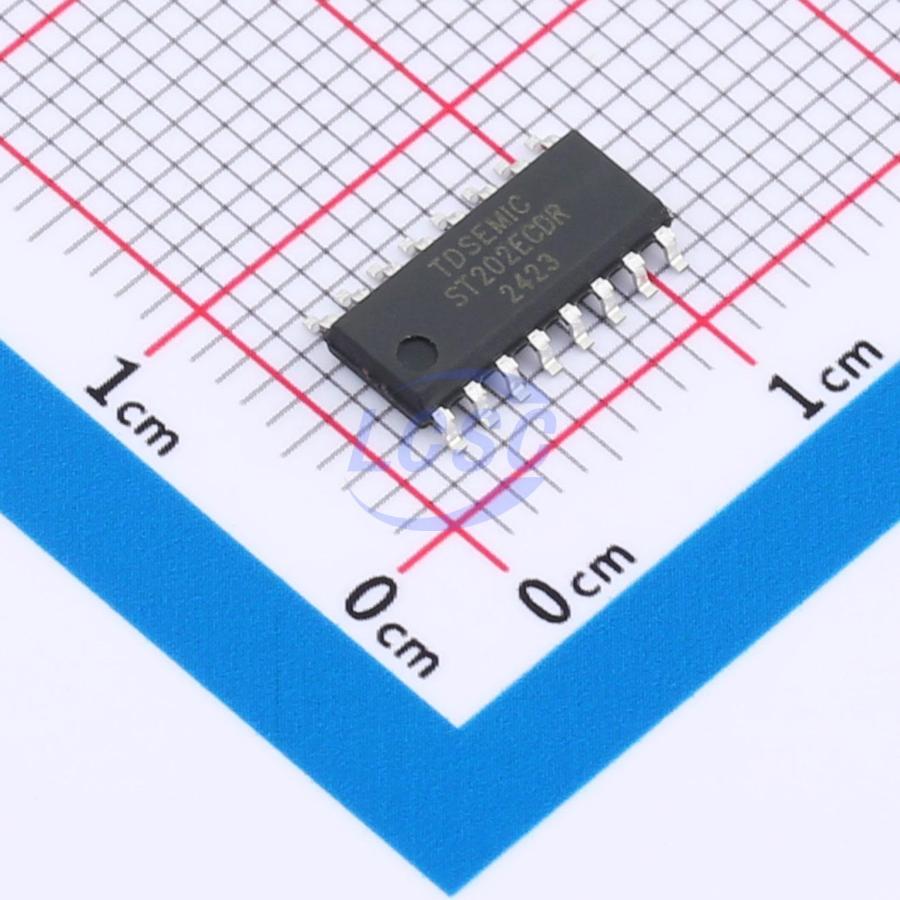

ST202ECDR-TD
4.5V~5.5V Transceiver 140Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
5V Dual channel RS-232 Drivers/Receivers
- Manufacturer
- TDSEMIC
- Manufacturer part #
- ST202ECDR-TD
- Store part #
- C42422088
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
985 in stock
#C42422088
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.98 | ₹59.98 |
| 10+ | ₹53.25 | ₹532.50 |
| 30+ | ₹49.98 | ₹1,499.40 |
| 100+ | ₹46.50 | ₹4,650.00 |
| 500+ | ₹44.56 | ₹22,280.00 |
| 1,000+ | ₹43.46 | ₹43,460.00 |
1 × ₹59.98
₹59.98
excl. GST
₹70.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST202ECDR-TD
₹59.98 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 140Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 14mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.234 g
Overview
ST202XXX-TD is an RS-232 compliant dual driver/receiver powered by a single supply voltage. The bipolar output voltage of the transmitter is generated by a built-in voltage multiplier based on four external 1.0 μF capacitors. The device is designed for modern high-performance computing systems and high-speed electronic equipment requiring highly reliable information exchange between remote nodes. Input voltage levels are compatible with standard CMOS and TTL levels.
Applications
- Portable computers
- Battery-powered RS-232 systems
- Interface conversion
- Low-power modems
- Terminals
Key features
- Output levels compatible with CMOS and TTL IC input levels
- Complies with all EIA/TIA-232E and V.28/V.24 specifications
- Supply voltage range up to 5.5V
- Low input current: 1.0 μA @ 25℃
- Output current 30mA
- Available in SOP-16 package
