TDSEMICDatasheet (PDF)

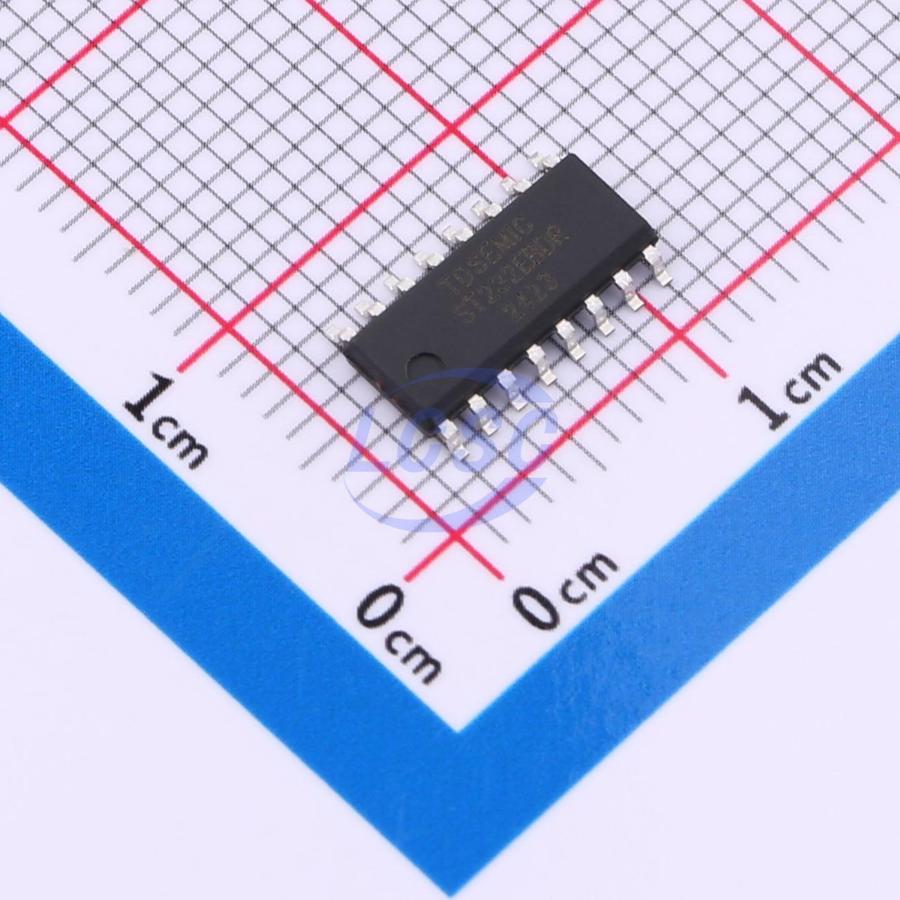

ST232EBDR-TD
4.5V~5.5V Transceiver 140Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
Dual channel RS-232 Drivers/Receivers
- Manufacturer
- TDSEMIC
- Manufacturer part #
- ST232EBDR-TD
- Store part #
- C42422091
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C42422091
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.04 | ₹116.04 |
| 10+ | ₹93.44 | ₹934.40 |
| 30+ | ₹82.15 | ₹2,464.50 |
| 100+ | ₹71.06 | ₹7,106.00 |
| 500+ | ₹64.32 | ₹32,160.00 |
| 1,000+ | ₹60.84 | ₹60,840.00 |
1 × ₹116.04
₹116.04
excl. GST
₹136.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST232EBDR-TD
₹116.04 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 140Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 14mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
The ST232EBDR is a dual driver/receiver of RS-232 standard with a single supply voltage and bipolar output voltage of the transmiter formed by a built-in voltage multiplying generator on four 1.0μF external capacitors, designed for use in state-of-the-art high performance computing systems, high-speed electronic devices with high reliability of information exchange between remote objects. Input voltage levels are compatible with standard CMOS and TTL levels.
Applications
- Portable Computers
- Battery-Powered RS-232 Systems
- Interface Translation
- Low-Power Modems Terminals
Key features
- Output voltage levels are compatible with input levels of CMOS and TTL integrated circuits
- Meets All EIA/TIA-232E and V.28/V.24 Specifications
- Supply voltage range from 5.5V
- Low input current: 1.0μA at 25°C
- Output current 30mA
- Available in SOP-16 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX232CDR-TD#C42422004TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 904 | ₹52.38 · 904 in stock | View |
 | MAX232DR-TD#C42422006TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 570 | ₹47.32 · 570 in stock | View |
 | MAX232EESE-TD#C42422008TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 5,230 | ₹53.78 · 5,230 in stock | View |
 | MAX232ESE-TD#C42422009TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 3,015 | ₹28.64 · 3,015 in stock | View |
 | MAX232IDR-TD#C42422010TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 2,220 | ₹33.13 · 2,220 in stock | View |
