STDatasheet (PDF)

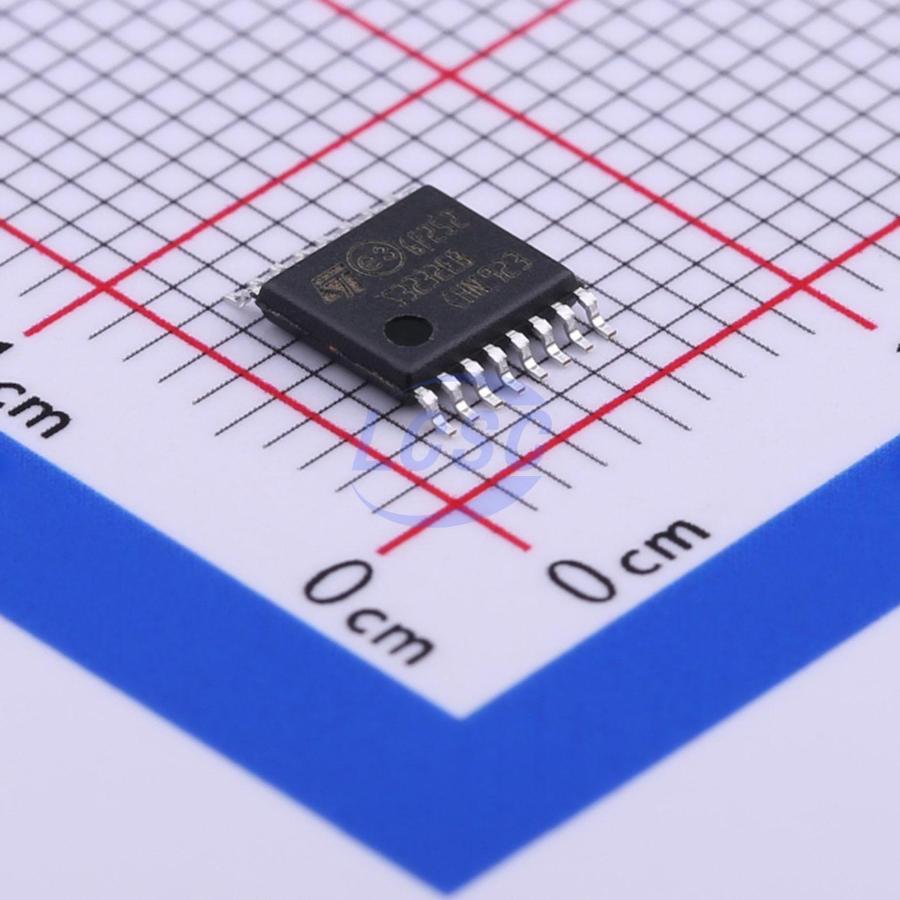

ST3232EBTR
Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS3 CompliantActive
±15 kV ESD protection, 3 to 5.5 V low power, up to 250 kbps, RS-232 drivers and receivers
- Manufacturer
- ST
- Manufacturer part #
- ST3232EBTR
- Store part #
- C435947
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,241 in stock
#C435947
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.83 | ₹100.83 |
| 10+ | ₹81.52 | ₹815.20 |
| 30+ | ₹71.77 | ₹2,153.10 |
| 100+ | ₹62.23 | ₹6,223.00 |
| 500+ | ₹52.26 | ₹26,130.00 |
| 1,000+ | ₹49.44 | ₹49,440.00 |
1 × ₹100.83
₹100.83
excl. GST
₹118.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST3232EBTR
₹100.83 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.194 g
Overview
The ST3232E is a 3 V powered EIA/TIA-232 and V.28/V.24 communication interfaces with low power requirements, high data-rate capabilities and enhanced electrostatic discharge (ESD) protection to ± 8 kV using IEC1000-4-2 contact discharge and ± 15 kV using the human body model. The ST3232E has a proprietary lowdropout transmitter output stage providing true RS-232 performance from 3 to 5 V supplies with a dual charge pump. The charge pump requires only four small 0.1 μF standard external capacitors for operations from 3 V supply. The ST3232E has two receivers and two drivers. The device is guaranteed to run at data rates of 250 kbps while maintaining RS-232 output levels.
Applications
- Notebook, subnotebook and palmtop computers
- Battery-powered equipment
Key features
- ESD protection for RS-232 I/O pins ±15 kV human body model
- ±8 kV IEC 1000-4-2 contact discharge
- 300 μA supply current
- 250 kbps minimum guaranteed data rate
- 6 V/μs minimum guaranteed slew rate
- Meet EIA/TIA-232 specifications down to 3 V
- Available in SO-16 and TSSOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232IPWR#C113205TI · TSSOP-16 | TI | TSSOP-16 | 24,623 | ₹60.47 · 24,623 in stock | View |
 | SP3232EBEY-L/TR#C132106MaxLinear · TSSOP-16 | MaxLinear | TSSOP-16 | 12,194 | ₹55.49 · 12,194 in stock | View |
 | ICL3232EIV-16Z-T#C152391RENESAS · TSSOP-16 | RENESAS | TSSOP-16 | 55 | ₹559.63 · 55 in stock | View |
 | ICL3232IVZ#C1543929RENESAS · TSSOP-16 | RENESAS | TSSOP-16 | 14 | ₹338.75 · 14 in stock | View |
 | TRS3232EIPWR#C2652868TI · TSSOP-16 | TI | TSSOP-16 | 743 | ₹106.05 · 743 in stock | View |
