STDatasheet (PDF)

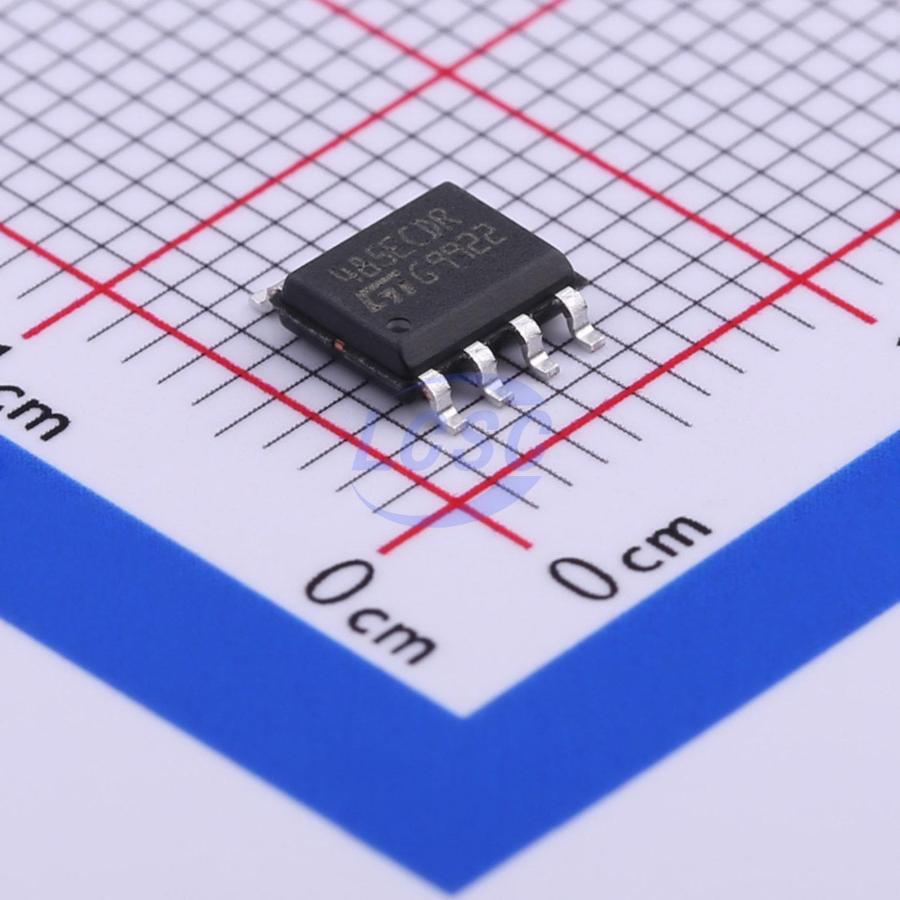

ST485ECDR
4.75V~5.25V Transceiver 5Mbps 256 SO-8 Drivers, Receivers, Transceivers RoHS
SO-8ROHS3 CompliantActive
ST485EB-ST485EC-ST485EX
- Manufacturer
- ST
- Manufacturer part #
- ST485ECDR
- Store part #
- C283405
- Package / case
- SO-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,323 in stock
#C283405
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹118.61 | ₹118.61 |
| 10+ | ₹96.49 | ₹964.90 |
| 30+ | ₹85.43 | ₹2,562.90 |
| 100+ | ₹74.38 | ₹7,438.00 |
| 500+ | ₹67.87 | ₹33,935.00 |
| 1,000+ | ₹64.40 | ₹64,400.00 |
1 × ₹118.61
₹118.61
excl. GST
₹139.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST485ECDR
₹118.61 for 1 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Type
- Transceiver
- Data Rate
- 5Mbps
- Number of Nodes
- 256
- Operating Temperature
- 0℃~+70℃
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 300uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.298 g
Overview
The ST485E is a low power transceiver for R ± 15 kV RS-422 communication. Each driver output and receiver input is protected against ± 15 kV electrostatic discharge (HBM shocks, without driver and one receiver 300 μA duplex configuration. This transceiver current when unloaded or fully loaded. It operates from a single 5 V supply.
Key features
- 300 μA
- 7 V to 12 V common
- 70 mV maintains high impedance
- Operates from a single 5 V
- Current limiting
- Driver overload protection
- ESD ± 8 kV protection
- ± 15 kV (HBM)
- Driver is short-circuit current limited
- Thermal shutdown circuit
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ST485EXDR#C283496ST · SO-8 | ST | SO-8 | 6,381 | ₹89.74 · 6,381 in stock | View |
 | ST485EBDR#C81186ST · SOIC-8 | ST | SOIC-8 | 6,522 | ₹79.74 · 6,522 in stock | View |
 | ST485EBDR(ES)#C41438305ElecSuper · SOP-8 | ElecSuper | SOP-8 | 1,660 | ₹23.92 · 1,660 in stock | View |
 | SN65HVD3088EDR#C110430TI · SOIC-8 | TI | SOIC-8 | 1,102 | ₹148.10 · 1,102 in stock | View |
 | SP1486EEN-L/TR#C2671865MaxLinear · SOIC-8 | MaxLinear | SOIC-8 | 13 | ₹404.82 · 13 in stock | View |
