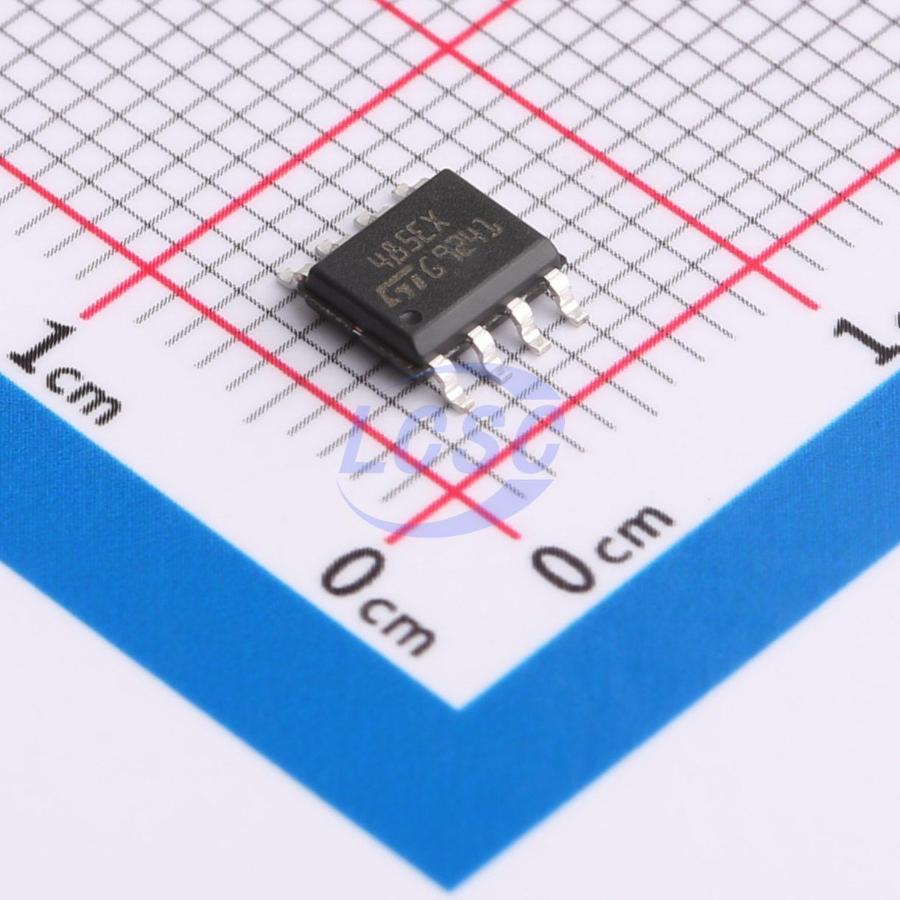

ST485EXDR
4.75V~5.25V Transceiver 5Mbps 256 SO-8 Drivers, Receivers, Transceivers RoHS
SO-8ROHS3 CompliantActive
±15 kV ESD protected, low power RS-485/RS-422 transceiver
- Manufacturer
- ST
- Manufacturer part #
- ST485EXDR
- Store part #
- C283496
- Package / case
- SO-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,381 in stock
#C283496
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.74 | ₹89.74 |
| 10+ | ₹73.23 | ₹732.30 |
| 30+ | ₹64.97 | ₹1,949.10 |
| 100+ | ₹56.72 | ₹5,672.00 |
| 500+ | ₹51.72 | ₹25,860.00 |
| 1,000+ | ₹49.32 | ₹49,320.00 |
1 × ₹89.74
₹89.74
excl. GST
₹105.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST485EXDR
₹89.74 for 1 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Type
- Transceiver
- Data Rate
- 5Mbps
- Number of Nodes
- 256
- Operating Temperature
- -55℃~+125℃
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 300uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
The ST485E is a low power transceiver for R ± 15 kV RS-422 communication. Each driver output and receiver input is protected against ± 15 kV electrostatic discharge (HBM shocks, without driver and one receiver 300 μA duplex configuration. This transceiver current when unloaded or fully loaded. It operates from a single 5 V supply.
Key features
- 300 μA
- 7 V to 12 V common
- 70 mV maintains high impedance
- Operates from a single 5 V
- Current limiting
- Driver overload protection
- ESD ± 8 kV protection
- ± 15 kV (HBM)
- Driver is short-circuit current limited
- Thermal shutdown circuit
