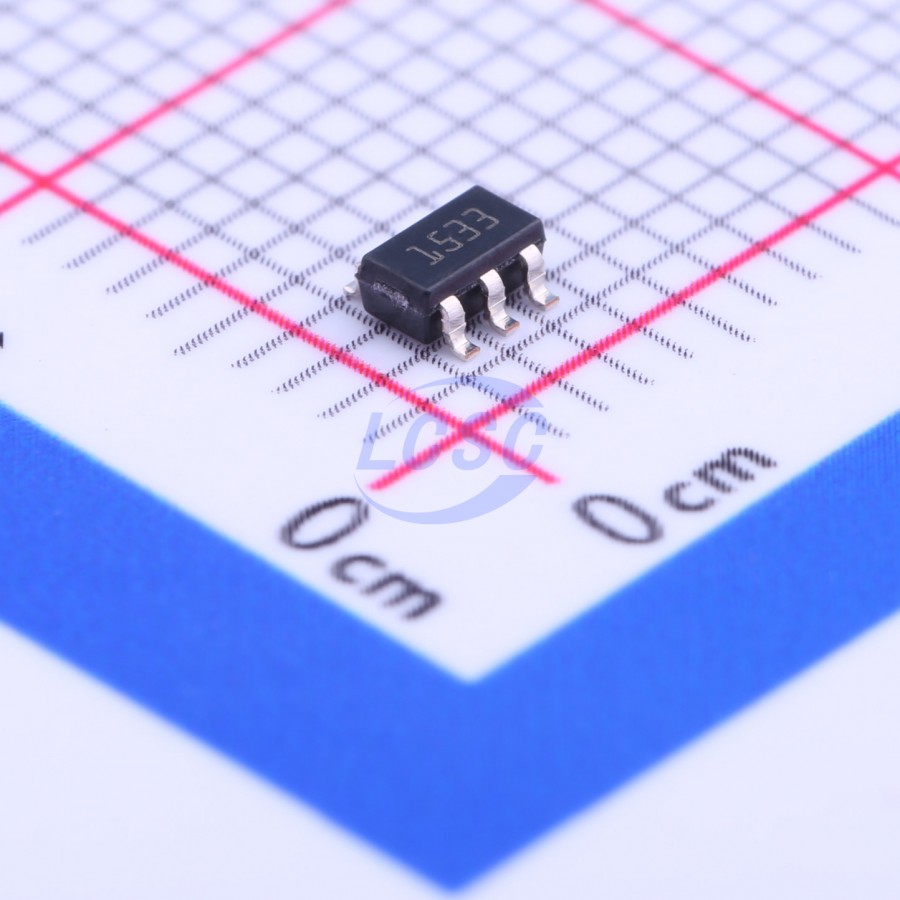

STLQ015M33R
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
150 mA - Ultra-Low Quiescent Current Linear Regulator
- Manufacturer
- ST
- Manufacturer part #
- STLQ015M33R
- Store part #
- C136154
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,20,070 in stock
#C136154
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.61 | ₹248.05 |
| 50+ | ₹38.44 | ₹1,922.00 |
| 150+ | ₹33.65 | ₹5,047.50 |
| 500+ | ₹27.68 | ₹13,840.00 |
| 3,000+ | ₹25.01 | ₹75,030.00 |
| 6,000+ | ₹23.42 | ₹1,40,520.00 |
5 × ₹49.61
₹248.05
excl. GST
₹292.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STLQ015M33R
₹248.05 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 1.4uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The STLQ015 provides 150 mA of maximum current with an input voltage range from 1.5 V to 5.5 V and a typical dropout voltage of 112 mV. The key feature of this device is its quiescent current, which is just 1.4 μA at maximum output current. The device is stable with a ceramic capacitor on the output. It offers very low quiescent current and extends battery-life of applications requiring very long standby time. The enable logic control function puts the STLQ015 in shutdown mode, reducing total current consumption to 1 nA. The device also includes short-circuit constant-current limiting and thermal protection. Typical applications are: portable and battery-powered systems, electronic sensors and microcontroller power supply.
Applications
- Mobile phones
- Digital still cameras (DSC)
- Battery-powered equipment
- Portable media players
Key features
- Input voltage from 1.5 to 5.5 V
- Very low quiescent current: 1.0 μA (typ.) at no load, 1.4 μA (typ.) at 150 mA load, 1 nA (typ.) in OFF mode, 200 nA max. in OFF mode at 125 °C
- Output voltage tolerance: ± 2% at 25 °C
- 150 mA guaranteed output current
- Wide range of output voltages: 0.8 V to 3.3 V in 100 mV steps
- Logic-controlled electronic shutdown
- Compatible with ceramic capacitor (Cout = 1 μF)
- Internal current and thermal limit
- Temperature range: from -40 °C to 125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7A0533PDBVR#C493453TI · SOT-23-5 | TI | SOT-23-5 | 3,540 | ₹39.02 · 3,540 in stock | View |
 | H7233-1M5R#C2965594Siproin · SOT-23-5 | Siproin | SOT-23-5 | 4,635 | ₹10.40 · 4,635 in stock | View |
 | SL7603P33M5R#C2980825Slkor · SOT-23-5 | Slkor | SOT-23-5 | 2,710 | ₹18.10 · 2,710 in stock | View |
 | SSP7603P33M5R#C411031Siproin · SOT-23-5 | Siproin | SOT-23-5 | 22,395 | ₹13.93 · 22,395 in stock | View |
 | TPS78233DDCR#C14878TI · TSOT-23-5 | TI | TSOT-23-5 | 12,187 | ₹66.70 · 12,187 in stock | View |
