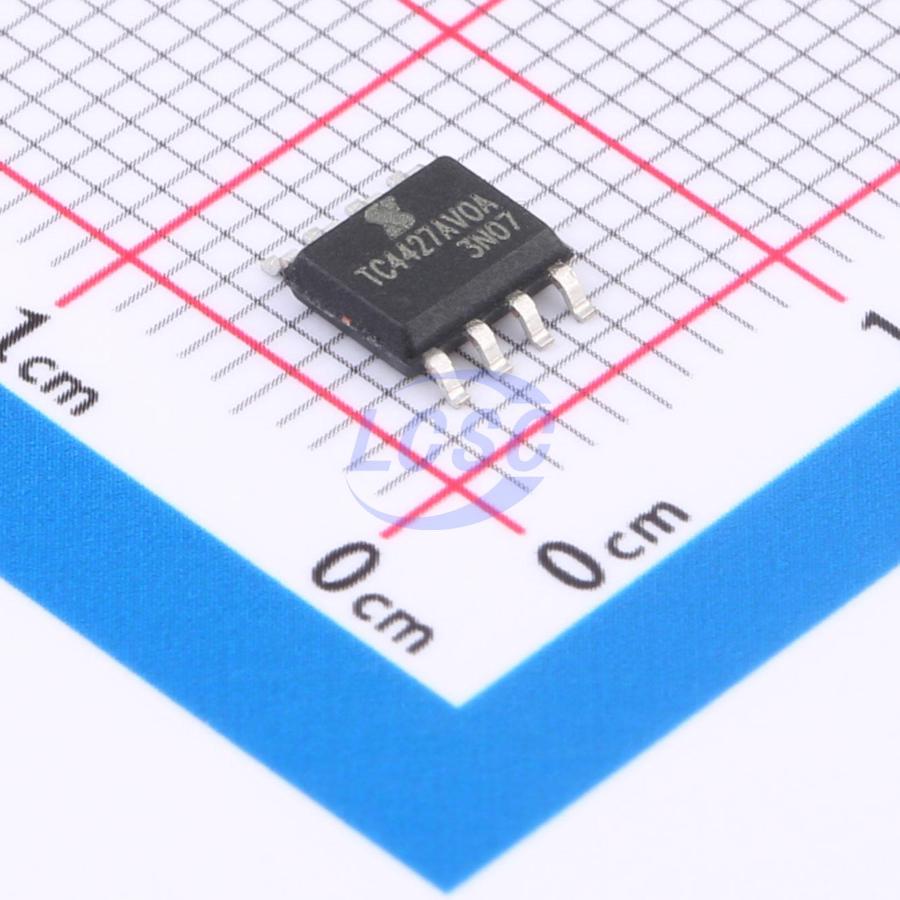

TC4427AVOA713
Low Side Gate Driver IC MOSFET IGBT SOIC-8
Dual-channel 2A ultra-high-speed power switch driver
- Manufacturer
- JSMSEMI
- Manufacturer part #
- TC4427AVOA713
- Store part #
- C5804605
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,813 in stock
#C5804605
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.54 | ₹76.54 |
| 10+ | ₹62.45 | ₹624.50 |
| 30+ | ₹55.51 | ₹1,665.30 |
| 100+ | ₹48.57 | ₹4,857.00 |
| 500+ | ₹44.24 | ₹22,120.00 |
| 1,000+ | ₹42.07 | ₹42,070.00 |
1 × ₹76.54
₹76.54
excl. GST
₹90.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TC4427AVOA713
₹76.54 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 2A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
The TC4427AVOA is a power switch series driver. It features matched rise and fall times when charging and discharging the gates of power switches. It offers high latch resistance under any conditions within its rated power and voltage range. It will not be damaged by noise spikes of up to 5V (either polarity) on the ground pin. It can accept reverse currents of up to 500mA forced back into its output without damage or logic upset. All terminals are fully protected against ESD up to 2.0kV. Available in an SOIC8 package, it operates over a temperature range of -40°C to 125°C.
Applications
- Switching power supplies, switch-mode converters
- Line drivers
- Pulse transformer drive
- Driving MOSFETs and IGBTs
- Motor control
- Pulse generators
- Power switches
- DC-DC converters
- Class D switching amplifiers
Key features
- Latch protection: withstands 0.5A reverse current
- Input logic protection down to -10V
- Low output impedance
- Dual-channel driver in single chip
- Peak output current: 2A
- Operating range: 4.5V~20V
- Maximum input voltage up to 5V
- High capacitive load drive capability: switching time < 25ns at 1nF load
- Matched rise/fall times
- Propagation delay: 40ns
- Wide temperature range: -40°C~125°C
- Turn-on/turn-off delay characteristics: Ton/Toff = 70ns/70ns
- RoHS compliant
- SOIC8
