TOSHIBADatasheet (PDF)

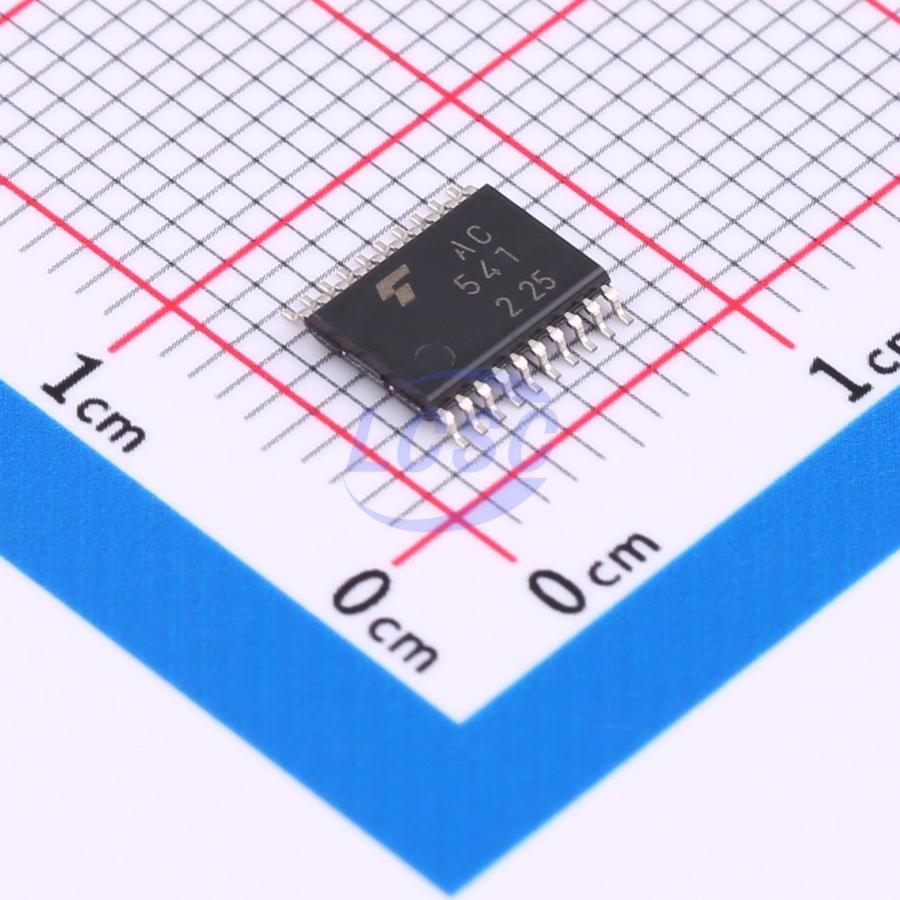

TC74AC541FT(EL)
2V~5.5V 8 1 4.7ns@5V,50pF TSSOP20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP20ROHS CompliantActive
Octal Bus Buffer, Inverting/Non-Inverting, 3-State
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC74AC541FT(EL)
- Store part #
- C7421335
- Package / case
- TSSOP20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,991 in stock
#C7421335
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹127.92 | ₹127.92 |
| 10+ | ₹104.52 | ₹1,045.20 |
| 30+ | ₹92.81 | ₹2,784.30 |
| 100+ | ₹81.10 | ₹8,110.00 |
| 500+ | ₹74.15 | ₹37,075.00 |
| 1,000+ | ₹70.48 | ₹70,480.00 |
1 × ₹127.92
₹127.92
excl. GST
₹150.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TC74AC541FT(EL)
₹127.92 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74AC
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 4.7ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.265 g
Overview
The TC74AC540/TC74AC541 are advanced high speed CMOS OCTAL BUS BUFFERs fabricated with silicon gate and double-layer metal wiring C²MOS technology. They achieve the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The TC74AC540 is an inverting type, and the TC74AC541 is a non-inverting type. When either G1 or G2 are high, the terminal outputs are in the high-impedance state. All inputs are equipped with protection circuits against static discharge or transient excess voltage.
Key features
- High speed: tpd = 4.0 ns (typ.) at VCC = 5 V
- Low power dissipation: Icc = 8 μA (max) at Ta = 25℃
- High noise immunity: VNI H = VNI L = 28% VCC (min)
- Symmetrical output impedance: IΔIOHI = IOL = 24 mA (min)
- Capability of driving 50 Ω transmission lines
- Balanced propagation delays: tpLH ≃ tpHL
- Wide operating voltage range: VCC (opr) = 2 to 5.5 V
- Pin and function compatible with 74F540/541
