TOSHIBADatasheet (PDF)

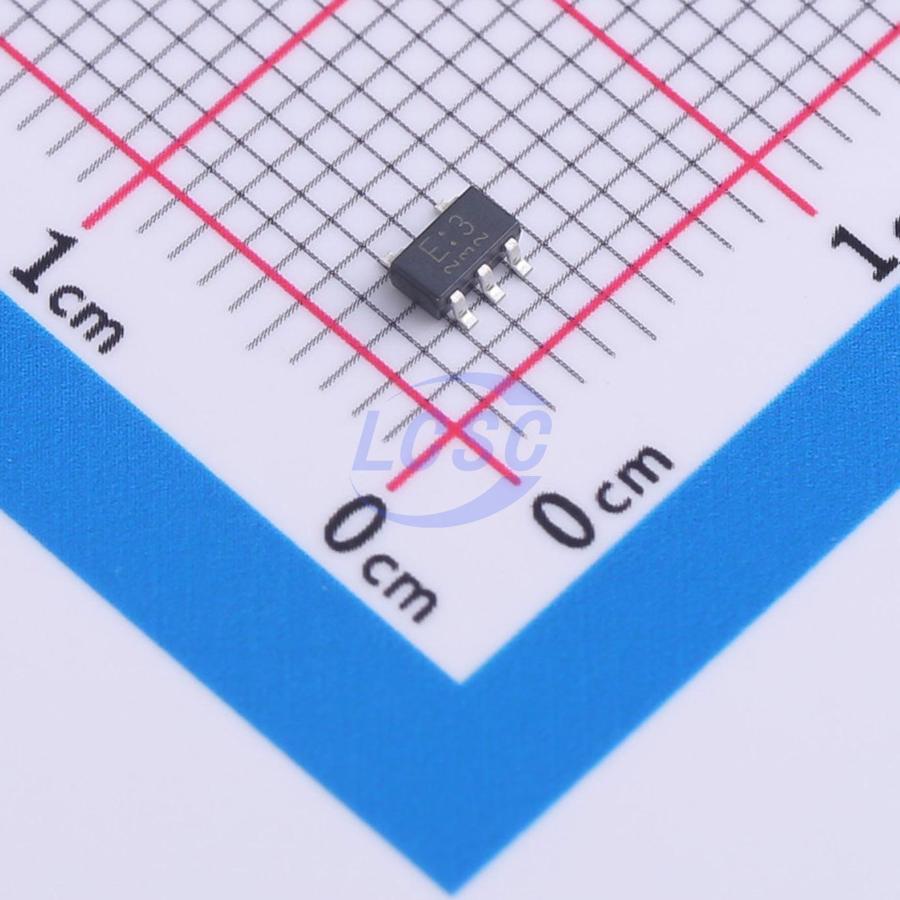

TC7S02F,LF
NOR Gate IC 1 Channel SC-74A(SOT-753)
SC-74A(SOT-753)ROHS3 CompliantActive
2-Input NOR Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7S02F,LF
- Store part #
- C7121121
- Package / case
- SC-74A(SOT-753)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C7121121
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.78 | ₹88.90 |
| 50+ | ₹15.65 | ₹782.50 |
| 150+ | ₹14.74 | ₹2,211.00 |
| 500+ | ₹13.60 | ₹6,800.00 |
| 3,000+ | ₹13.10 | ₹39,300.00 |
| 6,000+ | ₹12.79 | ₹76,740.00 |
5 × ₹17.78
₹88.90
excl. GST
₹104.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7S02F,LF
₹88.90 for 5 + GST
Specifications
- Logic Family
- TC7S Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 0V~100mV;180mV~260mV
- Propagation Delay
- 17ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 5.68V~5.8V;5.9V~6V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
Key features
- High Speed: tpd = 7 ns (typ.) at VCC = 5 V
- Low power dissipation: ICC = 1 μA (max) at Ta = 25°C
- High noise immunity: VNH = VNL = 28% VCC (min)
- Output drive capability: 5 LSTTL Loads
- Symmetrical Output Impedance: |IOH| = |IOL| = 2 mA (min)
- Balanced propagation delays: tPLH ≈ tPHL
- Wide operating voltage range: VCC = 2 to 6 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NC7S02M5X#C112083onsemi · SOT-23-5 | onsemi | SOT-23-5 | 1,160 | ₹11.96 · 1,160 in stock | View |
 | MC74HC1G02DTT1G-TP#C52205118TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,610 | ₹5.72 · 2,610 in stock | View |
 | 74HC1G02GV#C52205092TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,080 | ₹5.77 · 4,080 in stock | View |
 | 74HC1G02GV,125#C546690Nexperia · SC-74A | Nexperia | SC-74A | 55 | ₹12.56 · 55 in stock | View |
 | SN74AHC1G02DBVR#C7463TI · SOT-23-5 | TI | SOT-23-5 | 14,710 | ₹13.40 · 14,710 in stock | View |
