TOSHIBADatasheet (PDF)

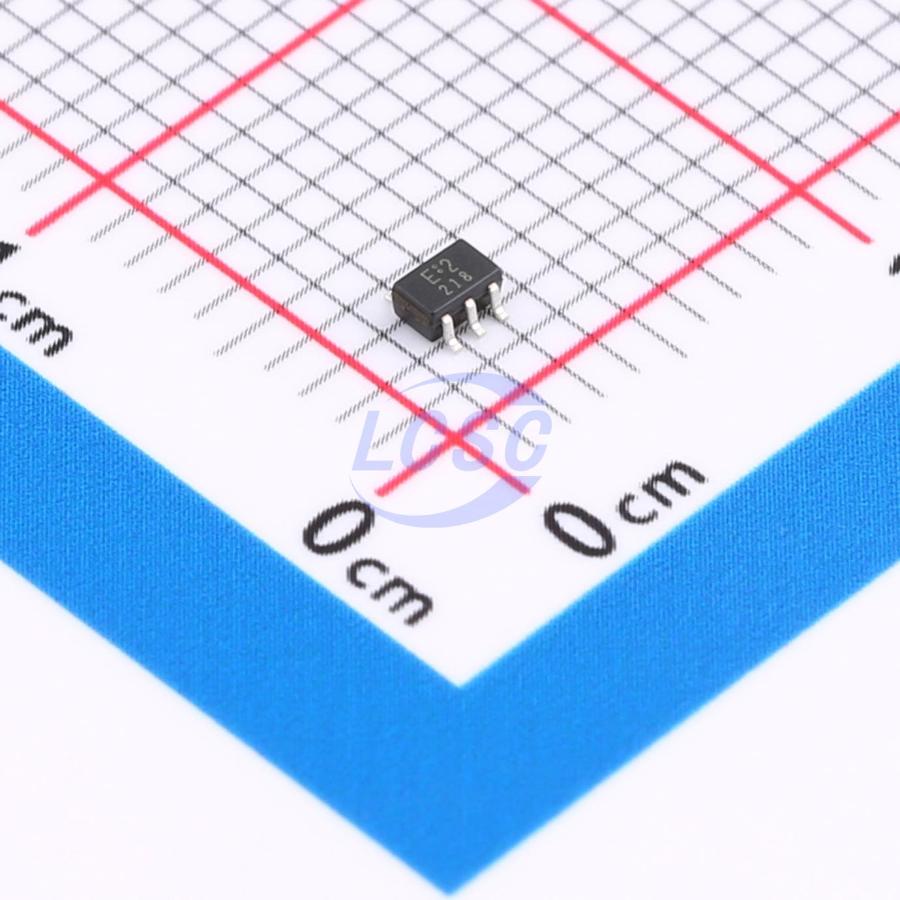

TC7S08FU,LF
AND Gate IC SSOP-5-1.3mm
SSOP-5-1.3mmROHS3 CompliantActive
2-Input AND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7S08FU,LF
- Store part #
- C146362
- Package / case
- SSOP-5-1.3mm
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,510 in stock
#C146362
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.22 | ₹81.10 |
| 50+ | ₹12.78 | ₹639.00 |
| 150+ | ₹11.05 | ₹1,657.50 |
| 500+ | ₹9.76 | ₹4,880.00 |
| 3,000+ | ₹8.14 | ₹24,420.00 |
| 6,000+ | ₹7.62 | ₹45,720.00 |
5 × ₹16.22
₹81.10
excl. GST
₹95.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7S08FU,LF
₹81.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Logic Family
- TC7S Series
- Output Logic Level - High
- 1.9V;4.18V;5.68V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 2mA
- Number of Channels
- 2;1
- Propagation Delay
- 21ns@6V,50pF
- Output Logic Level - Low
- 100mV;260mV
- Current - Output Low(IOL)
- 2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Key features
- High Speed : tpd = 7ns (typ.) at VCC = 5V
- Low power dissipation : lcc = 1 μA (max) at Ta = 25℃
- High noise immunity : VNH = VNL = 28% VCC (min)
- Output drive capability : 5 LSTTL Loads
- Symmetrical Output Impedance IIOHI = IIOLI = 2mA (min)
- Balanced propagation delays : tPLH ≒ tPHL
- Wide operating voltage range : VCC = 2 to 6V
