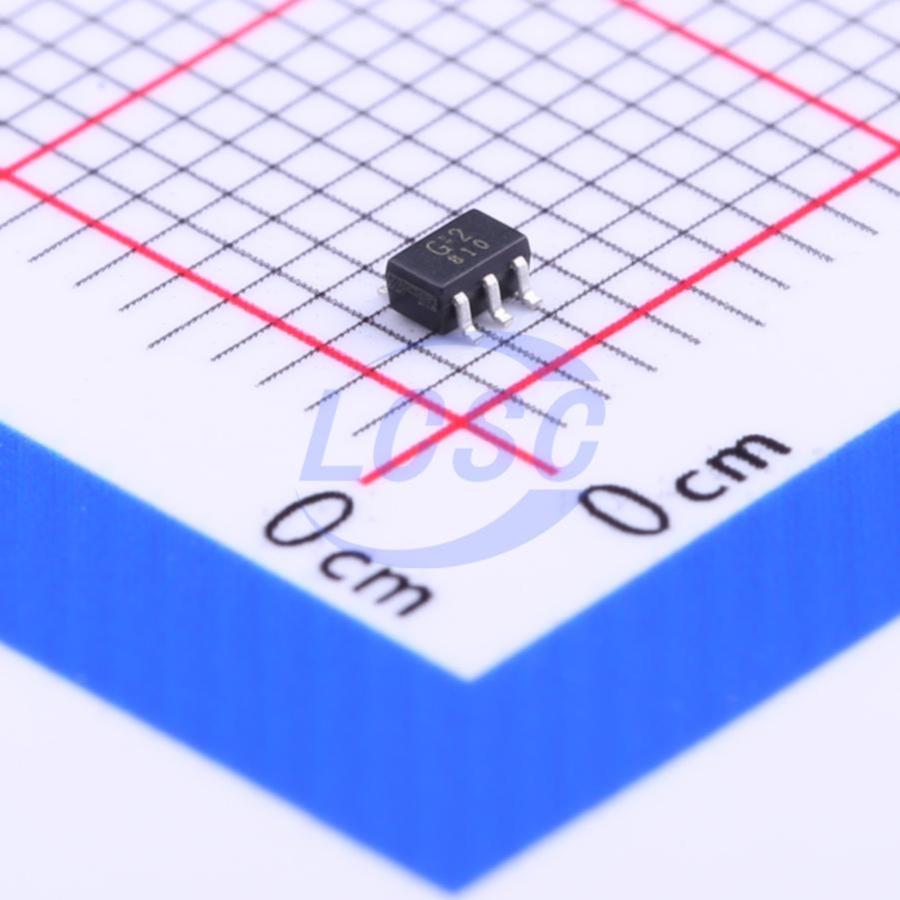

TC7SET08FU,LJ(CT
TTL-compatible CMOS 4.5V~5.5V 9ns@5V,50pF 2uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive
CMOS Digital Integrated Circuits 2-Input AND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SET08FU,LJ(CT
- Store part #
- C92250
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,545 in stock
#C92250
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.78 | ₹48.90 |
| 50+ | ₹8.52 | ₹426.00 |
| 150+ | ₹7.89 | ₹1,183.50 |
| 500+ | ₹7.41 | ₹3,705.00 |
| 3,000+ | ₹7.03 | ₹21,090.00 |
| 6,000+ | ₹6.84 | ₹41,040.00 |
5 × ₹9.78
₹48.90
excl. GST
₹57.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SET08FU,LJ(CT
₹48.90 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- TC7SET Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 100mV;360mV;440mV;550mV
- Propagation Delay
- 9ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 4.4V~4.5V;3.94V;3.8V;3.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
2-Input AND Gate
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T(opr) = -40 to 125°C
- High speed operation: t(pd) = 4.2 ns (typ.) (V(CC) = 5.0 V, C(L) = 15 pF)
- Low power dissipation: I(CC) = 2.0 μA (max) (T(a) = 25 °C)
- Compatible with TTL outputs: V(IL) = 0.8 V (max), V(IH) = 2.0 V (min)
- 5.5 V tolerant inputs
- Balanced Propagation Delay: t(pLH) ≈ t(pHL)
