TOSHIBADatasheet (PDF)

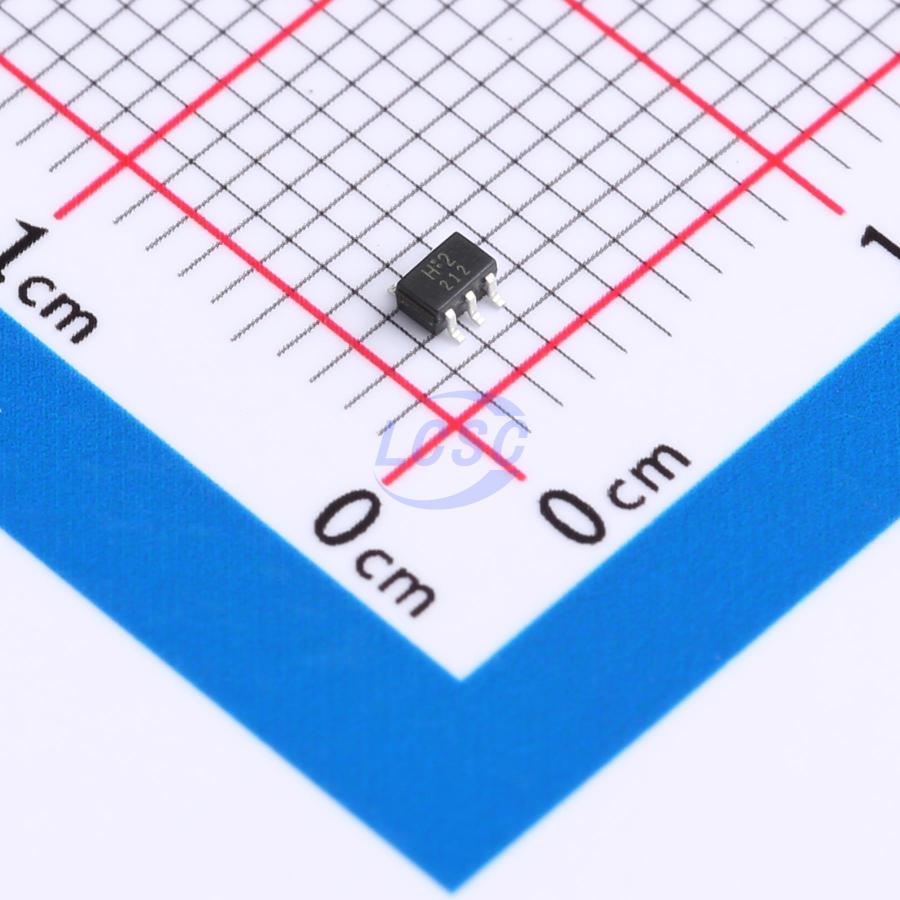

TC7SH08FU,LJ(CT
2uA 2V~5.5V 4.3ns@5V,15pF USV Gates and Inverters RoHS
USVROHS3 CompliantActive
2-Input AND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SH08FU,LJ(CT
- Store part #
- C5156525
- Package / case
- USV
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,960 in stock
#C5156525
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.72 | ₹87.20 |
| 100+ | ₹6.84 | ₹684.00 |
| 300+ | ₹5.90 | ₹1,770.00 |
| 3,000+ | ₹5.20 | ₹15,600.00 |
| 6,000+ | ₹4.63 | ₹27,780.00 |
| 9,000+ | ₹4.35 | ₹39,150.00 |
10 × ₹8.72
₹87.20
excl. GST
₹102.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SH08FU,LJ(CT
₹87.20 for 10 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V
- Input Logic Level - Low
- 500mV
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 2;1
- Current - Output High(IOH)
- 8mA
- Propagation Delay
- 4.3ns@5V,15pF
- Output Logic Level - Low
- 360mV
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.07 g
Overview
2-Input AND Gate
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T_opr = -40 to 125 ℃
- High speed operation: t_pd = 4.3 ns (typ.) (V_CC = 5.0 V, C_L = 15 pF)
- Low power dissipation: I_CC = 2.0 μA (max) (T_a = 25 ℃)
- High noise immunity: V_NIH = V_NIL = 28 % V_CC (min)
- 5.5 V tolerant inputs
- Wide operating voltage range: V_CC = 2.0 to 5.5 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EM74AHCT1G08GW#C49188266EnergyMath · SOT-353 | EnergyMath | SOT-353 | 3,000 | ₹10.20 · 3,000 in stock | View |
 | AIP74AHC1G08GC353.TR#C6798234Wuxi I-core Elec · SOT353 | Wuxi I-core Elec | SOT353 | 735 | ₹13.94 · 735 in stock | View |
 | EM74AHC1G08GW#C49188279EnergyMath · SOT-353 | EnergyMath | SOT-353 | 2,900 | ₹6.80 · 2,900 in stock | View |
 | SN74AHC1G08DC(LX)#C22469964lingxingic · SOT-353 | lingxingic | SOT-353 | 740 | ₹5.97 · 740 in stock | View |
 | CJ74AHC1G08R5N#C52145685JSCJ · SOT-353 | JSCJ | SOT-353 | 2,745 | ₹10.68 · 2,745 in stock | View |
