TOSHIBADatasheet (PDF)

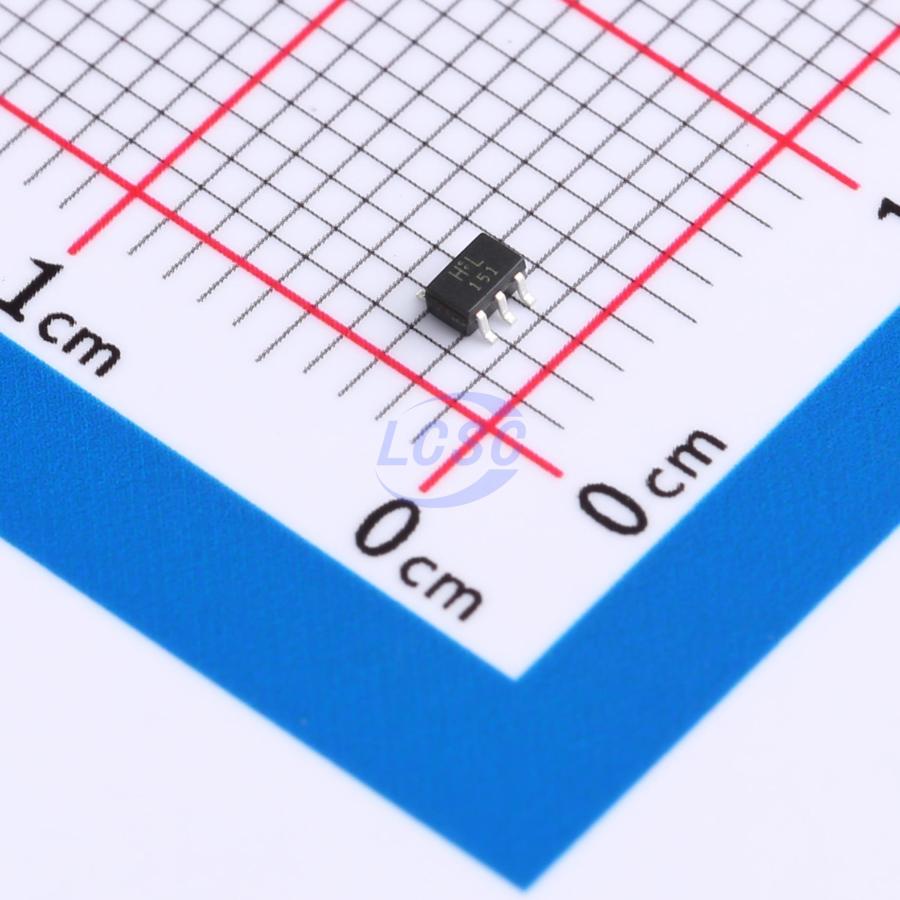

TC7SH17FU,LJ(CT
1 Element 1 Bit per Element SOT-353
SOT-353ROHS3 CompliantActive
CMOS Digital Integrated Circuits
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SH17FU,LJ(CT
- Store part #
- C5156523
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,435 in stock
#C5156523
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.89 | ₹59.45 |
| 50+ | ₹9.37 | ₹468.50 |
| 150+ | ₹8.10 | ₹1,215.00 |
| 500+ | ₹7.16 | ₹3,580.00 |
| 3,000+ | ₹6.07 | ₹18,210.00 |
| 6,000+ | ₹5.70 | ₹34,200.00 |
5 × ₹11.89
₹59.45
excl. GST
₹70.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SH17FU,LJ(CT
₹59.45 for 5 + GST
Specifications
- Current - Output High(IOH)
- 8mA
- Input type
- Schmitt trigger
- Voltage - Supply
- 2V~5.5V
- Series
- TC7SH
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 2uA
- Propagation Delay
- 5.5ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.069 g
Overview
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125 ℃
- High speed operation: tpd = 5.5 ns (typ.) (VCC = 5.0 V, CL = 15 pF)
- Low power dissipation: ICC = 2.0 μA (max) (Ta = 25 ℃)
- Wide operating voltage range: VCC = 2.0 to 5.5 V
- High noise immunity: VNI H = VNI L = 28% VCC (min)
- 5.5 V tolerant inputs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TC7SH17FU(TE85L,F)#C5156517TOSHIBA · SOT-353 | TOSHIBA | SOT-353 | 220 | ₹35.06 · 220 in stock | View |
 | 74AHC1G125QSE-7#C3756835DIODES · SOT-353 | DIODES | SOT-353 | 20 | ₹8.88 · 20 in stock | View |
 | 74AHC1G126GW-TP#C46472323TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,220 | ₹5.46 · 1,220 in stock | View |
 | SN74AHC1G126DCKR-TP#C46472324TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,620 | ₹5.69 · 1,620 in stock | View |
 | 74AHC1G17GW-Q100H#C554298Nexperia · TSSOP-5 | Nexperia | TSSOP-5 | 890 | ₹11.40 · 890 in stock | View |
