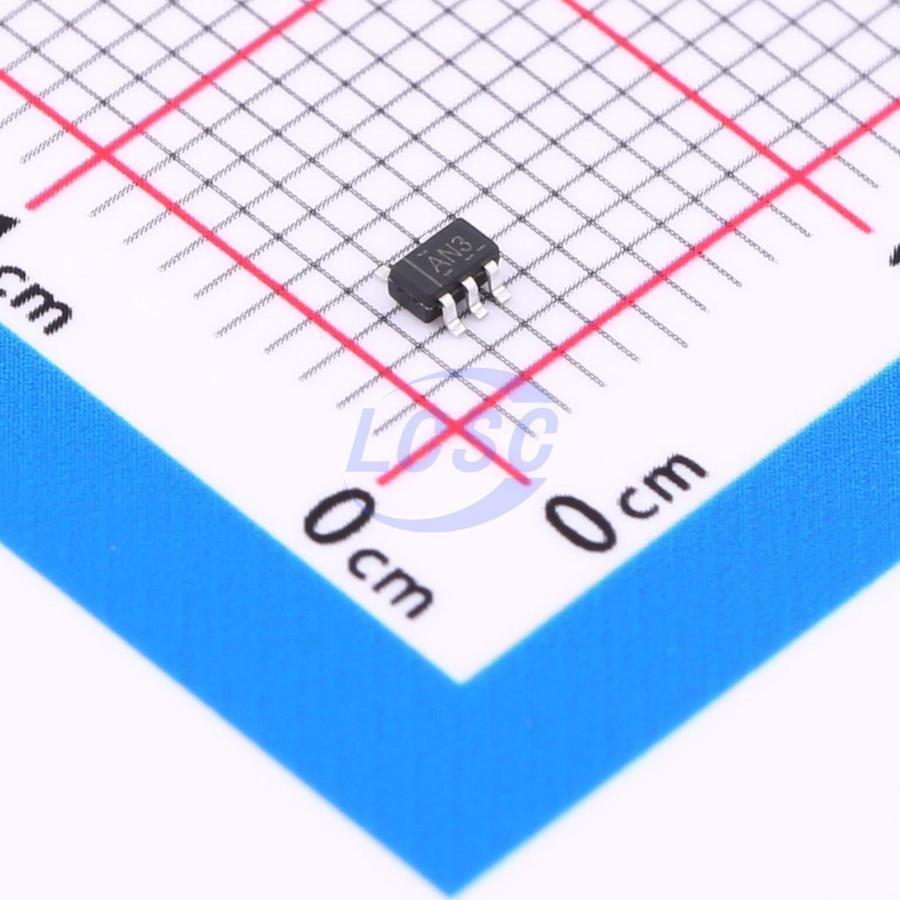

SN74AHC1G126DCKR-TP
Schmitt trigger 2V~5.5V 1 1 4.7ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
Single Buffer Gate with 3-State Output
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AHC1G126DCKR-TP
- Store part #
- C46472324
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,620 in stock
#C46472324
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.69 | ₹56.90 |
| 100+ | ₹4.46 | ₹446.00 |
| 300+ | ₹3.84 | ₹1,152.00 |
| 3,000+ | ₹3.37 | ₹10,110.00 |
| 6,000+ | ₹3.00 | ₹18,000.00 |
| 9,000+ | ₹2.82 | ₹25,380.00 |
10 × ₹5.69
₹56.90
excl. GST
₹67.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G126DCKR-TP
₹56.90 for 10 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 8mA
- Input type
- Schmitt trigger
- Series
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 4.7ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The SN74AHC1G126 is a single non-inverting buffer/bus driver with a 3-state output. The output enters a high impedance state when a LOW-level is applied to the output enable (OE) pin. The device is designed for operation with a power supply range of 2.0V to 5.5V.
Applications
- General Purpose Logic
- PCs, networking, notebooks, netbooks, PDAs
- Computer peripherals, hard drives, CD/DVD ROM
- TV, DVD, DVR, set top box
- Personal Navigation / GPS
- MP3 players, Cameras, Video Recorders
Key features
- Supply Voltage Range from 2.0V to 5.5V
- ±8 mA Output Drive at 5.0V
- CMOS low power consumption
- Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for Slower Input Rise and Fall Time
- ESD Protection per JESD 22 Exceeds 200-V Machine Model (A115-A) Exceeds 2000-V Human Body Model (A114-A) Exceeds 1000-V Charged Device Model (C101C)
- Latch-Up Exceeds 100mA per JESD 78, Class II
- SOT23-5 and SOT353: Assembled with “Green" Molding Compound (no Br, Sb)
- Lead Free Finish / RoHS Compliant
