TOSHIBADatasheet (PDF)

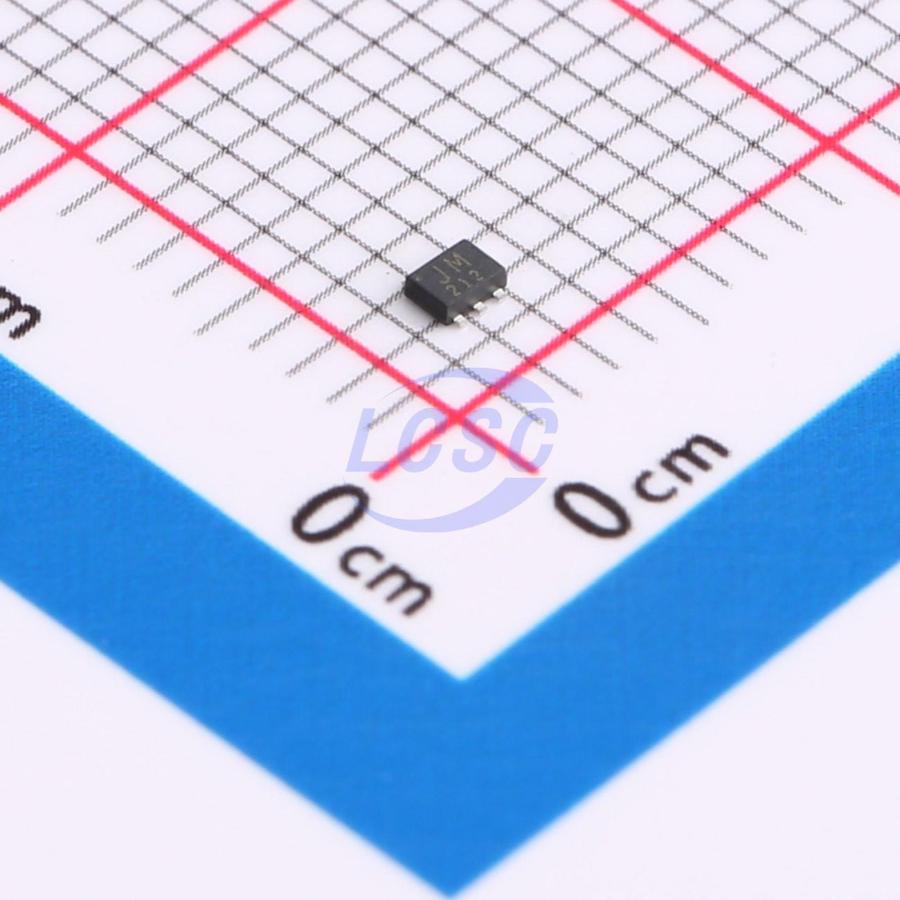

TC7SZ07FE,LJ(CT
Open Drain Output SOT-553-5
SOT-553-5ROHS3 CompliantActive
CMOS Digital Integrated Circuits
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SZ07FE,LJ(CT
- Store part #
- C2675504
- Package / case
- SOT-553-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,390 in stock
#C2675504
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.92 | ₹134.60 |
| 50+ | ₹23.72 | ₹1,186.00 |
| 150+ | ₹22.35 | ₹3,352.50 |
| 500+ | ₹20.64 | ₹10,320.00 |
| 2,500+ | ₹19.87 | ₹49,675.00 |
| 4,000+ | ₹19.42 | ₹77,680.00 |
5 × ₹26.92
₹134.60
excl. GST
₹158.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TC7SZ07FE,LJ(CT
₹134.60 for 5 + GST
Specifications
- Function
- Power-off isolation
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 2uA
- Propagation Delay
- 2.3ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125 ℃
- High output current: ±24 mA (min) at VCC = 3.0 V
- Super high speed operation: tpzL = 2.3 ns (typ.) at VCC = 5.0 V, CL = 50 pF
- Operation voltage range: VCC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V VCC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G07DRLR#C183013TI · SOT-553-5 | TI | SOT-553-5 | 15 | ₹15.74 · 15 in stock | View |
 | TC7SZ34FE,LJ(CT#C2675654TOSHIBA · SOT-553-5 | TOSHIBA | SOT-553-5 | 220 | ₹25.39 · 220 in stock | View |
 | 74LVC1G126Z-7#C842518DIODES · SOT-553-5 | DIODES | SOT-553-5 | 10 | ₹12.21 · 10 in stock | View |
 | TC7SZ17FE,LJ(CT#C2676042TOSHIBA · SOT-553-5 | TOSHIBA | SOT-553-5 | 3,435 | ₹13.45 · 3,435 in stock | View |
 | TP74LVC1G07X5#C48543227TECH PUBLIC · SOT-553 | TECH PUBLIC | SOT-553 | 500 | ₹11.66 · 500 in stock | View |
