TOSHIBADatasheet (PDF)

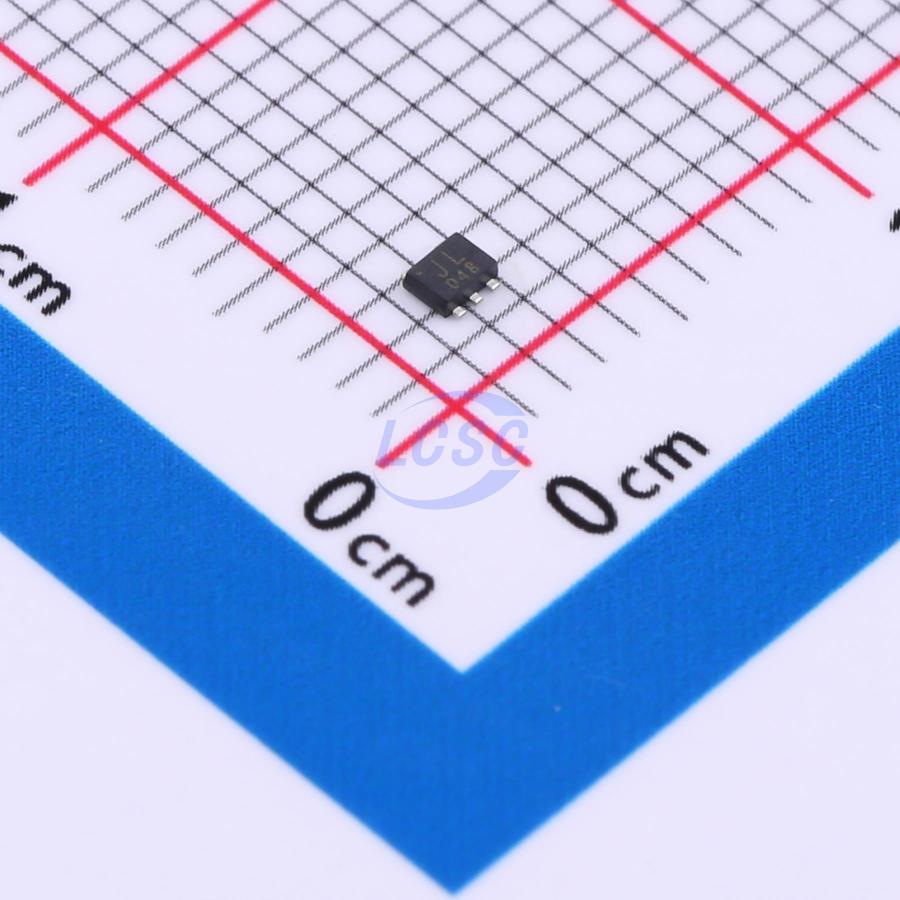

TC7SZ17FE,LJ(CT
nan
SOT-553-5ROHS3 CompliantActive
CMOS Digital Integrated Circuits Schmitt Buffer
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SZ17FE,LJ(CT
- Store part #
- C2676042
- Package / case
- SOT-553-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,435 in stock
#C2676042
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.45 | ₹67.25 |
| 50+ | ₹11.52 | ₹576.00 |
| 150+ | ₹10.69 | ₹1,603.50 |
| 500+ | ₹9.66 | ₹4,830.00 |
| 2,500+ | ₹9.21 | ₹23,025.00 |
| 4,000+ | ₹8.93 | ₹35,720.00 |
5 × ₹13.45
₹67.25
excl. GST
₹79.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TC7SZ17FE,LJ(CT
₹67.25 for 5 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 32mA
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 2uA
- Propagation Delay
- 3.7ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125 ℃
- High output current: ±24 mA (min) at VCC = 3.0 V
- Super high speed operation: tpd = 3.7 ns (typ.) at VCC = 5.0 V, CL = 50 pF
- Operation voltage range: VCC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V VCC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NL17SZ17XV5T2G#C152502onsemi · SOT-553-5 | onsemi | SOT-553-5 | 95 | ₹13.96 · 95 in stock | View |
 | TC7SZ34FE,LJ(CT#C2675654TOSHIBA · SOT-553-5 | TOSHIBA | SOT-553-5 | 220 | ₹25.39 · 220 in stock | View |
 | SN74LVC1G34DRLR#C2872902TI · SOT-553-5 | TI | SOT-553-5 | 720 | ₹25.56 · 720 in stock | View |
 | SN74LVC1G17DRLR#C2652096TI · SOT-553-5 | TI | SOT-553-5 | 1,208 | ₹60.01 · 1,208 in stock | View |
 | SN74LVC1G125DRLR#C882831TI · SOT-5X3-5 | TI | SOT-5X3-5 | 20 | ₹50.05 · 20 in stock | View |
