TOSHIBADatasheet (PDF)

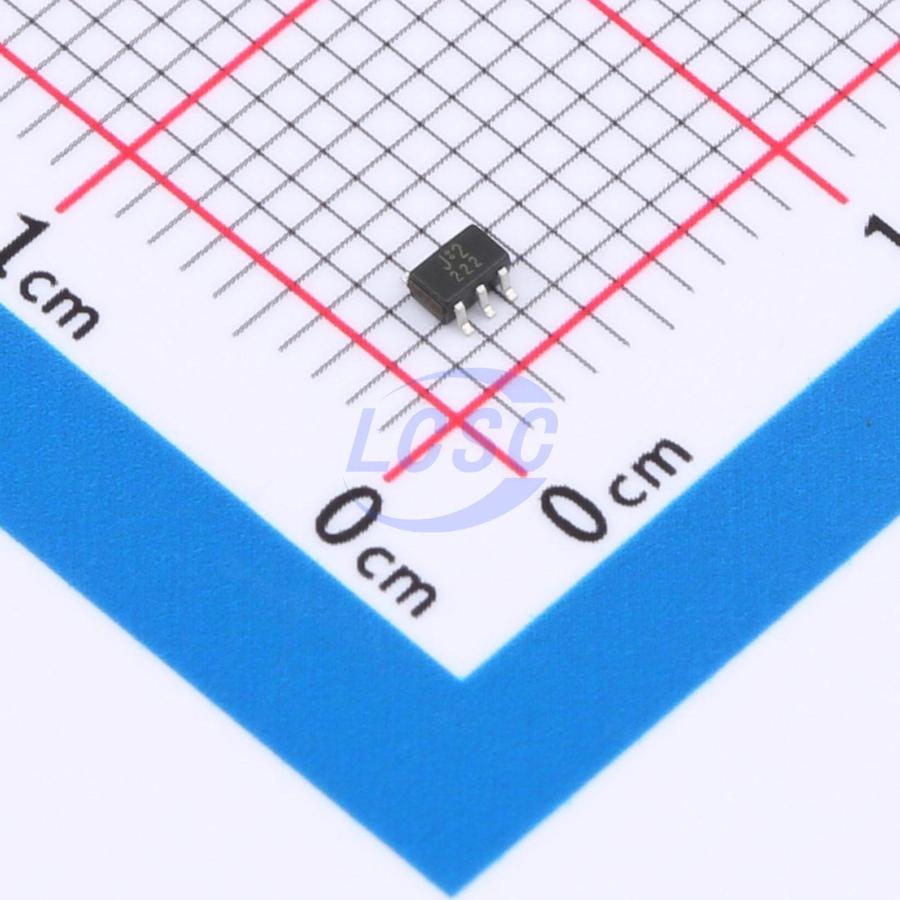

TC7SZ08FU,LXGJ(CT
2uA 1.65V~5.5V 4.1ns@5V,50pF SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
2-Input AND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SZ08FU,LXGJ(CT
- Store part #
- C7421347
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,280 in stock
#C7421347
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.01 | ₹90.10 |
| 100+ | ₹7.05 | ₹705.00 |
| 300+ | ₹6.09 | ₹1,827.00 |
| 3,000+ | ₹5.34 | ₹16,020.00 |
| 6,000+ | ₹4.76 | ₹28,560.00 |
| 9,000+ | ₹4.47 | ₹40,230.00 |
10 × ₹9.01
₹90.10
excl. GST
₹106.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SZ08FU,LXGJ(CT
₹90.10 for 10 + GST
Specifications
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.3V;2.9V;4.4V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2;1
- Propagation Delay
- 4.1ns@5V,50pF
- Output Logic Level - Low
- 550mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
2- Input AND Gate
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125 ℃
- High output current: ±24 mA (min) at VCC = 3.0V
- Super high speed operation: tpd = 2.7ns (typ.) at VCC = 5.0V, CL = 50 pF
- Operation voltage range: VCC = 1.65 to 5.5V
- 5.5V tolerant inputs
- 5.5V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3V VCC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TC7SZ08FU(TE85L,JF#C23541264TOSHIBA · SOT-353 | TOSHIBA | SOT-353 | 2,825 | ₹18.50 · 2,825 in stock | View | |
 | Aip74LVC1G08GC.TR#C5138997Wuxi I-core Elec · SOT-353 | Wuxi I-core Elec | SOT-353 | 300 | ₹12.49 · 300 in stock | View |
 | RS1G09XC5#C42459503RUNIC · SC-70-5 | RUNIC | SC-70-5 | 1,440 | ₹9.34 · 1,440 in stock | View |
 | EM74LVC1G08GW#C49188144EnergyMath · SOT-353 | EnergyMath | SOT-353 | 2,520 | ₹5.58 · 2,520 in stock | View |
 | RS1G08XC5#C2762290RUNIC · SOT-353 | RUNIC | SOT-353 | 2,410 | ₹13.06 · 2,410 in stock | View |
