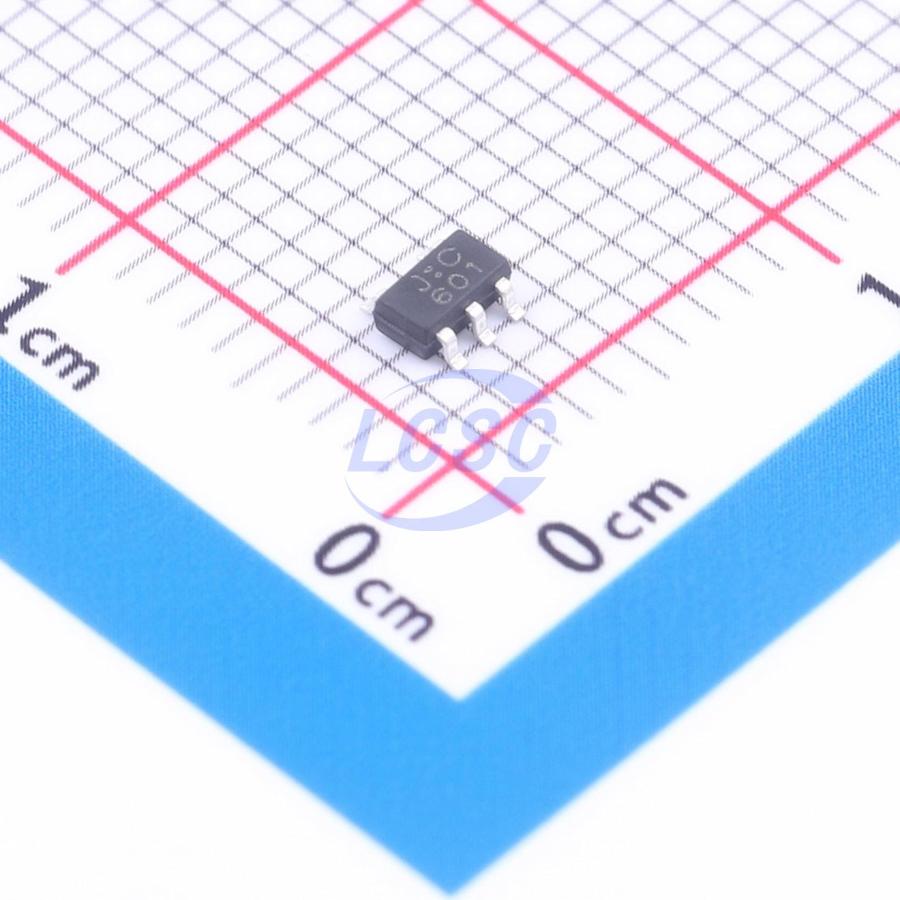

TC7SZ126F-TP
1.65V~5.5V 1 1 4ns@5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TC7SZ126F-TP
- Store part #
- C54195039
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C54195039
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.89 | ₹58.90 |
| 100+ | ₹4.63 | ₹463.00 |
| 300+ | ₹4.00 | ₹1,200.00 |
| 3,000+ | ₹3.53 | ₹10,590.00 |
| 6,000+ | ₹3.15 | ₹18,900.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.89
₹58.90
excl. GST
₹69.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SZ126F-TP
₹58.90 for 10 + GST
Specifications
- Current - Output High(IOH)
- 32mA
- Series
- TC7SZ
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 4ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
TC7SZ126 is a single bus buffer gate. The device is designed for 1.65 V to 5.5 V Vcc operating voltage and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. The TC7SZ126 is a single line driver with tri-state outputs. When the output enable input is low, the output is disabled. The TC7SZ126 is available in SOT23-5 and SOT353 packages.
Applications
- Cable Modem Termination Systems
- High-Speed Data Acquisition and Generation
- Motor Control: High Voltage
- Power Line Communication Modems
- SSD: Internal or External
- Video Broadcasting and Infrastructure: Scalable Platforms
- Video Broadcasting: IP-Based Multi-Format Transcoders
- Video Communication Systems
Key features
- Wide supply voltage range: 1.65 V to 5.5 V
- Maximum propagation delay TpD of 4.5 ns at Vcc = 3.3 V
- Low power consumption, maximum supply current Icc of 10 μA
- Output drive current of ±24 mA at Vcc = 3.3 V
- Latch-up performance exceeds 100 mA per JESD 78 Class II
- ESD protection exceeds JESD 22
- HBM ESD 2000 V (A114-A)
- CDM ESD 1000 V (C101)
- Operating temperature range: -40°C to 125°C
- Available packages: SOT23-5 and SOT353
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TC7SZ125F-TP#C54195037TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,930 | ₹5.81 · 2,930 in stock | View |
 | NC7SZ125M5X-TP#C42460214TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,330 | ₹7.57 · 1,330 in stock | View |
 | TP74LVC1G126S5#C42460145TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,865 | ₹10.97 · 2,865 in stock | View |
 | SN74LVC1G126DBVR-TP#C46472327TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 15,300 | ₹4.43 · 15,300 in stock | View |
 | 74LVC1G126GV-TP#C46472328TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,430 | ₹5.46 · 2,430 in stock | View |
