TDSEMICDatasheet (PDF)

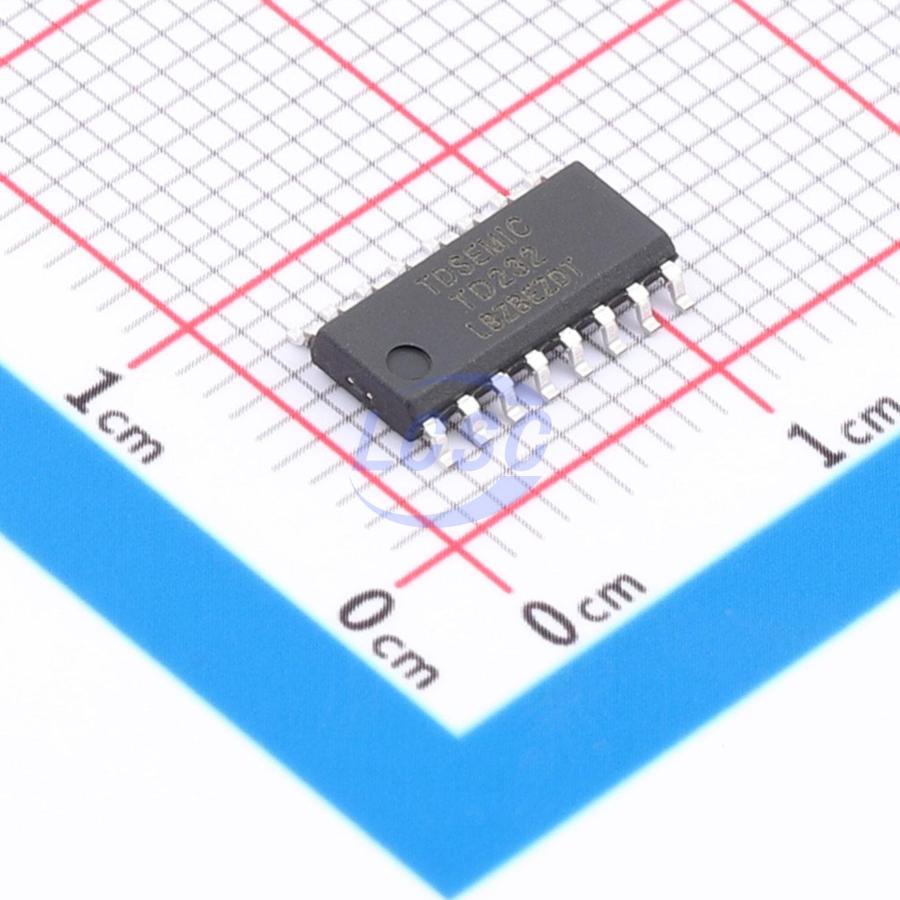

TD232DR
4.5V~5.5V Transceiver 140Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
5V Dual channel RS-232 Drivers/Receivers
- Manufacturer
- TDSEMIC
- Manufacturer part #
- TD232DR
- Store part #
- C46614321
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,995 in stock
#C46614321
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.01 | ₹140.05 |
| 50+ | ₹24.46 | ₹1,223.00 |
| 150+ | ₹22.94 | ₹3,441.00 |
| 500+ | ₹21.04 | ₹10,520.00 |
| 2,500+ | ₹20.19 | ₹50,475.00 |
| 4,000+ | ₹19.69 | ₹78,760.00 |
5 × ₹28.01
₹140.05
excl. GST
₹165.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TD232DR
₹140.05 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 140Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 14mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.29 g
Overview
TD232DR is a dual driver/receiver compliant with the RS-232 standard, operating from a single power supply. Its transmitter bipolar output voltage is generated by a built-in voltage multiplier, which uses four 1.0μF external capacitors. Designed for modern high-performance computing systems and high-speed electronic equipment, it enables highly reliable information exchange between remote nodes. Input voltage levels are compatible with standard CMOS and TTL levels.
Applications
- Portable computers
- Battery-powered RS-232 systems
- Interface conversion
- Low-power modems
- Terminals
Key features
- Output voltage levels compatible with CMOS and TTL IC input levels
- Complies with all EIA/TIA-232E and V.28/V.24 specifications
- Supply voltage range 5.5V
- Low input current: 1.0μA at 25℃
- Output current 30mA
- Available in SOP-16 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX232CDR-TD#C42422004TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 904 | ₹52.38 · 904 in stock | View |
 | MAX232DR-TD#C42422006TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 570 | ₹47.32 · 570 in stock | View |
 | MAX232EESE-TD#C42422008TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 5,230 | ₹53.78 · 5,230 in stock | View |
 | MAX232ESE-TD#C42422009TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 3,015 | ₹28.64 · 3,015 in stock | View |
 | MAX232IDR-TD#C42422010TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 2,220 | ₹33.13 · 2,220 in stock | View |
