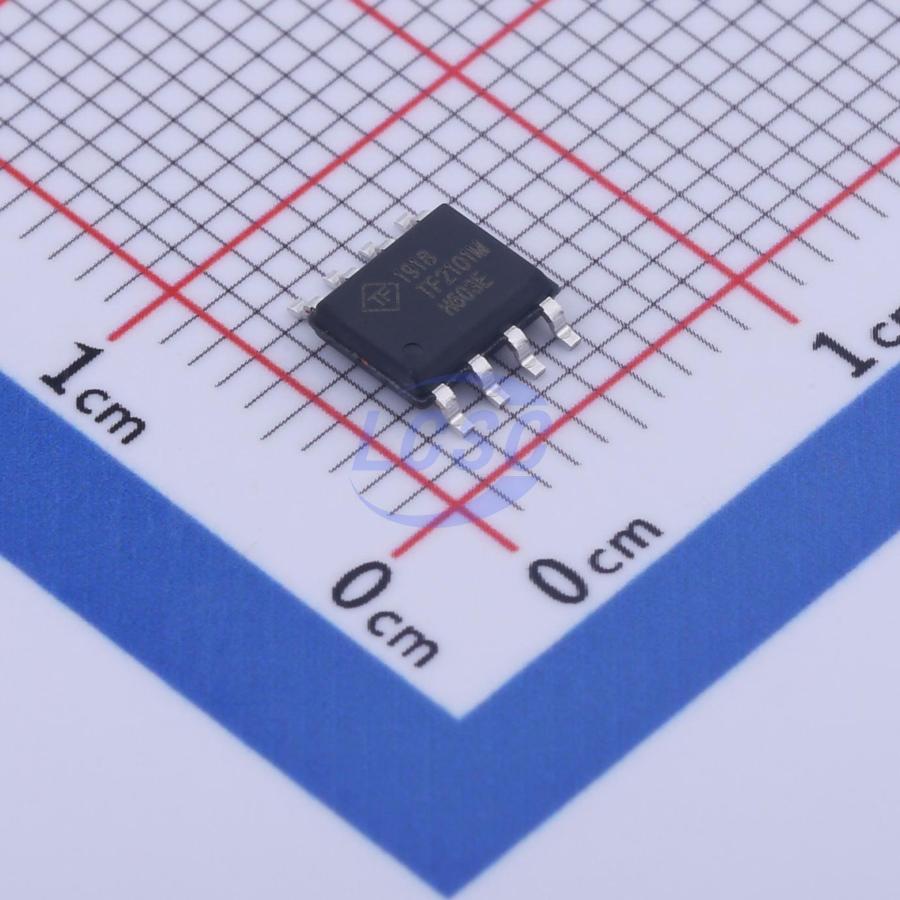

TF2101M-TAH
10V~20V 600mA 290mA SOIC-8 Gate Drivers
High-Side and Low-Side Gate Driver
- Manufacturer
- TFSS
- Manufacturer part #
- TF2101M-TAH
- Store part #
- C2683752
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,515 in stock
#C2683752
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.56 | ₹71.56 |
| 10+ | ₹55.72 | ₹557.20 |
| 30+ | ₹48.79 | ₹1,463.70 |
| 100+ | ₹40.34 | ₹4,034.00 |
| 500+ | ₹38.61 | ₹19,305.00 |
| 1,000+ | ₹36.21 | ₹36,210.00 |
1 × ₹71.56
₹71.56
excl. GST
₹84.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TF2101M-TAH
₹71.56 for 1 + GST
Specifications
- Low Level Delay Time
- 160ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 150uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side;High Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 35ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
Overview
The TF2101M is a high voltage, high speed gate driver capable of driving N-channel MOSFETs and IGBTs in a high-side/ low-side configuration. High voltage process enables the TF2101M’s high-side to switch to 600V in a bootstrap operation. The 50ns (max) propagation delay matching between the high and the low side drivers allows high frequency switching. The TF2101M logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) for easy interfacing with controlling devices. The driver outputs feature high pulse current buffers designed for minimum driver cross conduction. The low-side gate driver and logic share a common ground. The TF2101M is available in a space-saving 8-pin SOIC package and an 8-pin PDIP; the operating temperature extends from -40°C to +125°C.
Applications
- DC-DC Converters
- AC-DC Inverters
- Motor Controls
- Class D Power Amplifiers
Key features
- Floating high-side driver in bootstrap operation to 600V
- Drives two N-channel MOSFETs or IGBTs in high-side/ low-side configuration
- Outputs tolerant to negative transients
- Wide low-side gate driver and logic supply: 10V to 20V
- Logic inputs CMOS and TTL compatible (down to 3.3V)
- Schmitt triggered logic inputs with internal pull down
- Undervoltage lockout for VCC
- Space-saving SOIC-8 package available
- Extended temperature range: -40°C to +125°C
