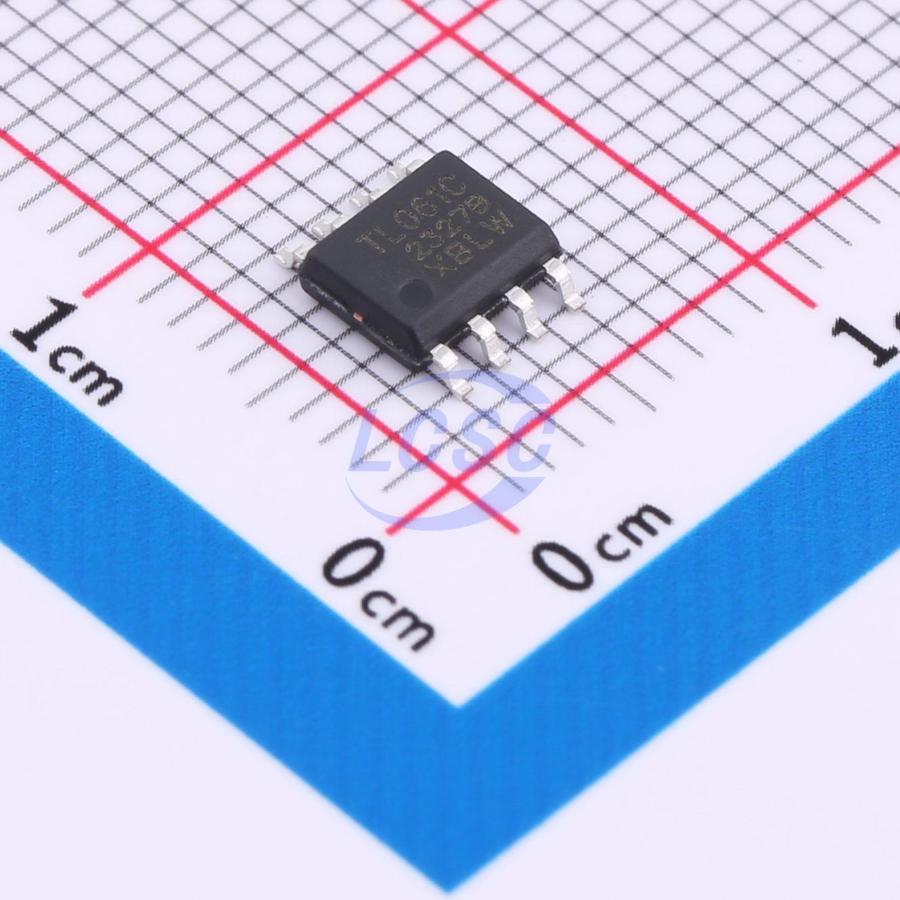

TL061CDTR(XBLW)
1 15mV 8V/us 85dB 200nA 1.4mA 3MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
Low Power JFET Single Operational Amplifiers
- Manufacturer
- XBLW
- Manufacturer part #
- TL061CDTR(XBLW)
- Store part #
- C19267464
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,080 in stock
#C19267464
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.57 | ₹92.85 |
| 50+ | ₹14.83 | ₹741.50 |
| 150+ | ₹12.95 | ₹1,942.50 |
| 500+ | ₹11.55 | ₹5,775.00 |
| 2,500+ | ₹10.43 | ₹26,075.00 |
| 5,000+ | ₹9.86 | ₹49,300.00 |
5 × ₹18.57
₹92.85
excl. GST
₹109.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL061CDTR(XBLW)
₹92.85 for 5 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 15mV
- Slew Rate
- 8V/us
- Input Offset Current(Ios)
- 30pA
- Operating Temperature
- -20℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 200nA
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Features
- Built-in compensation
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.206 g
Overview
Consisted of high voltage J- FET and bipolar transistors, the TL061 is a high speed J- FET single- channel operational amplifier, featured with high slew rate, low input offset and bias current and low offset voltage temperature rate. The TL061 provide DIP8 and SOP8 package forms.
Applications
- Computers
- Personal electronics
- Tablets
- White goods
Key features
- Very Low Power Consumption
- Wide Common- Mode And Differential Voltage Ranges
- Low Input Bias And Offset Currents
- Output Short- Circuit Protection
- High Input Impedance
- Internal Frequency Compensation
- High Slew Rate
- High Gain- Bandwidth
