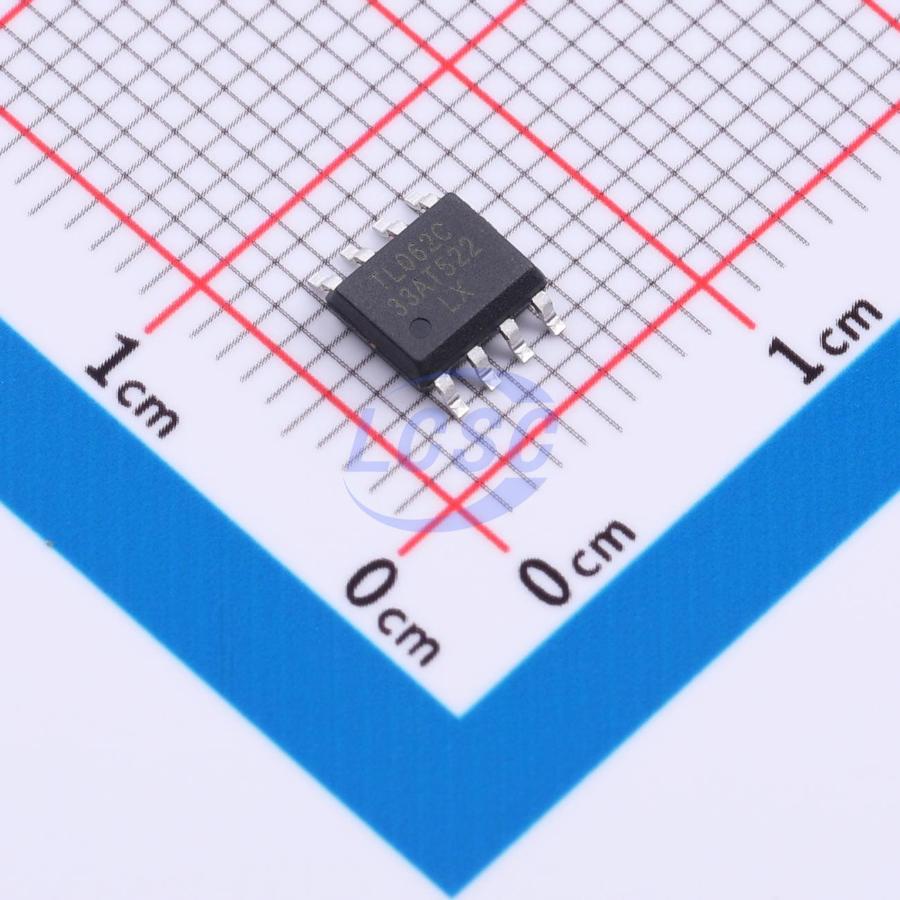

lingxingic

TL062CDR(LX)

2 3mV 3.5V/us 400pA 86dB 1MHz 250uA SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Manufacturer: lingxingic
Manufacturer part #: TL062CDR(LX)
Store part #: C49396711
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,250 in stock

#C49396711

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹17.25	₹86.25
50+	₹13.71	₹685.50
150+	₹11.93	₹1,789.50
500+	₹10.60	₹5,300.00
2,500+	₹9.54	₹23,850.00
4,000+	₹9.01	₹36,040.00

Quantity (min 5, multiples of 5)

5 × ₹17.25

₹86.25

excl. GST

₹101.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TL062CDR(LX)

₹86.25 for 5 + GST

Specifications

Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 3.5V/us
Input Offset Current(Ios): 200pA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 400pA
Common Mode Rejection Ratio(CMRR): 86dB
Input Offset Voltage Drift(Vos TC): 10uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 250uA
Features: Built-in compensation
Input Voltage Noise Density: 42nV/√Hz@1kHz
Dual Supply: -18V~18V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.175 g

Overview

This series is the low-power version of the 084 series op-amps, belonging to the high-speed JFET-input op-amp family. It integrates well-matched high-voltage JFETs and bipolar transistors on a single monolithic chip, featuring high input impedance, high unity-gain bandwidth, high slew rate, low input offset voltage, and low input bias current.

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	TL072CDR(LX)#C49396713lingxingic · SOP-8	lingxingic	SOP-8	3,055	₹12.67 · 3,055 in stock	View
	TL082CDR(LX)#C49396715lingxingic · SOP-8	lingxingic	SOP-8	3,200	₹12.67 · 3,200 in stock	View
