HGSEMIDatasheet (PDF)

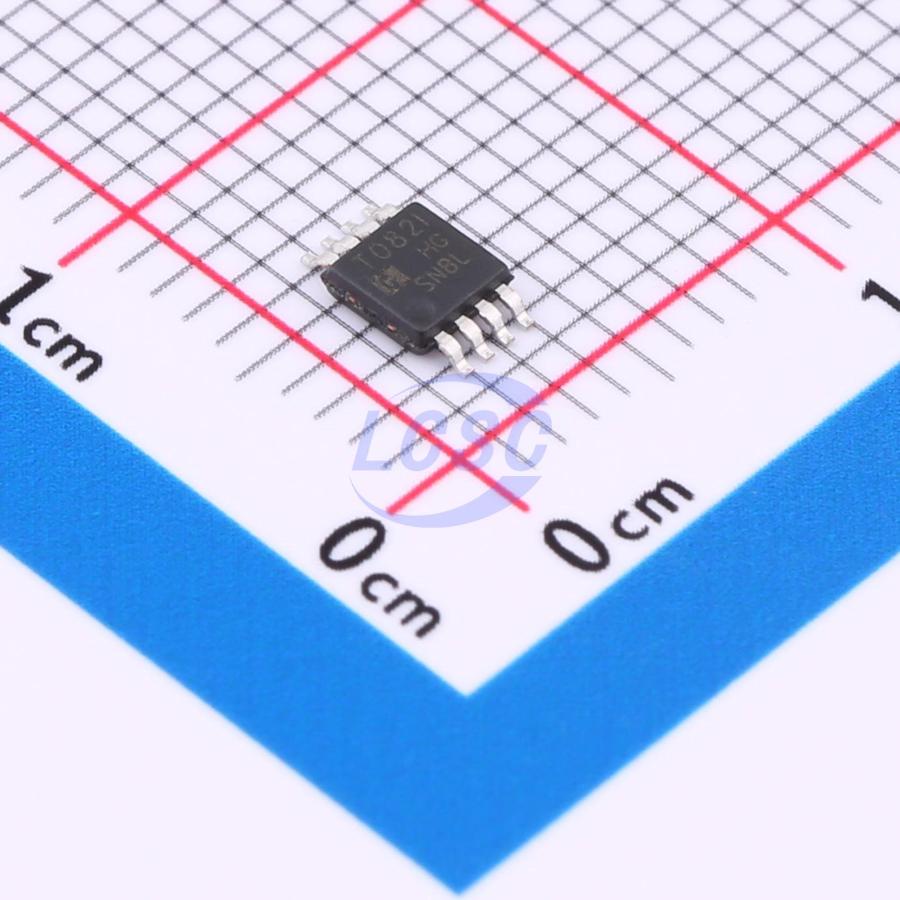

TL082IMM/TR
Standard (General Purpose) Amplifier 2 Circuit MSOP-8
MSOP-8RoHSActive
General-purpose dual operational amplifier with J-FET input
- Manufacturer
- HGSEMI
- Manufacturer part #
- TL082IMM/TR
- Store part #
- C19193429
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,765 in stock
#C19193429
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.01 | ₹110.05 |
| 50+ | ₹17.08 | ₹854.00 |
| 150+ | ₹14.96 | ₹2,244.00 |
| 500+ | ₹12.32 | ₹6,160.00 |
| 3,000+ | ₹11.14 | ₹33,420.00 |
| 6,000+ | ₹10.44 | ₹62,640.00 |
5 × ₹22.01
₹110.05
excl. GST
₹129.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL082IMM/TR
₹110.05 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 1.5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 2.5nA
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.186 g
Overview
The TL082 is a high-speed J-FET input dual operational amplifier constructed with high-voltage J-FETs and bipolar transistors. It features a high slew rate, low input bias current and offset current, and very low offset voltage temperature coefficient. Operating temperature ranges are 0°C to 70°C for TL082C and -40°C to 85°C for TL082I. The TL082 is available in DIP-8, SOP-8, and MSOP-8 packages.
Key features
- Low power consumption
- Wide common-mode and differential-mode input voltage range
- Low input bias and offset current
- Output short-circuit current protection
- High input impedance
- High slew rate
- High gain-bandwidth product, up to 4MHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TSV772MM/TR-HG#C54430052HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | On request | Price on request | Quote |
 | TSV7722MM/TR-HG#C54430053HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | On request | Price on request | Quote |
 | OPA2322MM/TR-HG#C54430055HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | On request | Price on request | Quote |
 | HGV8052MM/TR#C7432257HGSEMI · MSOP-8 | HGSEMI | MSOP-8 | 2,248 | ₹47.15 · 2,248 in stock | View |
