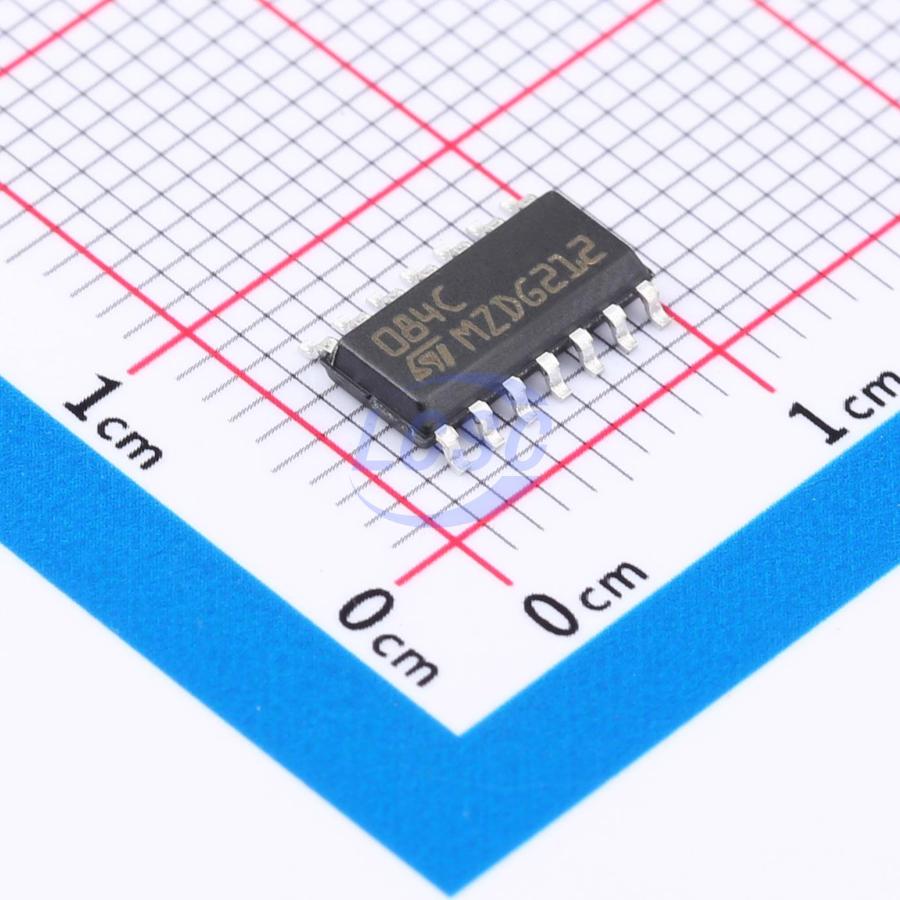

TL084CD
40mA 4 10mV 16V/us 200pA 86dB 4MHz 1.4mA SO-14 Instrumentation, Op Amps, Buffer Amps RoHS
SO-14ROHS3 CompliantActive
General purpose JFET quad operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- TL084CD
- Store part #
- C5337237
- Package / case
- SO-14
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,028 in stock
#C5337237
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹47.44 | ₹47.44 |
| 10+ | ₹41.04 | ₹410.40 |
| 50+ | ₹38.26 | ₹1,913.00 |
| 100+ | ₹34.83 | ₹3,483.00 |
| 500+ | ₹33.34 | ₹16,670.00 |
| 1,000+ | ₹32.27 | ₹32,270.00 |
1 × ₹47.44
₹47.44
excl. GST
₹55.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
TL084CD
₹47.44 for 1 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 10mV
- Slew Rate
- 16V/us
- Input Offset Current(Ios)
- 4nA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 200pA
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Gain Bandwidth Product
- 4MHz
- Quiescent Current
- 1.4mA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Dual Supply
- -18V~18V
- Single Supply
- 6V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.8 g
Overview
TL084I, TL084AI, TL084BI, TL084C, TL084AC, and TL084BC are high-speed JFET-input quad operational amplifiers incorporating well-matched high-voltage JFETs and bipolar transistors integrated on a single monolithic IC. These devices feature high slew rate, low input bias and offset currents, output short-circuit protection, and high input impedance.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL084CM/TR#C5310776HGSEMI · SOP-14 | HGSEMI | SOP-14 | 1,270 | ₹36.50 · 1,270 in stock | View |
 | TL084IM/TR#C7432341HGSEMI · SOP-14 | HGSEMI | SOP-14 | 940 | ₹38.00 · 940 in stock | View |
 | LM6154BCMX/NOPB#C2060214TI · SOIC-14 | TI | SOIC-14 | 10 | ₹2,196.02 · 10 in stock | View |
 | TL3474IDR#C82953TI · SOIC-14 | TI | SOIC-14 | 146 | ₹131.08 · 146 in stock | View |
 | TL084CDTR(XBLW)#C18723618XBLW · SOP-14 | XBLW | SOP-14 | 230 | ₹26.53 · 230 in stock | View |
