TIDatasheet (PDF)

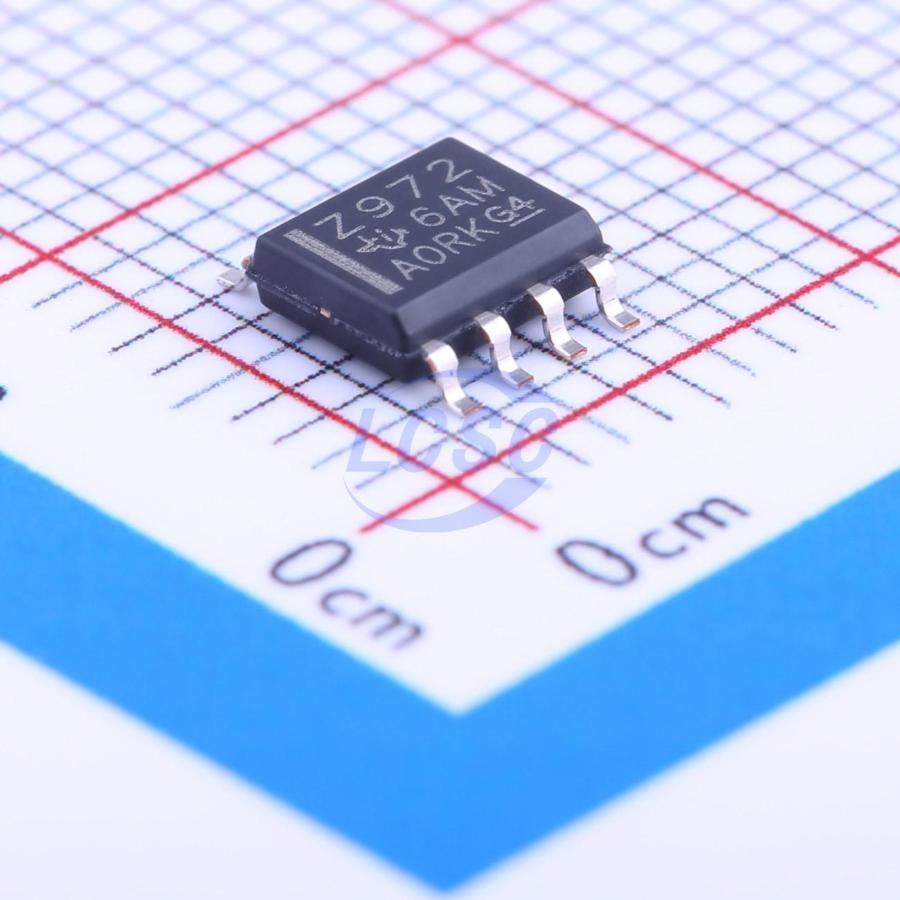

TL972IDR
1.4mA 2 6mV 12V/us 85dB 1uA 2.8mA 12MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Output Rail-To-Rail Very-Low-Noise Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- TL972IDR
- Store part #
- C46127
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,508 in stock
#C46127
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.46 | ₹137.46 |
| 10+ | ₹110.27 | ₹1,102.70 |
| 30+ | ₹96.79 | ₹2,903.70 |
| 100+ | ₹83.31 | ₹8,331.00 |
| 500+ | ₹68.31 | ₹34,155.00 |
| 1,000+ | ₹63.95 | ₹63,950.00 |
1 × ₹137.46
₹137.46
excl. GST
₹162.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL972IDR
₹137.46 for 1 + GST
Specifications
- Output Current
- 1.4mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 12V/us
- Input Offset Current(Ios)
- 150nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 1uA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 2.8mA
- Gain Bandwidth Product
- 12MHz
- Input Voltage Noise Density
- 4nV/√Hz@100kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.104 g
Overview
The TL97x family of single, dual, and quad operational amplifiers operates at voltages as low as ±1.35 V and features output rail-to-rail signal swing. The TL97x boast characteristics that make them particularly well suited for portable and battery-supplied equipment. Very low noise and low distortion characteristics make them ideal for audio preamplification. The TL971 is housed in the space-saving 5-pin SOT23 package, which simplifies board design because of the ability to be placed anywhere (outside dimensions are 2.8 mm × 2.9 mm).
Applications
- Portable Equipment
- Music Players
- Tablets
- Cell Phones
- Instrumentation and Sensors
- Professional Audio Circuits
Key features
- Rail-to-Rail Output Voltage Swing: ±2.4 V at VCC = ±2.5 V
- Very Low Noise Level: 4 nV/√Hz
- Ultra-Low Distortion: 0.003%
- High Dynamic Features: 12 MHz, 5 V/μs
- Operating Range: 2.7 V to 12 V
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22: 2000-V Human-Body Model, 1500-V Charged-Device Model
