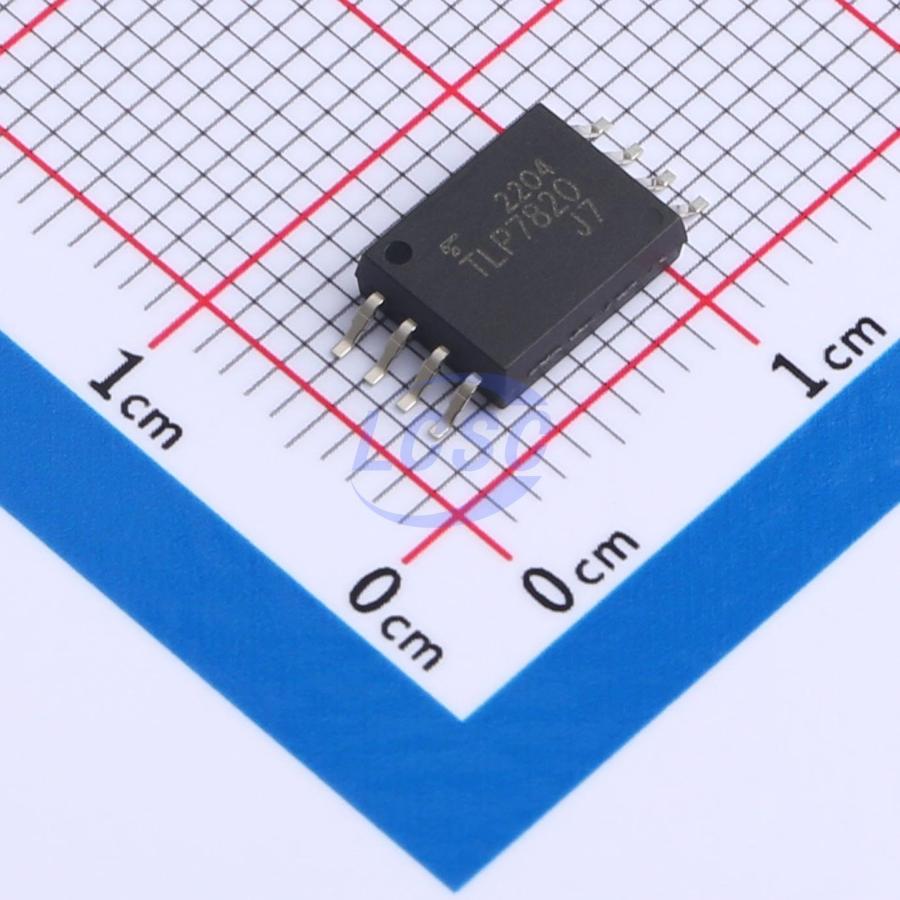

TLP7820(TP4,E
8.16~8.24 15kV/us 900uV 80dB 55nA SOIC-8 Instrumentation, Op Amps, Buffer Amps
SOIC-8RoHSActive
Photocouplers Optically Isolation Amplifiers
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TLP7820(TP4,E
- Store part #
- C2978064
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,139 in stock
#C2978064
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹546.50 | ₹546.50 |
| 10+ | ₹470.67 | ₹4,706.70 |
| 30+ | ₹425.69 | ₹12,770.70 |
| 100+ | ₹341.16 | ₹34,116.00 |
| 500+ | ₹320.30 | ₹1,60,150.00 |
| 1,500+ | ₹310.75 | ₹4,66,125.00 |
1 × ₹546.50
₹546.50
excl. GST
₹644.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
TLP7820(TP4,E
₹546.50 for 1 + GST
Specifications
- Voltage - Supply(Output)
- 3V~5.5V
- output type
- Differential
- Gain
- 8.16~8.24
- CMTI(kV/us)
- 15kV/us
- Vos - Input Offset Voltage
- 900uV
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 55nA
- Isolation Voltage(Vrms)
- 5000
- Voltage - Supply(Input)
- 4.5V~5.5V
- -3dB Bandwidth
- 230kHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.55 g
Overview
The TLP7820 of isolation amplifiers is designed for current sensing in electronic motor drives. In a typical implementation, motor currents flow through an external resistor and the resulting analog voltage drop is sensed by the TLP7820.
Applications
- Motor phase and rail current sensing
- Power inverter current and voltage sensing
Key features
- Gain accuracy: ±0.5 % (Gain rank B)
- Gain drift: 0.00012 V/V/°C (typ.)
- Nonlinearity (VIN = ±200 mV): 0.02 % (typ.)
- Input offset voltage: 0.9 mV (typ.)
- VOUT bandwidth (-3 dB): 230 kHz (typ.)
- Operating temperature range: -40 to 105 °C
- Common-mode transient immunity: 15 kV/μs (min)
- Safety standards UL-recognized: UL 1577, File No.E67349 cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349 VDE-approved: EN 60747-5-5, EN 62368-1 CQC-approved: GB4943.1, GB8898 Japan Factory
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLP7820(LF4,E#C1348248TOSHIBA · SO-8 | TOSHIBA | SO-8 | 5 | ₹1,547.41 · 5 in stock | View |
 | TLP7820(D4-TP4,E#C2991191TOSHIBA · SO-8L | TOSHIBA | SO-8L | 1,111 | ₹464.68 · 1,111 in stock | View |
 | Pai8300E-W5R#C196739302Pai Semi · SOIC-8 | 2Pai Semi | SOIC-8 | 847 | ₹208.58 · 847 in stock | View |
 | ACPL-C79B-500E#C691943Broadcom · SO-8 | Broadcom | SO-8 | 2,372 | ₹477.06 · 2,372 in stock | View |
 | TPA8001-SOAR#C378913943PEAK · WSOP-8 | 3PEAK | WSOP-8 | 299 | ₹160.67 · 299 in stock | View |
