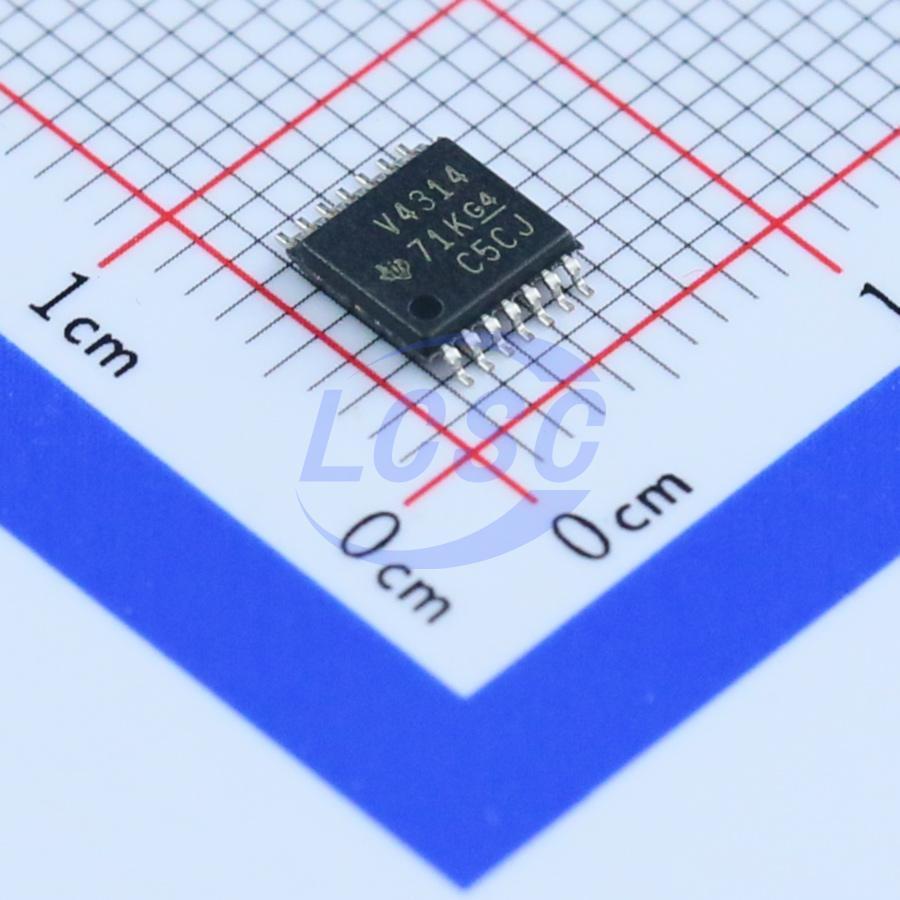

TLV4314IPWR

Standard (General Purpose) Amplifier 4 Circuit Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14

TSSOP-14ROHS3 CompliantActive

3MHz, low-power, internal EMI filter, RRIO operational amplifier

Manufacturer: TI
Manufacturer part #: TLV4314IPWR
Store part #: C106874
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,015 in stock

#C106874

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹89.71	₹89.71
10+	₹71.68	₹716.80
30+	₹62.78	₹1,883.40
100+	₹53.87	₹5,387.00
500+	₹48.44	₹24,220.00
1,000+	₹45.62	₹45,620.00

Quantity (min 1)

1 × ₹89.71

₹89.71

excl. GST

₹105.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

TLV4314IPWR

₹89.71 for 1 + GST

Specifications

Output Current: 20mA
Number of Channels: 4
Vos - Input Offset Voltage: 750uV
Slew Rate: 1.5V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 75dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 250uA
Gain Bandwidth Product: 3MHz
Features: EMI filtering/RF suppression;ESD protection
Input Voltage Noise Density: 16nV/√Hz@1kHz
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.204 g

Overview

The TLV314 family of single, dual, and quad op amps represents a new generation of low-power, general-purpose op amps. This family features rail-to-rail input and output swing (RRIO), low quiescent current (typical 150μA per channel at 5V), and high bandwidth of 3MHz, making it ideal for applications requiring a balance between cost and performance. In addition, the TLV314 family architecture achieves input bias current as low as 1pA, making it suitable for applications with source impedances up to the megaohm range. The TLV314 devices are designed for robustness and ease of use: unity-gain stable, with RRIO and integrated RF/EMI rejection filter, capacitive load drive up to 300pF, no phase inversion under overdrive conditions, and high ESD protection (4kV HBM). These devices are optimized for low-voltage operation from 1.8V (±0.9V) to 5.5V (±2.75V) and are rated for operation over the extended industrial temperature range of -40°C to +125°C.

Applications

White goods
Handheld test equipment
Portable blood glucose meters
Remote sensing
Active filters
Industrial automation battery-powered electronics

Key features

Low offset voltage: 0.75mV (typical)
Low input bias current: 1pA (typical)
Wide supply voltage range: 1.8V to 5.5V
Rail-to-rail input and output
Gain bandwidth: 3MHz
Low IQ: 250μA/channel (maximum)
Low noise: 16nV/√Hz at 1kHz
Internal RF/EMI filter
Extended temperature range: -40°C to +125°C
