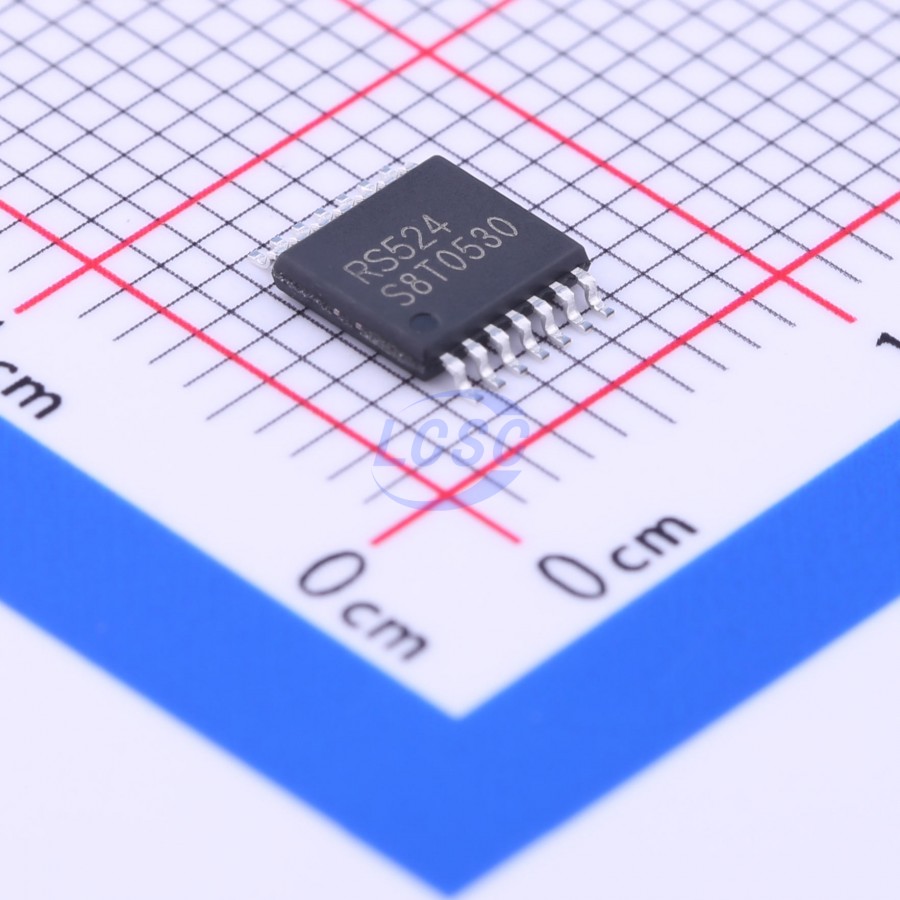

RS524XQ

7mA 4 800uV 1.8V/us 1pA 87dB 260uA 3.6MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps

TSSOP-14RoHSActive

Rail-to-Rail I/O CMos Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS524XQ
Store part #: C255457
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,667 in stock

#C255457

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹90.64	₹90.64
10+	₹67.66	₹676.60
30+	₹57.89	₹1,736.70
100+	₹45.54	₹4,554.00

Quantity (min 1)

1 × ₹90.64

₹90.64

excl. GST

₹106.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS524XQ

₹90.64 for 1 + GST

Specifications

Output Current: 7mA
Number of Channels: 4
Vos - Input Offset Voltage: 800uV
Slew Rate: 1.8V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 87dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 260uA
Gain Bandwidth Product: 3.6MHz
Input Voltage Noise Density: 15nV/√Hz@1kHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.14 g

Overview

C HIGH GAIN BANDWIDTH:3.6MHz RAIL-TO-RAIL INPUT AND OUTPUT 0.8mv Typical Vos INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V SUPPLY RANGE: +2.5V to +5.5V SHUTDOWN: RS521S/RS522S SPECIFIED UP TO ±125°C MicroSIZE PACKAGES: SOT23-5, SOT23-6 The RS52X families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (3.6MHz) and slew rate of 1.8V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS521S, RS522S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA.The RS52X families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT DRIVING A/D CONVERTERS
Sensor interfaces
Portable applications

Key features

HIGH GAIN BANDWIDTH: 3.6MHz
RAIL-TO-RAIL INPUT AND OUTPUT
0.8mv Typical Vos
INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V
SUPPLY RANGE: +2.5V to +5.5V
SHUTDOWN: RS521S/RS522S
SPECIFIED UP TO ±125°C
MicroSIZE PACKAGES: SOT23-5, SOT23-6
Low voltage operation
Excellent speed/power consumption ratio
Unity gain stable
Ultra-low input bias current
Include a shutdown mode
Standby current less than 1uA
