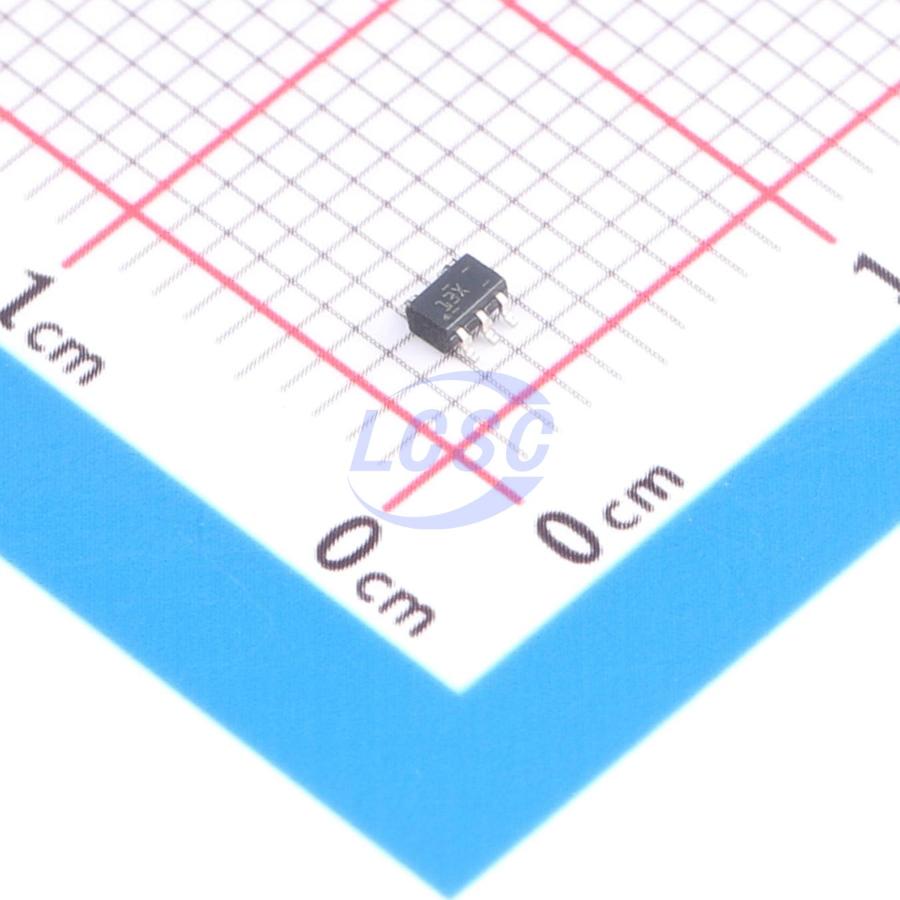

TLV6001IDCKR

The TLV600x series of single-channel, dual-channel, and quad-channel operational amplifiers are specifically designed for general-purpose applications. Devices in this series feature rail-to-rail input and output (RRIO) swing, low quiescent current (typical: 75 μA), high bandwidth (1 MHz), and low noise (28 nV/√Hz at 1 kHz). These characteristics make them highly attractive for applications that require a good balance between cost and performance, such as consumer electronics, smoke detectors, and white goods. The TLV600x has low input bias current (typical: ±1.00 A), making it suitable for applications with source impedances up to the megaohm range. The device is unity-gain stable with capacitive loads up to 150 pF and integrates an RF/EMI rejection filter. It does not invert under overdrive conditions and has high electrostatic discharge (ESD) protection (4 kV human-body model (HBM)). These devices are optimized to operate at low voltages from 1.8 V (±0.9 V) to 5.5 V (±2.75 V) and are rated to operate over a temperature range of -40°C to 125°C.

Applications

• Industrial and consumer electronics
• Portable devices
• Portable blood glucose meter systems
• Smoke detectors
• White goods mobile power supplies

Key features

• Precision amplifier for cost-sensitive systems
• Low quiescent current: 75μA/channel
• Supply voltage range: 1.8V to 5.5V
• Input voltage noise density: 28nV/√Hz at 1kHz
• Rail-to-rail input and output
• Gain bandwidth: 1MHz
• Low input bias current: 1pA
• Low offset voltage: 0.75mV
• Unity-gain stable
• Internal RF and EMI filter
• Operating temperature range: -40°C to +125°C
