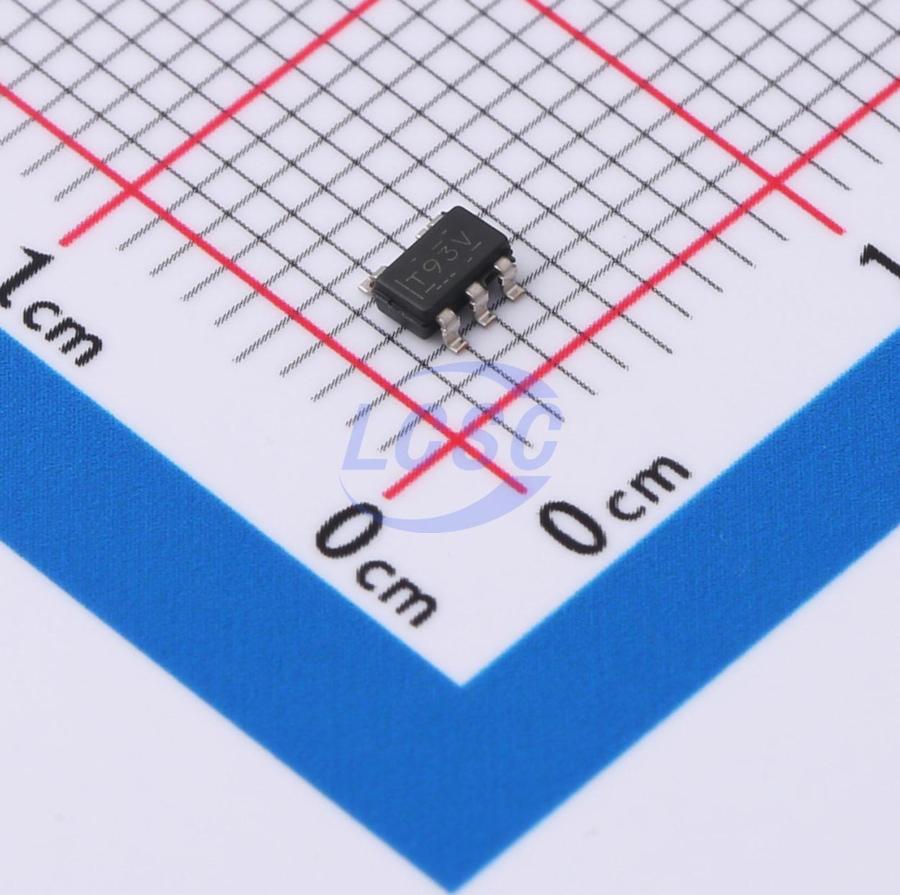

TLV9301IDBVR

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Output SOT-23-5

SOT-23-5ROHS3 CompliantActive

40V, 1MHz, RRO operational amplifier suitable for cost-sensitive systems

Manufacturer: TI
Manufacturer part #: TLV9301IDBVR
Store part #: C2867945
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,044 in stock

#C2867945

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹57.68	₹57.68
10+	₹45.54	₹455.40
30+	₹39.69	₹1,190.70
100+	₹34.48	₹3,448.00
500+	₹32.96	₹16,480.00
1,000+	₹32.10	₹32,100.00

Quantity (min 1)

1 × ₹57.68

₹57.68

excl. GST

₹68.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV9301IDBVR

₹57.68 for 1 + GST

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 3V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 150uA
Gain Bandwidth Product: 1MHz
Features: EMI filtering/RF suppression;ESD protection
Input Voltage Noise Density: 33nV/√Hz@1kHz
Dual Supply: -20V~-2.25V;2.25V~20V
Rail to Rail: Rail-to-rail output
Single Supply: 4.5V~40V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.054 g

Overview

The TLV930x series is a 40V cost-optimized operational amplifier series. These devices feature excellent general DC and AC specifications, including rail-to-rail output, low offset voltage (±0.5mV typical), low temperature drift (±2μV/°C typical), and 1MHz bandwidth. The convenient features of the TLV930x, such as a wide differential input voltage range, high output current (±60mA), and high slew rate (3V/μs), make it a reliable operational amplifier suitable for high-voltage cost-sensitive applications. The TLV930x series operational amplifiers come in standard packages and are rated for an operating temperature range of –40°C to 125°C.

Applications

Commercial networking and server PSU
Industrial AC-DC
Commercial DC/DC
Motor drives: AC and servo drive power supplies
Building automation
Single-pole low-pass filter

Key features

Low offset voltage: ±0.5mV
Low offset voltage drift: ±2μV/°C
Low noise: 33nV/√Hz at 1kHz
High common-mode rejection: 110dB
Low bias current: ±10pA
Rail-to-rail output
High bandwidth: 1MHz GBW
High slew rate: 3V/μs
Low quiescent current: 150μA per amplifier
Wide supply voltage: ±2.25V to ±20V, 4.5V to 40V
Robust EMI performance: 72dB at 1GHz
Multiplexer/comparator-ready inputs: differential and common-mode input voltage range extends to supply rails
Industry-standard packages: SOT-23-5 and SC70 single packages; SOIC-8, TSSOP-8, and VSSOP-8 dual packages; quad supply versions in SOIC-14 and TSSOP-14 packages
