3PEAKDatasheet (PDF)

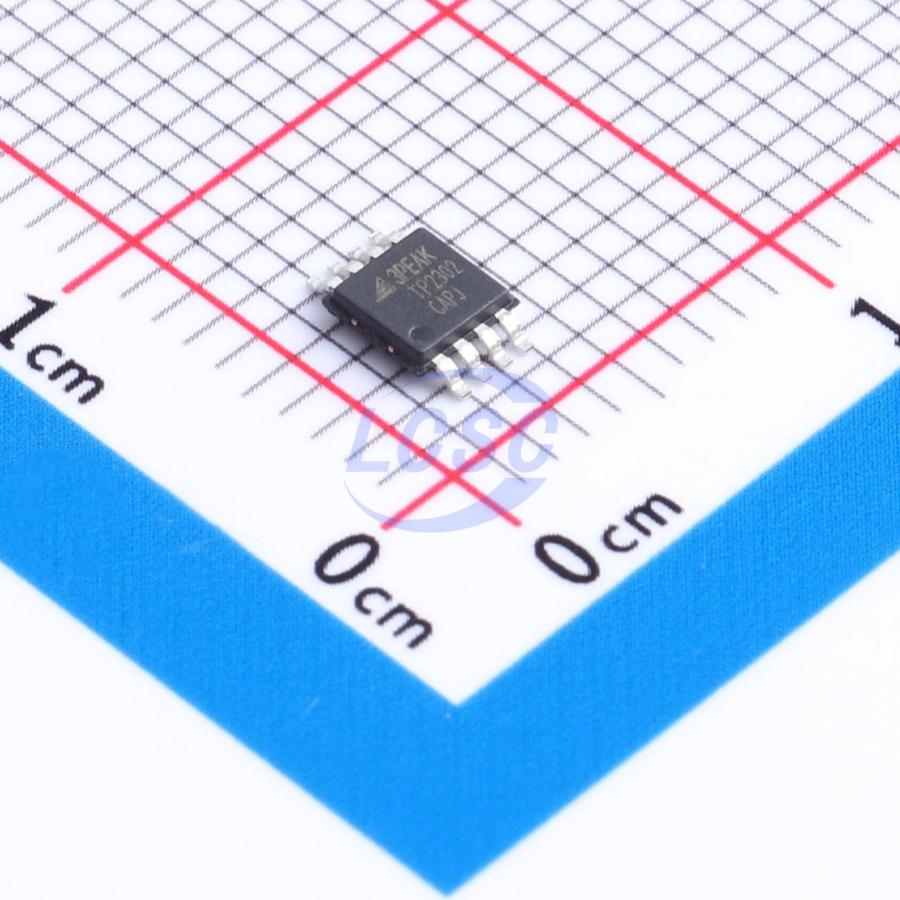

TP2302-VR
130mA 2 7uV 25V/us 0.3pA 100dB 3.5mA 20MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TP2302-VR
- Store part #
- C2923678
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,692 in stock
#C2923678
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.16 | ₹123.16 |
| 10+ | ₹97.36 | ₹973.60 |
| 30+ | ₹84.34 | ₹2,530.20 |
| 100+ | ₹71.56 | ₹7,156.00 |
| 500+ | ₹63.97 | ₹31,985.00 |
| 1,000+ | ₹59.85 | ₹59,850.00 |
1 × ₹123.16
₹123.16
excl. GST
₹145.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP2302-VR
₹123.16 for 1 + GST
Specifications
- Output Current
- 130mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 7uV
- Slew Rate
- 25V/us
- Input Offset Current(Ios)
- 0.001pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.3pA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Quiescent Current
- 3.5mA
- Gain Bandwidth Product
- 20MHz
- Features
- ESD protection
- Input Voltage Noise Density
- 7.3nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.053 g
Overview
The TP2301 series products are very high precision amplifiers featuring very low noise, low offset voltage, high bandwidth, low input bias current and low temperature drift making them the ideal choice for applications requiring both high DC accuracy and AC performance. The combination of precision, low noise, and high bandwidth provides the user with outstanding value and flexibility relative to similar competitive parts.
Applications
- Sensor Signal Conditioning
- Consumer Audio
- Multi-Pole Active Filters
- Control-Loop Amplifiers
- Communications
- Security
- Scanners
- Precision active filters
- Medical and analytical instrumentation
- Precision power supply controls
- Industrial controls requiring high gains
Key features
- Gain-bandwidth Product: 20MHz
- Offset Voltage: 50 μV (max)
- Low Noise: 7.3 nV/√Hz (f = 1kHz)
- Slew Rate: 25 V/μs
- Low THD+N: 0.0005%
- Supply Range: 2.2V to 5.5V
- Supply Current: 3.5 mA/ch
- Low Input Bias Current: 0.3pA Typical
- Rail-to-Rail I/O
- High Output Current: 70mA (1.0V Drop)
- -40°C to 125°C Operation Range
