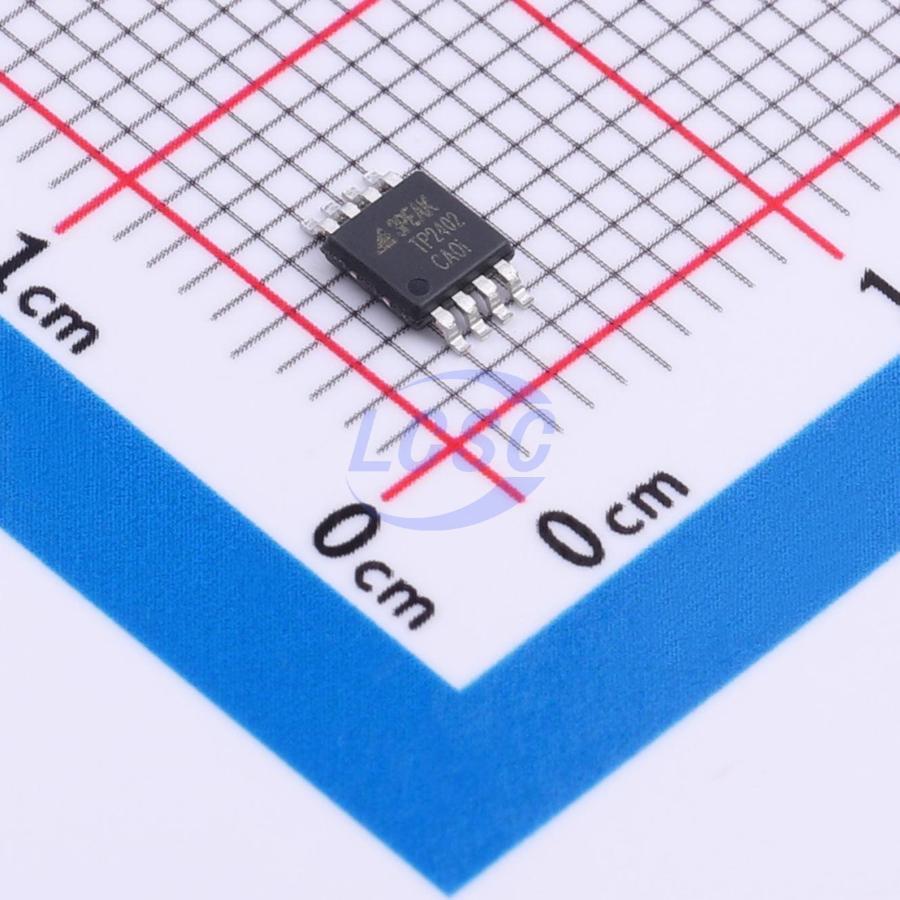

TP2402-VR

130mA 2 300uV 25V/us 0.3pA 100dB 3.5mA 20MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

Manufacturer: 3PEAK
Manufacturer part #: TP2402-VR
Store part #: C20611050
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,205 in stock

#C20611050

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹75.73	₹378.65
50+	₹58.30	₹2,915.00
150+	₹50.78	₹7,617.00
500+	₹41.32	₹20,660.00
3,000+	₹37.23	₹1,11,690.00
6,000+	₹34.65	₹2,07,900.00

Quantity (min 5, multiples of 5)

5 × ₹75.73

₹378.65

excl. GST

₹446.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP2402-VR

₹378.65 for 5 + GST

Specifications

Output Current: 130mA
Number of Channels: 2
Vos - Input Offset Voltage: 300uV
Slew Rate: 25V/us
Input Offset Current(Ios): 0.001pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 0.3pA
Common Mode Rejection Ratio(CMRR): 100dB
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 3.5mA
Gain Bandwidth Product: 20MHz
Features: ESD protection;EMI filtering/RF suppression;Reverse-phase input protection
Input Voltage Noise Density: 7.3nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.056 g

Overview

The TP240x series includes single, dual, and quad-channel CMOS op-amps featuring low noise and rail-to-rail input/output, optimized for low-power, single-supply applications. The devices operate over a wide supply voltage range of 2.2V to 5.5V, with a low quiescent current of only 3.5mA per channel, making them well-suited for power-sensitive applications. The combination of ultralow noise, high gain-bandwidth product, and fast slew rate makes them ideal for a wide range of applications such as signal conditioning and sensor amplification requiring high gain. Additionally, thanks to low THD+N characteristics, the series is also well-suited for consumer audio applications, particularly single-supply systems. The TP2401 is the single-channel version, available in 8-pin SOIC and 5-pin SOT23 packages. The TP2402 is the dual-channel version, available in 8-pin SOIC and MSOP packages. The TP2404 is the quad-channel version, available in 14-pin SOIC and TSSOP packages.
