TP4057

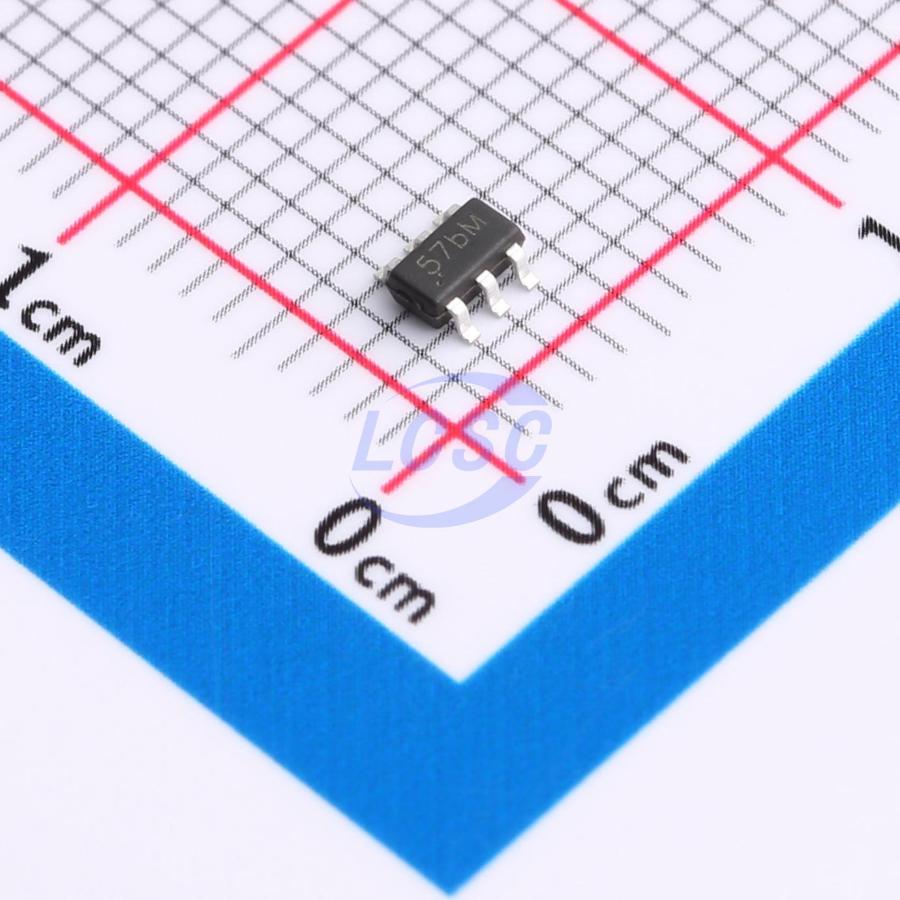

Battery Charging IC Lithium Battery SOT-23-6
Linear lithium-ion battery charger
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP4057
- Store part #
- C5380673
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,400 in stock
#C5380673
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.83 | ₹58.30 |
| 100+ | ₹5.13 | ₹513.00 |
| 300+ | ₹4.79 | ₹1,437.00 |
| 3,000+ | ₹4.52 | ₹13,560.00 |
| 6,000+ | ₹4.31 | ₹25,860.00 |
| 9,000+ | ₹4.21 | ₹37,890.00 |
10 × ₹5.83
₹58.30
excl. GST
₹68.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP4057
₹58.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 25uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Under-voltage lockout;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
The TP4057 is a high-performance single-cell lithium-ion battery constant-current/constant-voltage linear charger. Packaged in SOT23-6 with minimal external components, it is suitable for portable products and ideal for powering USB and adapter power supplies. Based on a specialized internal MOSFET architecture and reverse-charge protection circuit, no external sense resistors or isolation diodes are required. When the ambient temperature is too high or in high-power applications, thermal feedback adjusts the charging current to reduce the chip temperature. The charge voltage is fixed at 4.24V, while the charge current can be set externally via a single resistor. When the charge current drops to 1/10 of the programmed value after reaching the final float voltage, the chip terminates the charge cycle. When the input voltage is disconnected, the TP4057 enters sleep mode, reducing the battery leakage current to below 1uA. The TP4057 can be placed in shutdown mode, in which the quiescent current drops to 25uA. Additional features include: undervoltage lockout, automatic recharge, and two status pins to indicate charging and charge termination.
Applications
- Mobile phones
- PDAMP3
- MP4 players
- Chargers
- Digital cameras
- Electronic dictionaries
- Bluetooth
- GPS navigation devices
- Portable devices
Key features
- Programmable charge current up to 500mA
- No external MOSFET, sense resistor, or isolation diode required
- Complete linear charger for single-cell Li-Ion in SOT23-6 package
- Constant current/constant voltage operation with thermal regulation for maximum charge rate without risk of overheating
- 4.24V preset charge voltage with ±1% accuracy
- Charge current monitor output for battery fuel gauging
- Automatic recharge
- Dual charge status outputs with battery absent and fault status indication
- C/10 charge termination
- 25uA quiescent current in standby mode
- 2.9V trickle charge
- Soft-start to limit inrush current
- Reverse battery protection
- Battery undervoltage protection to enable charging
