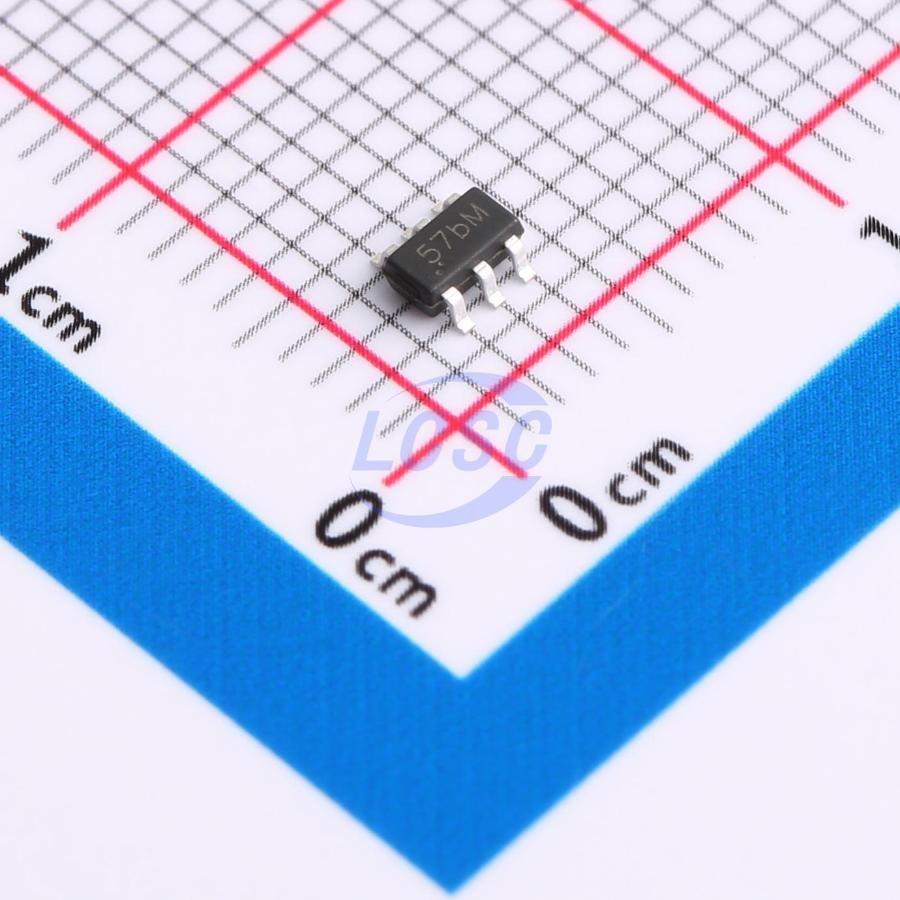

TP4057S6
Linear Charging IC Lithium Battery SOT-23-6
Linear lithium-ion battery charger
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP4057S6
- Store part #
- C5380674
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,910 in stock
#C5380674
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.75 | ₹97.50 |
| 100+ | ₹7.66 | ₹766.00 |
| 300+ | ₹6.62 | ₹1,986.00 |
| 3,000+ | ₹5.83 | ₹17,490.00 |
| 6,000+ | ₹5.21 | ₹31,260.00 |
| 9,000+ | ₹4.90 | ₹44,100.00 |
10 × ₹9.75
₹97.50
excl. GST
₹115.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP4057S6
₹97.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 25uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
TP4057S6 is a high-performance single-cell lithium-ion battery constant-current/constant-voltage linear charger. The SOT23-6 package with minimal external components makes it ideal for portable products and suitable for powering USB and adapter power supplies. Based on a special internal MOSFET architecture and anti-reverse charging circuit, no external sense resistor or isolation diode is required. When the ambient temperature is too high or in high-power applications, thermal feedback adjusts the charge current to reduce the chip temperature. The charge voltage is fixed at 4.24V, while the charge current can be set externally via a single resistor. When the charge current drops to 1/10 of the programmed value after reaching the final float voltage, the chip terminates the charge cycle. When the input voltage is disconnected, the device enters sleep mode and the battery leakage current drops below 1uA. It can also be set to shutdown mode, in which the chip quiescent current drops to 25uA. Additional features include: undervoltage lockout, automatic recharge, and two status pins indicating charge and charge termination.
Applications
- Mobile phones
- PDAMP3
- MP4 players
- Chargers
- Digital cameras
- Electronic dictionaries
- Bluetooth
- GPS navigation devices
- Portable devices
