3PEAKDatasheet (PDF)

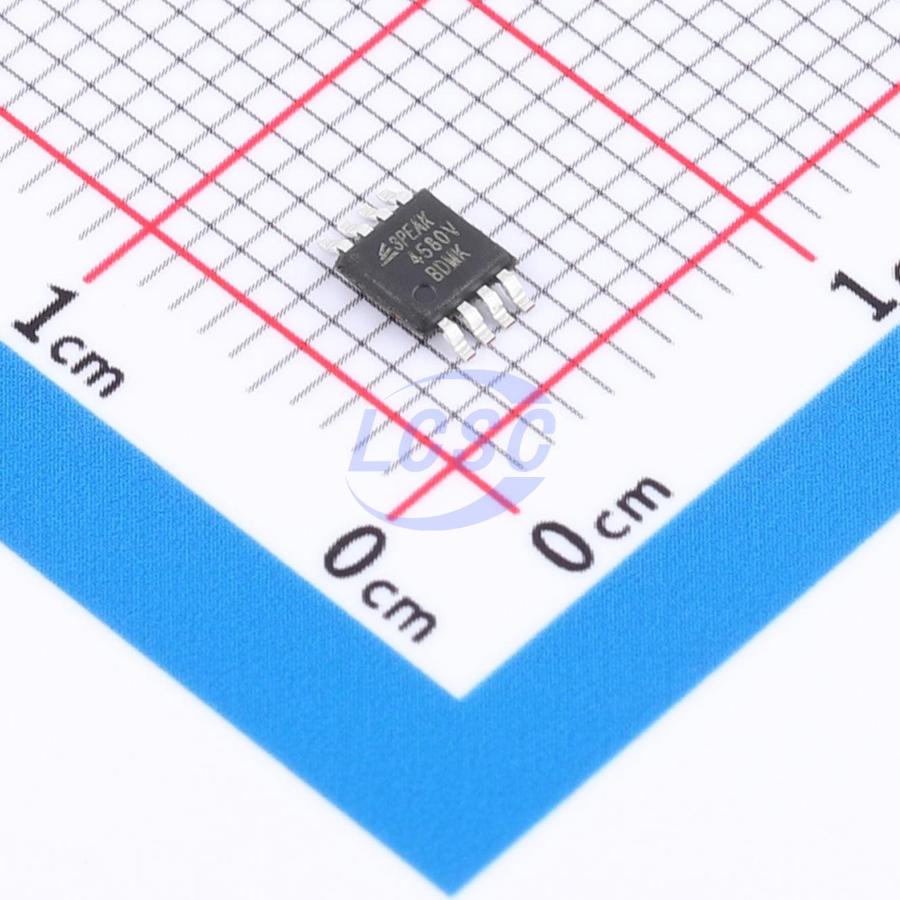

TP4580-VR
25mA 2 500uV 9V/us 110dB 1pA 2mA 12MHz Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps
MSOP-8RoHSSold out at source
Dual, Ultra-low Distortion, 36V RRO Op-amps
- Manufacturer
- 3PEAK
- Manufacturer part #
- TP4580-VR
- Store part #
- C7464156
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,735 in stock
#C7464156
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.65 | ₹258.25 |
| 50+ | ₹40.06 | ₹2,003.00 |
| 150+ | ₹34.16 | ₹5,124.00 |
| 500+ | ₹29.69 | ₹14,845.00 |
| 3,000+ | ₹26.24 | ₹78,720.00 |
| 6,000+ | ₹24.40 | ₹1,46,400.00 |
5 × ₹51.65
₹258.25
excl. GST
₹304.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP4580-VR
₹258.25 for 5 + GST
Specifications
- Output Current
- 25mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 1pA
- Quiescent Current
- 2mA
- Gain Bandwidth Product
- 12MHz
- Features
- ESD protection
- Input Voltage Noise Density
- 12nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Dual Supply
- -18V~-1.75V;1.75V~18V
- Single Supply
- 3.5V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
The TP4580 is a dual operational amplifier that has been designed optimally for audio applications. Featuring low noise, high gain bandwidth, low harmonic distortion, and high output current, all of which make the device ideally suited for acoustic audio electronics, such as audio preamplifiers and active filters, as well as industrial measurement equipment. Due to its wide operating supply voltage, the TP4580 also can be used in low-voltage applications.
Applications
- Professional Audio Equipments
- Pre-amplification and Filtering
- Transducer Amplifier
Key features
- Wide Supply Range: 3.5 V to 36 V or Dual-Supply ±1.75V to ±18 V
- Low Noise Voltage: 1.2 μVrms in audio band (TYP)
- High Slew Rate: 6 V/μs (TYP)
- Wide Bandwidth: 12 MHz (TYP)
- Ultra-low Distortion: 0.001% at 1 kHz (TYP)
- Rail-to-Rail Output
- Low Supply Current: 2mA per Amplifier
- -40°C to 125°C Operation Range
- Drop-In Replacement for NJM4580, RC4580
- Pin and Function Compatible With LM833, NE5532, NJM4558/9, and NJM4560/2/5
