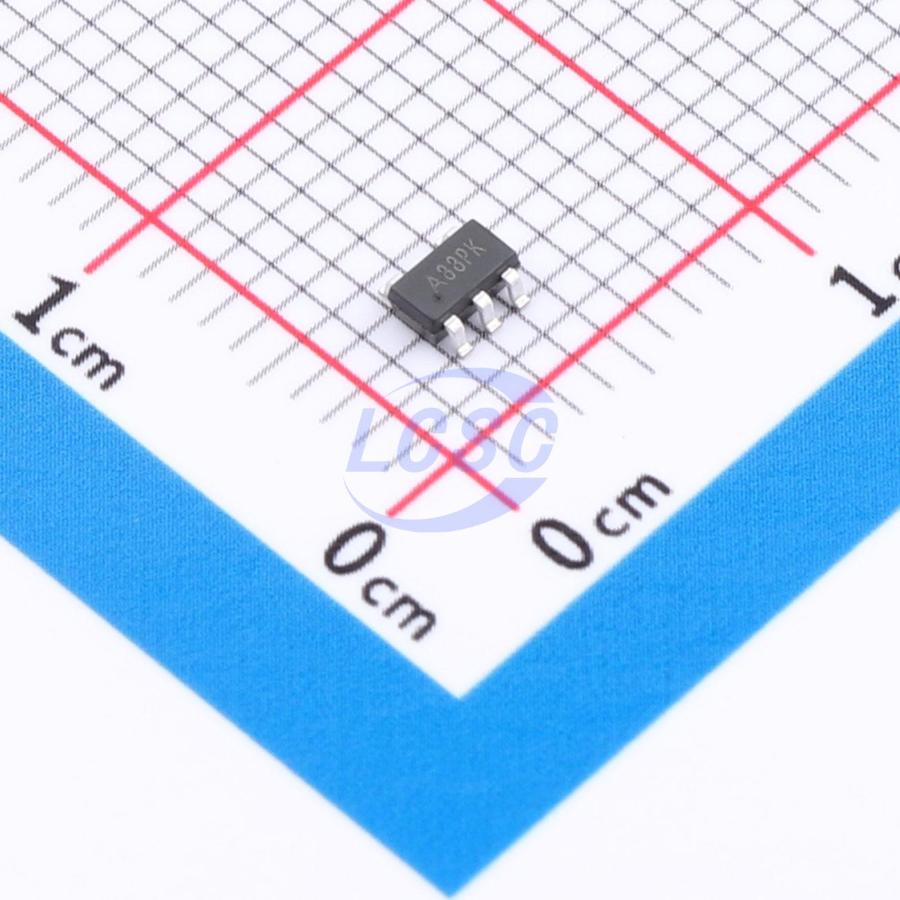

TPA1881-TR

95mA 1 15uV 12V/us 10pA 155dB 2mA 12MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

36V, 12MHz, Zero Drift Op Amps

Manufacturer: 3PEAK
Manufacturer part #: TPA1881-TR
Store part #: C2930535
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,840 in stock

#C2930535

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹346.04	₹346.04
10+	₹273.41	₹2,734.10
30+	₹236.99	₹7,109.70
100+	₹200.99	₹20,099.00
500+	₹179.53	₹89,765.00
1,000+	₹168.26	₹1,68,260.00

Quantity (min 1)

1 × ₹346.04

₹346.04

excl. GST

₹408.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPA1881-TR

₹346.04 for 1 + GST

Specifications

Output Current: 95mA
Number of Channels: 1
Vos - Input Offset Voltage: 15uV
Slew Rate: 12V/us
Input Offset Current(Ios): 100pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 155dB
Input Offset Voltage Drift(Vos TC): 150nV/℃
Quiescent Current: 2mA
Gain Bandwidth Product: 12MHz
Features: Zero drift / auto-zero;ESD protection
Input Voltage Noise Density: 6nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

The TPA188X series amplifiers are newest high supply voltage amplifiers with 15μv low offset, low noise and stable high frequency response. They incorporate proprietary and patented design techniques to achieve very good AC performance with 12MHz bandwidth, 12V/μs slew rate and low distortion while drawing only 2000μμμ of quiescent current per amplifier. The input common-mode voltage range extends to V-, and the outputs swing rail-to-rail. The TPA188X has over-temperature protection feature to guarantee the chip safe. The output of TPA188X will enter high impendence when die temperature reach around 170°C and will recover the function when the die temperature down to around 150°C. The product has very small temperature coefficient of power which is helpful for temperature sensitive application.
