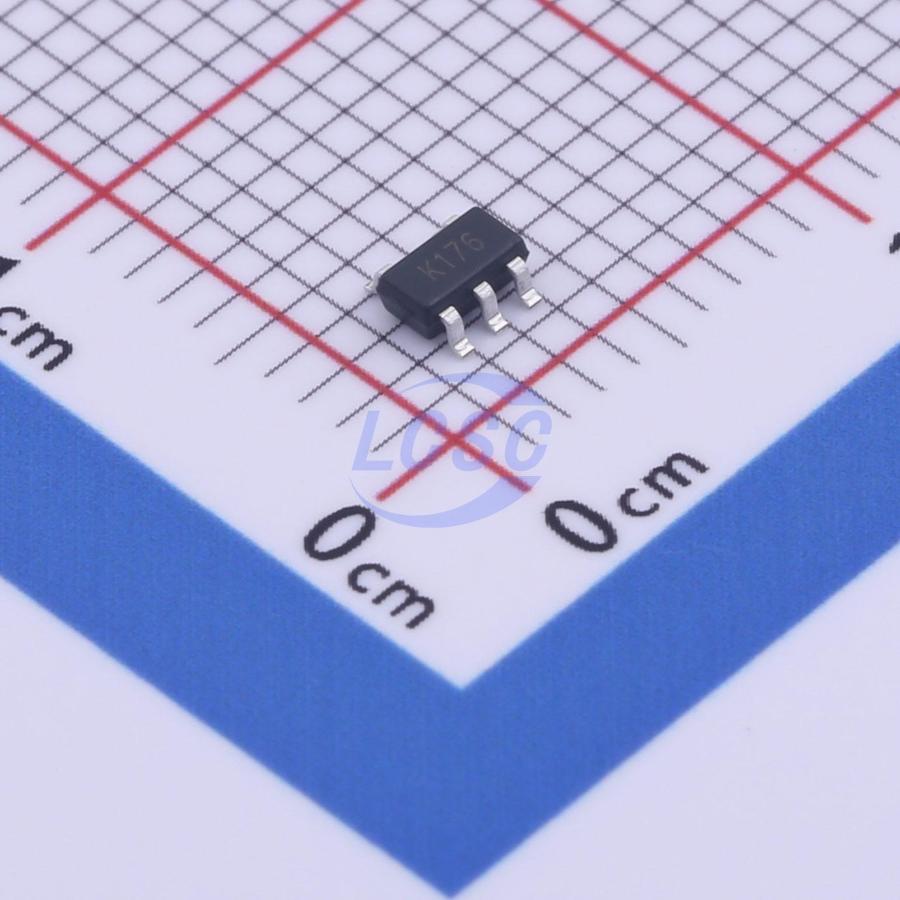

TPLMV321RILT
20mA 1 5mV 600V/ms 10pA 80dB 40uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
1MHZ CMOS Rail-to-Rail IO Opamp With RF Filter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPLMV321RILT
- Store part #
- C2841433
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,010 in stock
#C2841433
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.70 | ₹123.50 |
| 50+ | ₹19.69 | ₹984.50 |
| 150+ | ₹17.54 | ₹2,631.00 |
| 500+ | ₹14.86 | ₹7,430.00 |
| 3,000+ | ₹12.30 | ₹36,900.00 |
| 6,000+ | ₹11.58 | ₹69,480.00 |
5 × ₹24.70
₹123.50
excl. GST
₹145.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPLMV321RILT
₹123.50 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 10pA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 40uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 20nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
TPLMV321RILT is a rail-to-rail CMOS operational amplifier with ultra-low offset. Features include wide input common-mode voltage range and wide output voltage swing, operating supply voltage from 2.2V to 5.5V. The product is fully characterized over the extended temperature range of -40°C to +125°C.
Applications
- Portable devices
- Mobile communications
- Smoke detectors
- Sensor interfaces
- Medical instruments
- Battery-powered instruments
- Handheld test equipment
Key features
- Single-supply operation, voltage range: +2.2V ~ +5.5V
- Rail-to-rail input/output
- Gain bandwidth product: 1MHz (typical)
- Low input bias current: 10pA (typical)
- Low offset voltage: 5mV (maximum)
- Quiescent current: 40μA (typical)
- Operating temperature: -40°C ~ +125°C
- Available in SOT23-5 and SOP8 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV321WG#C20617306TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,110 | ₹10.23 · 3,110 in stock | View |
 | TPV321S5#C2827685TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,950 | ₹11.84 · 3,950 in stock | View |
 | TP321-TRG#C41408042TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 645 | ₹8.97 · 645 in stock | View |
 | LMV321M5X#C5122028TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,270 | ₹11.60 · 3,270 in stock | View |
 | LMV321ILT#C20617293TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,390 | ₹12.87 · 2,390 in stock | View |
