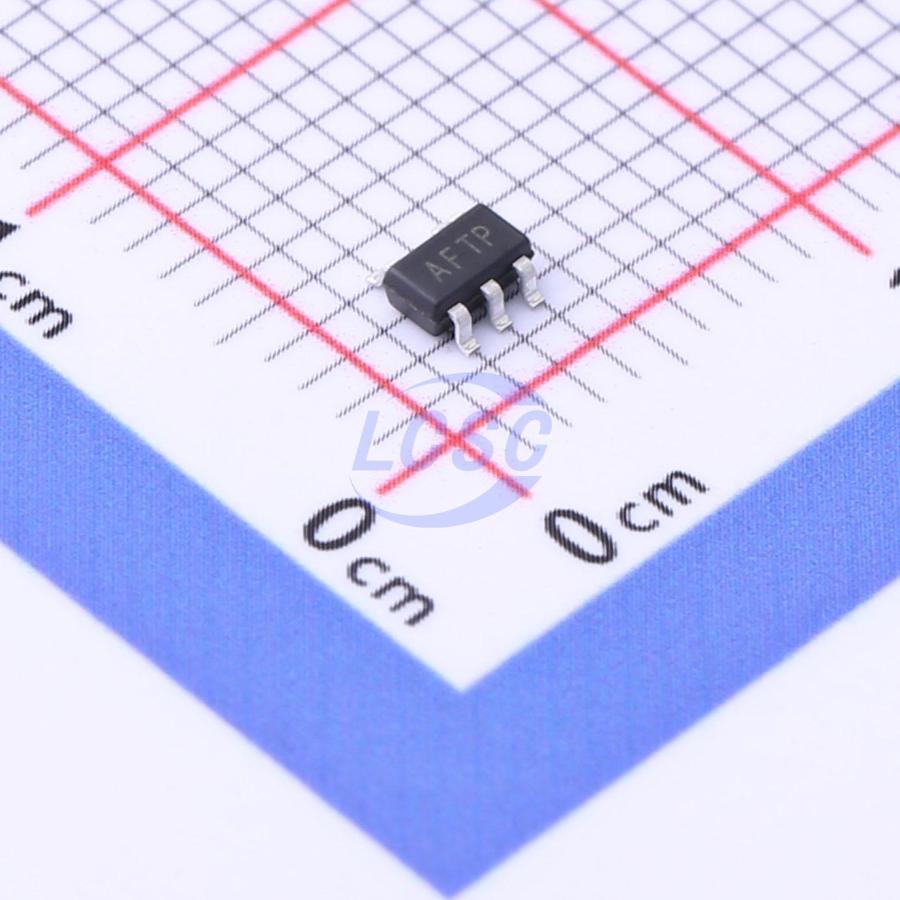

TPMCP6001UT-I/OT

20mA 1 5mV 4.5V/us 10pA 80dB 55uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

CMOS, Rail-to-Rail Operational Amplifier

Manufacturer: TECH PUBLIC
Manufacturer part #: TPMCP6001UT-I/OT
Store part #: C2940623
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,095 in stock

#C2940623

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹38.61	₹193.05
50+	₹30.79	₹1,539.50
150+	₹27.43	₹4,114.50
500+	₹23.23	₹11,615.00
3,000+	₹19.22	₹57,660.00
6,000+	₹18.11	₹1,08,660.00

Quantity (min 5, multiples of 5)

5 × ₹38.61

₹193.05

excl. GST

₹227.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPMCP6001UT-I/OT

₹193.05 for 5 + GST

Specifications

Output Current: 20mA
Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 4.5V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 80dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 55uA
Gain Bandwidth Product: 1MHz
Features: Enable/shutdown function
Input Voltage Noise Density: 30nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

This Production is a single supply, low power CMOS operational amplifier; these amplifiers offer bandwidth of 1MHz, rail-to-rail inputs and outputs, and single-supply operation from 1.8V to 5.5V. Typical low quiescent supply current of 55μA in one operational amplifier within one chip and very low input bias current of 10pA make the devices an ideal choice for low offset, low power consumption and high impedance applications such as smoke detectors, photodiode amplifiers, and other sensors. This Production is available in SOT23-5L packages. The extended temperature range of -40 °C to +125 over all supply voltages offers additional design flexibility.

Applications

Portable Equipment
Smoke Detector
Medical Instrumentation
Battery-Powered Instruments
Mobile Communications
Sensor Interface
Handheld Test Equipment

Key features

Single-Supply Operation from +1.8V~+5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 1MHz (Typ.)
Low Input Bias Current: 10pA (Typ.)
Low Offset Voltage: 5mV (Max.)
Quiescent Current: 55μA per Amplifier (Typ.)
Operating Temperature: -40°C~+125°C
Available in SOT23-5L Packages
Shipping Qty :3000pcs/7inch Tape & Reel
