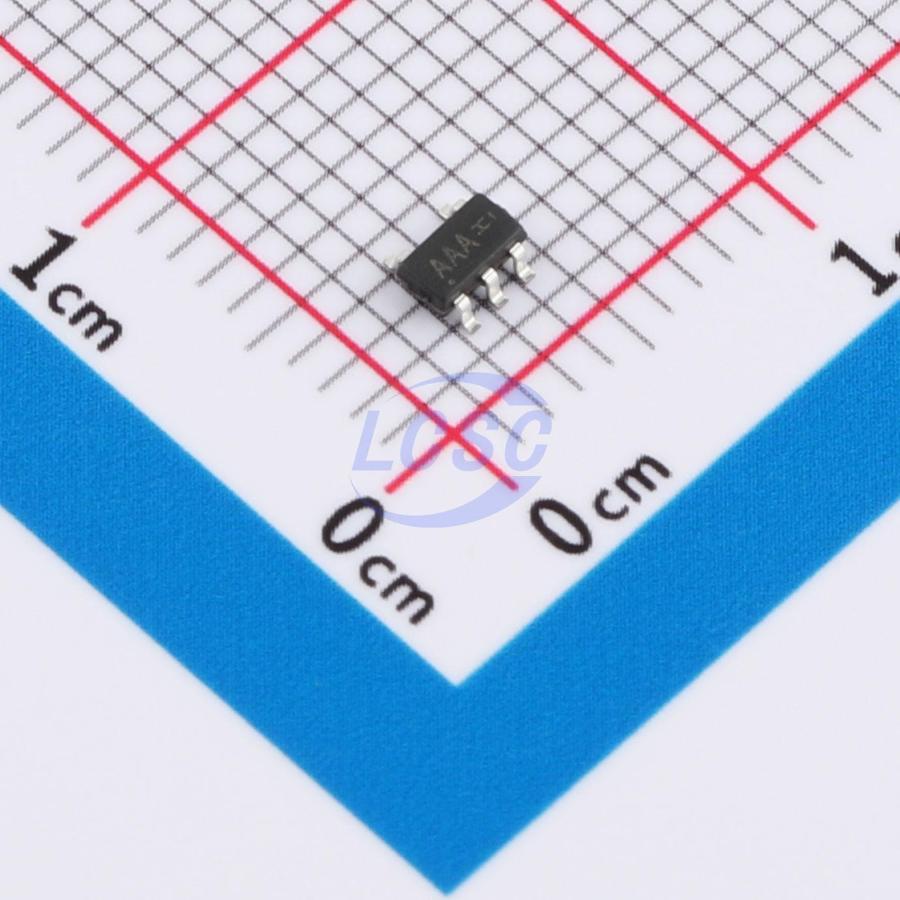

TPNCP51100ASNT1G
4.5V~18V 8A 4A SOT-23-5 Gate Drivers
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNCP51100ASNT1G
- Store part #
- C51939663
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C51939663
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.23 | ₹191.15 |
| 50+ | ₹29.90 | ₹1,495.00 |
| 150+ | ₹26.33 | ₹3,949.50 |
| 500+ | ₹21.87 | ₹10,935.00 |
| 3,000+ | ₹19.88 | ₹59,640.00 |
| 6,000+ | ₹18.69 | ₹1,12,140.00 |
5 × ₹38.23
₹191.15
excl. GST
₹225.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNCP51100ASNT1G
₹191.15 for 5 + GST
Specifications
- Input Logic Level - Low
- 1.2V
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~18V
- Operating Temperature
- 0℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 8A
- Rise Time
- 9ns
- Fall Time
- 7ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This device is a compact gate driver that serves as an excellent replacement for discrete NPN and PNP driver (buffer circuit) solutions. It is suitable for MOSFETs, IGBTs, and emerging wide-bandgap power devices such as GaN, making it ideal for high-speed applications. The asymmetric 4-A peak source current and 8-A peak sink current enhance immunity to parasitic Miller turn-on effects. Features including wide input hysteresis and negative input voltage handling improve transient noise immunity.
Applications
- DC-DC converters
- Desktop power supplies
- Switching mode power supplies
- Companion gate drivers for digital power controllers
- Gate drivers for emerging wide-bandgap power devices (e.g., GaN)
Key features
- 4.5~18-V single-supply range
- Output held low during VDD UVLO
- TTL and CMOS compatible input logic thresholds
- Output designed to remain low when input pins are floating
- Fast rise and fall times (typical 9ns and 7ns)
- Fast propagation delay (typical 13ns)
- Split-output configuration
- Strong sink current for enhanced Miller turn-on immunity
- Input pins withstand voltages -5 V below GND pin
- Compact package: SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FAN3100CSX-TP#C51939553TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,650 | ₹43.70 · 2,650 in stock | View |
 | FAN3111CSX-TP#C51939555TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,820 | ₹32.98 · 2,820 in stock | View |
 | IX4310TTR-TP#C51939583TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,635 | ₹49.48 · 1,635 in stock | View |
 | FAN3100TSX-TP#C51939554TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 30 | ₹49.48 · 30 in stock | View |
 | IRS44273LTRPBF-TP#C51939582TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,125 | ₹32.98 · 1,125 in stock | View |
